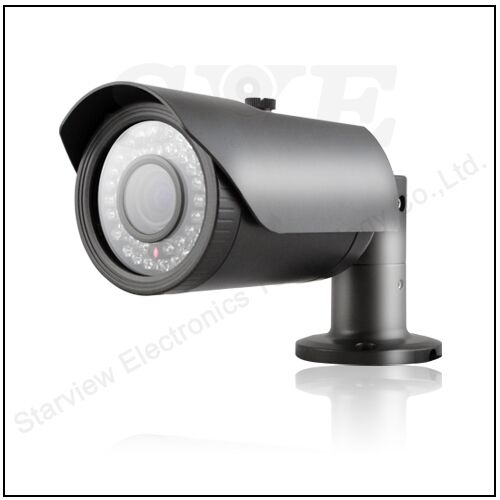

Outdoor 8MP Poe IP Network CCTV Waterproof Security Camera
Key Features
H.265/H.264 video compression
1/2.0" OS08A10 CMOS Sensor
High resolution up to 8MP (3840*2160@15fps)
Day/night IR-cut auto switch
Dual-stream encoding
ONVIF supports
Free CMS software and mobile app
2.8-12mm vari focal lens
42PCS,Ø5 LEDS,40M night vision
12V DC, PoE (power over Ethernet)
Outdoor IP66 weather rating
Download PDF
| Name | 8MP IP PoE Bullet camera(SVN-WH5800P) |
| VIDEO | |
| Sensor | 1/2.0" OS08A10 CMOS Sensor |
| Effective Pixels | 3840(H)*2160(V) |
| Video standards | H.265/H.264 video compression |
| Stream |
Main stream: 3840*2160 15fps, 2592*1944 25fps,1920*1080 25fps Sub stream: 1280x720 and 704x576 /25fps |
| Video bit | 0.1m-10Mpbs adjustable |
| Video format | H.265/H.264 high profile |
| System | 60/50Hz |
| Day and night | Auto with mechanical ICR |
| Min illumination | 0.01lux at (F1.2), 0.001lux with IR |
| Audio (optional) | |
| Compression format | G.711A 64K bit/seconds |
| Audio input/output | 1CH in, 1CH out |
| Bidirectional talk | Two-way voice intercom function |
| Network | |
| Protocols | TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DDNS, DynDNS, UPnP, RTP |
| Ethernet | 10/100 base-T, auto sensing, RJ-45, front LED indicator |
| Wireless | No |
| User group | 3 levels, unlimited users, max 10 users simulta |
| Diagnostics | Auto connectivity detection, auto restart |
| Lens | 2.8-12mm vari focal lens |
| IR LED | 42PCS,Ø5 LEDS, IRdistance 30-40M |
| General | |
| Power supply | 2V DC, PoE (802.3af) |
| Operating temperature | -20 to 60ºC |
| Humidity | 20-80% RH non-condensing |
