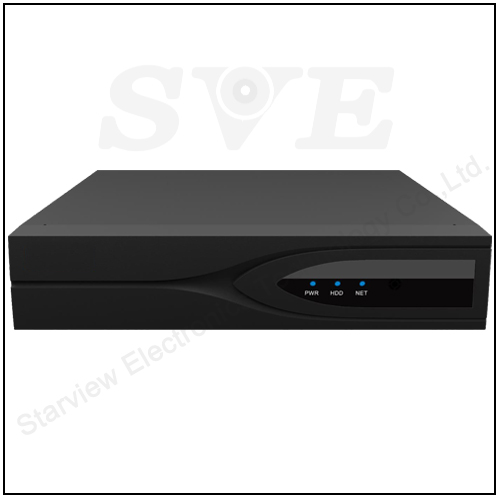

1CH SATA 4CH-16CH 4K H.265 NVR

NVR2200C Series
Model SV-NVR2204C-JN SV-NVR2208C-JN SV-NVR2216C-JN
OS Embedded Linux
Video&Audio input
Incoming bandwidth 40Mbps 80Mbps 80Mbps
Output bandwidth 80Mbps 80Mbps 80Mbps
IPC Input 4CH 8CH 16CH
Bidirectional Talk 1CH,RCA(Line in,2Vp-p,300ohms)
Video&Audio output
VGA 1CH,1920×1080,1280×1024,1280×720,1024×768
HDMI 1.4a,3840×2160,1920×1080,1280×1024,1280×720,1024×768
Audio Output 1CH,RCA(Line out,2Vp-p,300ohms)
Video&Audio encoding
Audio Compression G.711A
Audio Bit Rate 8Kbps(16bit)
Video&Audiodecoding
IP channel Resolution
Main stream:Up to 3840×2160,Auxiliary stream:D1
Video decoding
H.265(Main Profile@L5.0 High-tie)/ H.264 Up to High Profile@Level5.0)
Audio decoding G.711A,G711U,G726
Synchronous Playback 4CH 8CH 16CH
Decoding Ability 4CH 1080P@30FPS/1CH 4K@30FPS
Intelligent Analysis 1CH Face detection or 2CH Perimeter detection,Up to 1080P
Other Function
Bidirectional Talk Two-way voice intercom function
Motion Detection Zones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)
Picture Capture Support JPEG Capture
HDD Interface
SATA 1 SATA Interface
Max Capacity Unlimited

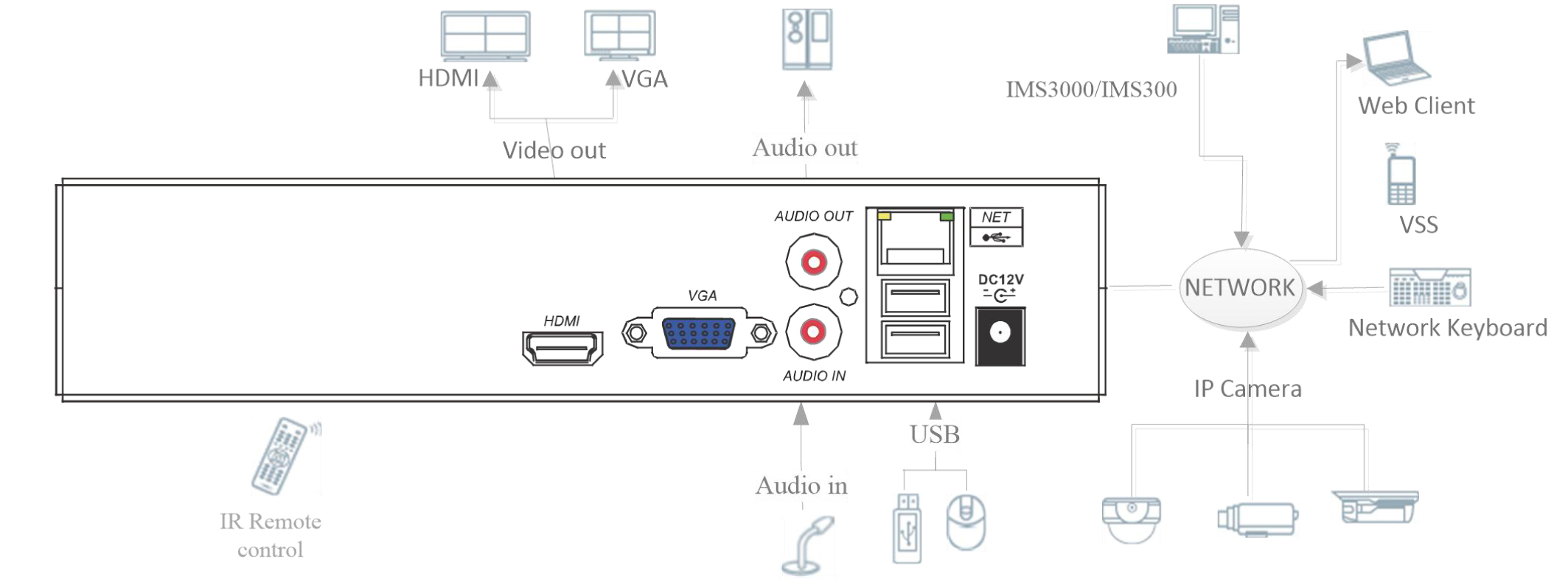

External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet interface
USB 2*USB2.0
Structure
Dimensions 410x293*60mm
Front Panel JN

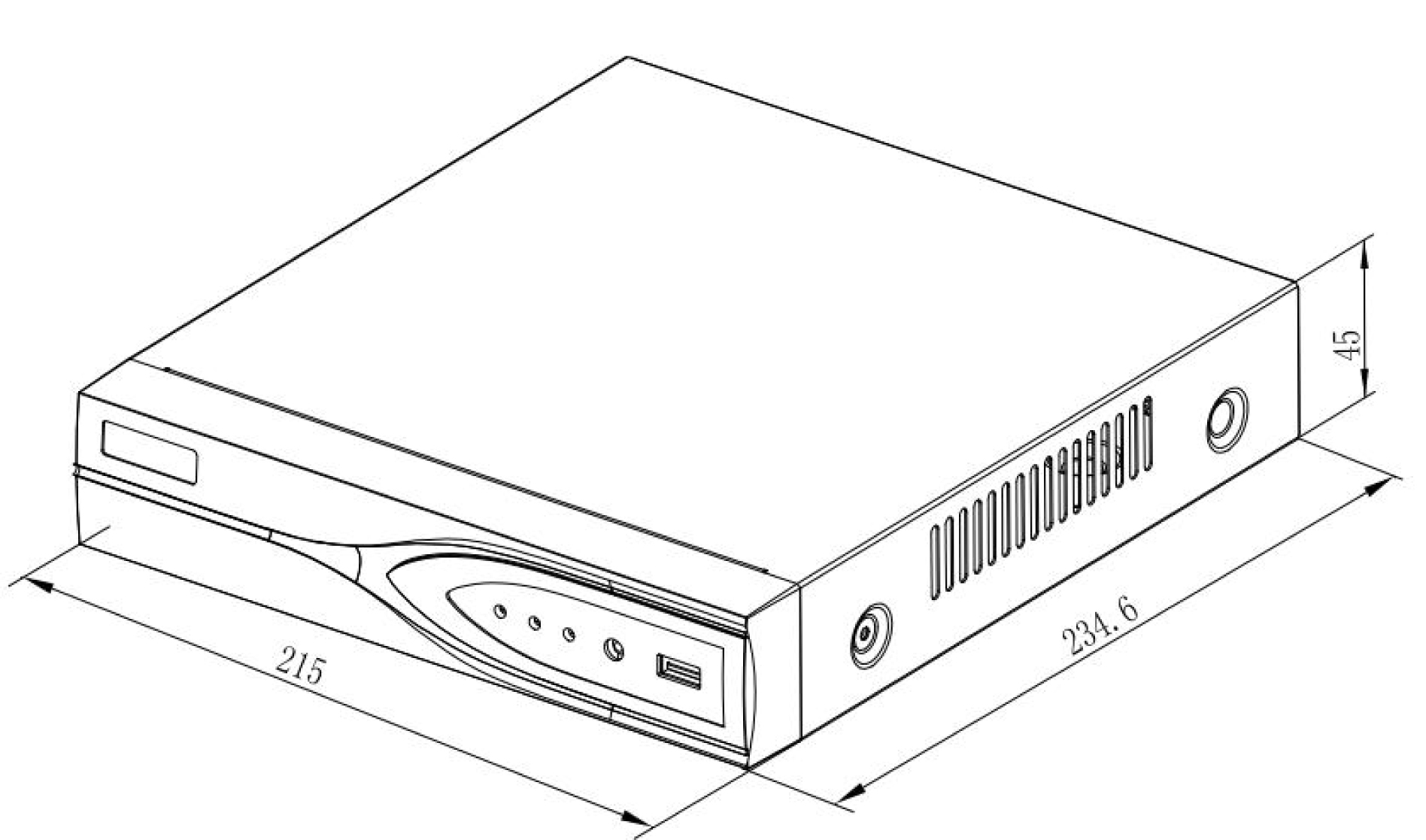

Size 215x235x45mm
Weight 0.9KG
Installation Desktop Installation
General
Power Supply DC 12V 2A DC 12V 2A DC 12V 2A
Working Temperature -10℃--+55℃
Working Humidity 10%--90%
Consumption 7W(without HDD) 7W(without HDD) 7W(without HDD)
