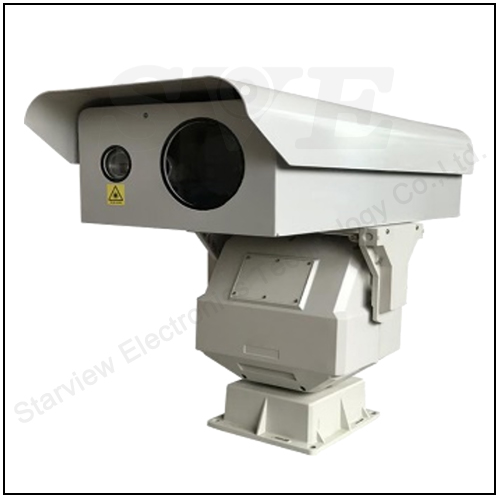

1500M Laser 86X Optical 4MP integrated PTZ Camera
Key Features
4.0MP 1/1.8" Progressive Scan CMOS;
1500M Laser distance, 86X Optical Zoom;
Large diameter high-definition de-fog automatic zoom visible lens, DC drive, auto iris, through the fog, preset;

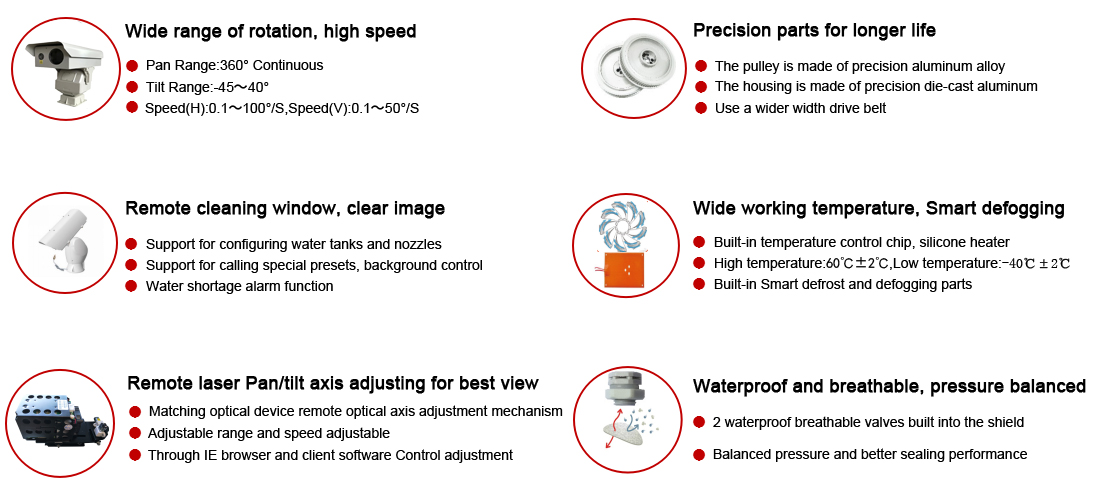

Double pitch worm gear transmission structure, electronic anti shake, mechanical anti loosening, power failure self-locking, strong wind resistance and high stability;
PTZ adopts super aluminum alloy shell, protection class IP66, professional structure design, professional wiper structure, high and low temperature test design, high temperature anti-ice and snow, to adapt to extreme weather;
Advanced electromagnetic compatibility test, using triple lightning protection technology.
It can be widely used in places that require large-scale high-definition picture quality monitoring, such as: border and coastal defense, rivers, forests, roads, railways, airports, ports, guard posts, squares, stations, large venues, and the periphery of communities.
Technical parameters
Model No. SVN-86H830L2-4
Type 150086X Optical zoom 4MP integrated PTZ Camera
Focal Length 10-860mm, 86X Optical Zoom
Aperture Range F2.1-F11.2
Horizontal field of view 38.4-0.48°(wide-tele)
Minimum Working distance 1m-10m (wide-tele)
Zoom speed Approximately 8s(optical lens, wide to tele)
HD Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Minimum Illumination color:0.0005 Lux @(F2.1,AGC ON);B/W:0.0001Lux @(F2.1,AGC ON)
Shutter 1/25s to 1/100,000s; Supports delayed shutter
Autoiris PIRIS
Day/Night Switch IR cut filter
Digital zoom 16X
Fill light Laser module
Light emission wavelength 808nm
Laser chip power 8W
Complement distance 1500M
Optical axis fine adjustment Support remote adjustment
Compression Standard
Video Compression H.265 / H.264
H.265 Type Main Profile
H.264 Type BaseLine Profile / Main Profile / High Profile
Video Bitrate 32 Kbps~16Mbps
Audio Compression G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bitrate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
Image(Maximum Resolution:2560*1440)
Main Stream 50Hz: 25fps (2560 × 14401920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2560 ×1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream 50Hz: 25fps (704 ×576); 60Hz: 30fps (704 ×576)
Image settings Corridor mode, saturation, brightness, contrast, sharpness adjusted by IE/ Client
BLC Support
Exposure mode AE / Aperture Priority / Shutter Priority / Manual Exposure
Focus mode Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
Area exposure / focus Support
Optical fog Support
Image stabilization Support
Day/Night Switch Automatic, manual, timing, alarm trigger
3D noise reduction Support
Picture overlay switch Support BMP 24-bit image overlay, customizable area
Region of interest ROI supports three streams and four fixed areas
Video output RJ45 Network Port
Storage function Support Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support)
Smart Features(optional)
Smart detection Cross-border detection, area intrusion detection, entering / leaving area detection, hovering detection, personnel gathering detection, fast motion detection, parking detection / take detection, scene change detection, audio detection , False focus detection, face detection
Smart wiper Optional
Fan / heating Real-time temperature detection; low temperature start, pure physical detection
PTZ parameter
Pan manual control speed 0.1°/S   --  20°/S
Tilt manual control speed 0.1 °/S  --  10°/S
Pan angle 360° contiously rotation
Tilt angle +40°~-45°
Positioning accuracy 0.01°±50%
3D function Support picture frame zoom, target lock the center of the field of view function
Automatic cruise Support, the focal length matches the PTZ speed
Watch function On/off, automatically call the preset point after staying in the idle state for a specified time
Communication interface RS485+RS232
communication protocol PECLO+VISCA
Angle control Support
Communication baud rate Support 2400/4800/9600/19200bps
General specification
Relative humidity 0~95%
IP grade IP66
Working temperature -40 ºC - 65ºC
Power supply AC24V
Consumption ≤150W
Installation mode Column mounted, wall mounted, corner mounted
Entry cable Side outlet

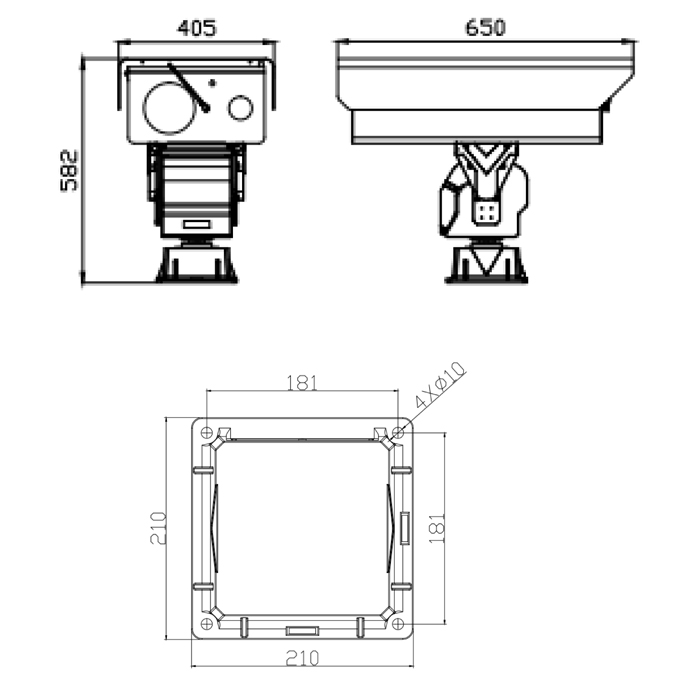

Dimensions (L, W, H) 657(L)x378(W)x610(H)mm
Weight ≤30kg
