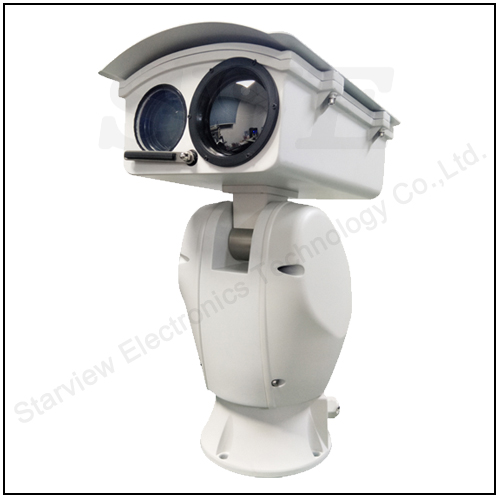

1KM 92X Optical 1080P integrated PTZ Camera
Key Features
2.0MP 1/1.8" Progressive Scan CMOS;
1KM Laser distance, 92X Optical Zoom;
Large diameter high-definition de-fog automatic zoom visible lens, DC drive, auto iris, through the fog, preset;

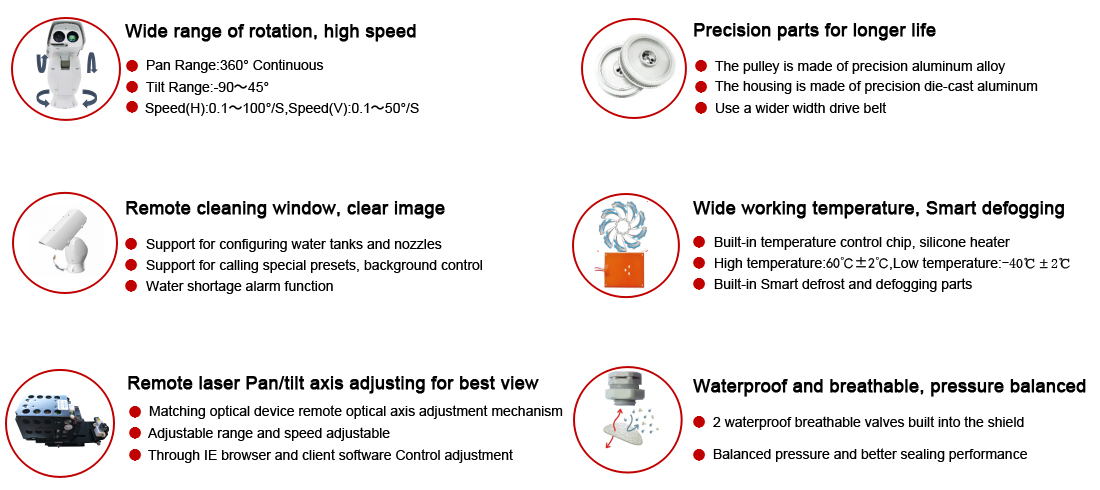

Worm gear and worm drive, self-locking protection function when power off, anti-strong wind, stable and reliable operation;
PTZ adopts super aluminum alloy shell, protection class IP66, professional structure design, professional wiper structure, high and low temperature test design, high temperature anti-ice and snow, to adapt to extreme weather;
Advanced electromagnetic compatibility test, using triple lightning protection technology.
Application
It can be widely used in places that require large-scale high-definition picture quality monitoring, such as: border and coastal defense, rivers, forests, roads, railways, airports, ports, guard posts, squares, stations, large venues, and the periphery of communities.
Technical parameters
2.0MP 1/1.8" Progressive Scan CMOS;
1KM Laser distance, 92X Optical Zoom;
Large diameter high-definition de-fog automatic zoom visible lens, DC drive, auto iris, through the fog, preset;
Worm gear and worm drive, self-locking protection function when power off, anti-strong wind, stable and reliable operation;
PTZ adopts super aluminum alloy shell, protection class IP66, professional structure design, professional wiper structure, high and low temperature test design, high temperature anti-ice and snow, to adapt to extreme weather;
Advanced electromagnetic compatibility test, using triple lightning protection technology.
Application
It can be widely used in places that require large-scale high-definition picture quality monitoring, such as: border and coastal defense, rivers, forests, roads, railways, airports, ports, guard posts, squares, stations, large venues, and the periphery of communities.
Technical parameters
| Model | |
| Model No. | SVN-92PTX905L1-2 |
| Type | 1KM 92X Optical zoom 2MP integrated PTZ Camera |
| Lens | |
| Focal Length | 6.1-561mm, 92X Optical Zoom |
| Aperture Range | F1.4-F4.7 |
| Horizontal field of view | 65.5-0.8°(wide-tele) |
| Minimum Working distance | 100mm-3000m (wide-tele) |
| Zoom speed | Approximately 7s(optical lens, wide to tele) |
| HD Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Minimum Illumination | color:0.0005 Lux @(F1.4,AGC ON);B/W:0.0001Lux @(F1.4,AGC ON) |
| Shutter | 1/25s to 1/100,000s; Supports delayed shutter |
| Autoiris | PIRIS |
| Day/Night Switch | IR cut filter |
| IR | |
| Fill light | Laser module |
| Light emission wavelength | 808nm |
| Laser chip power | 8W |
| Complement distance | 1000M |
| Optical axis fine adjustment | Support remote adjustment |
| Compression Standard | |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| H.264 Type | BaseLine Profile / Main Profile / High Profile |
| Video Bitrate | 32 Kbps~16Mbps |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) |
| Image(Maximum Resolution:1920*1080) | |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream | 50Hz: 25fps (704 ×576); 60Hz: 30fps (704 ×576) |
| Image settings | Corridor mode, saturation, brightness, contrast, sharpness adjusted by IE/ Client |
| BLC | Support |
| Exposure mode | AE / Aperture Priority / Shutter Priority / Manual Exposure |
| Focus mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus |
| Area exposure / focus | Support |
| Optical fog | Support |
| Image stabilization | Support |
| Day/Night Switch | Automatic, manual, timing, alarm trigger |
| 3D noise reduction | Support |
| Picture overlay switch | Support BMP 24-bit image overlay, customizable area |
| Region of interest | ROI supports three streams and four fixed areas |
| Network | |
| Video output | RJ45 Network Port |
| Storage function | Support Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) |
| Smart Features(optional) | |
| Smart detection | Cross-border detection, area intrusion detection, entering / leaving area detection, hovering detection, personnel gathering detection, fast motion detection, parking detection / take detection, scene change detection, audio detection , False focus detection, face detection |
| Smart wiper | Optional |
| Fan / heating | Real-time temperature detection; low temperature start, pure physical detection |
| PTZ parameter | |
| Pan manual control speed | 0.1°/S -- 100°/S |
| Tilt manual control speed | 0.1 °/S -- 20°/S |
| Pan angle | 360° contiously rotation |
| Tilt angle | +40°~-90° |
| Positioning accuracy | 0.1° |
| Presets | 255 |
| Automatic cruise | 8 , the focal length matches the speed of the gimbal |
| Watch function | On/Off, automatically call the preset point after the specified time in the idle state |
| Baud rate | 2400/4800/9600/19200bps |

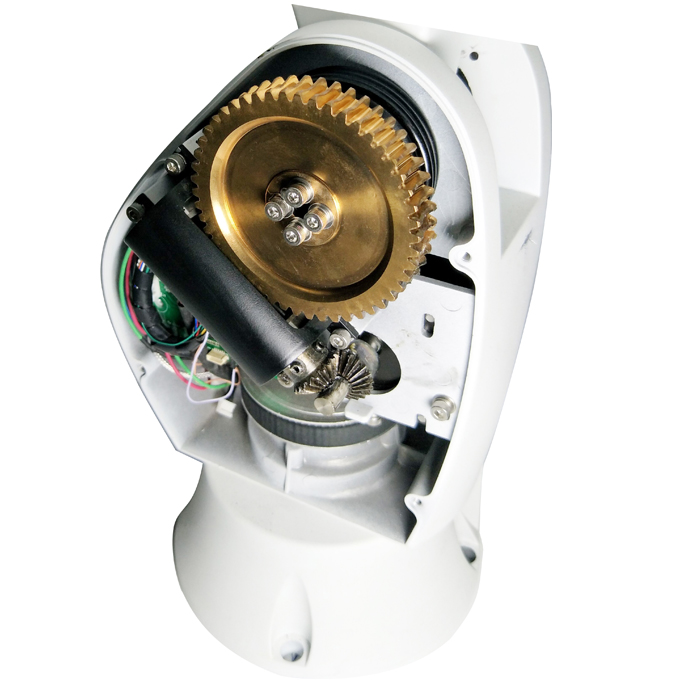

| Drive structure | Vertical drive: worm gear / horizontal drive: timing belt |

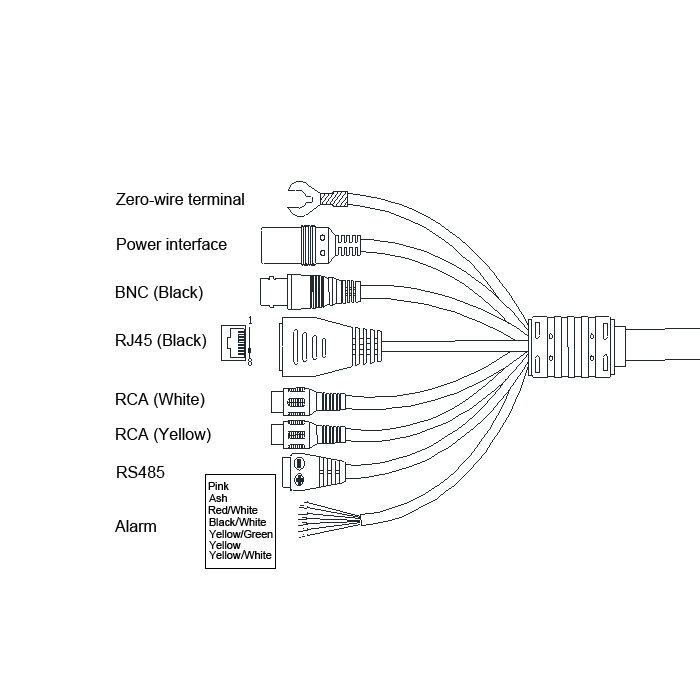

| Output port | 1 CH alarm output / 1 CH relay output |
| General specification | |
| Relative humidity | 0~95% |
| IP grade | IP66 |
| Working temperature | -40 ºC - 60ºC |
| Power supply | DC12V/5A |
| Consumption | 60W |
| Installation mode | Column mounted, wall mounted, corner mounted |
| Entry cable | Side outlet |

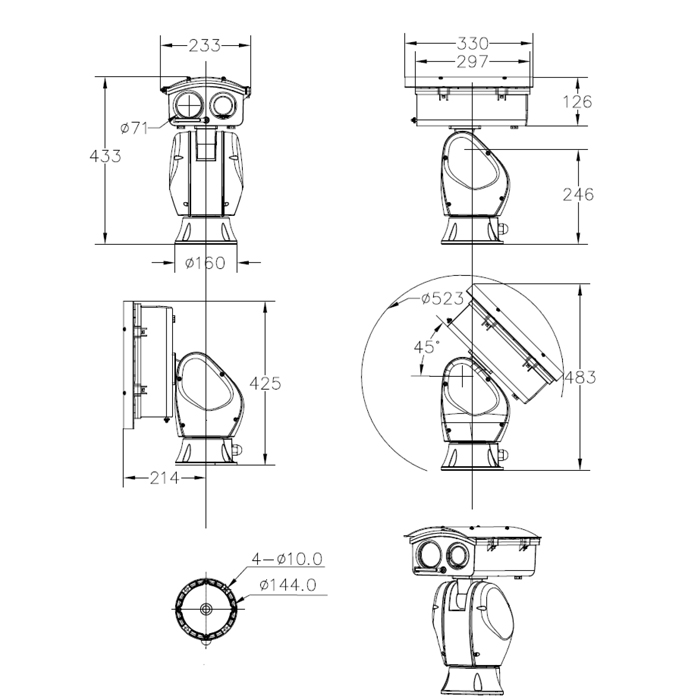

| Dimensions (L, W, H) | 330(L)x233(W)x433(H)mm |
| Weight | ≤10kg |
