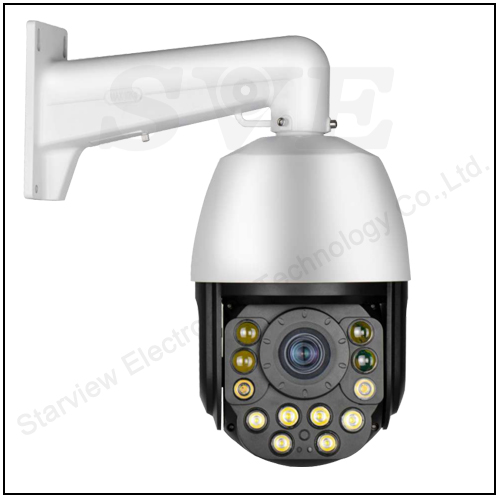

33X 2MP Intelligent Alert Tracking PTZ Speed Security Dome Camera

Key Features
- 33X 2MP Sony Low illuminatio CMOS sensor, high sensitivity chip, present perfect image effect;
- 8 high-quality dot-matrix IR + 4 long-range laser IR, which can automatically switch between near, middle and far lights according to the focal length of the lens.IR distance is 500M, and the target can be clearly found at 300M;
- Support auto focus, AWB, MWB, support saturation setting, contrast setting, sharpness setting, brightness setting, backlight compensation setting, strong light printing setting, 2D/3D noise reduction intensity setting, fog function setting, WDR mode intensity setting;
- Support AI human shape recognition algorithm, fast recognition speed, high accuracy, and can select the warning area at will. Once someone breaks into the warning area, the sound and light alarm will be triggered immediately in parallel with dynamic tracking (need to connect an external passive speaker)
- Support custom alarm voice,Built-in pickup and built-in power amplifier, monitor live sound, external speakers can realize two-way voice intercom;
- Built-in anti-surge and lightning protection device to effectively prevent 4000V instantaneous current.
Technical parameters
Model | |
Model No. | SVN-33HT903B |
Type | 33X 2MP Intelligent Alert Tracking PTZ Speed Dome Camera |
Camera | |
Image Sensor | Hi3516Ev200, 2MP 1/2.8" Low illumination CMOS Sony IMX307 |
Total pixels | 2MP |
Minimum Illumination | Color: 0.001Lux@F1.2(AGC ON), B/W: 0Lux(IR NO) |
Electronic Shutter | Auto/Manual (1/10~1/10000 seconds) |
Day/Night Switch | Support IR-CUT |
Len | |
Focal Length | 4.5- 148mm |
Optical zoom | 33X Optical zoom |
Aperture value | F1.6-F3.5 |
Angle of View | 60.2°-2.5°(Wide-Tele) |
PTZ Control | |
IR Control | Auto/near light/far light/off |
IR Distance | ≥500m |
Rotation range | Horizontal: 0°~360° continuously, Vertical:-5°~90° |
Rotation speed | Horizontal:0.1°~100°/s,Vertical: 0.1°~100°/s |
Preset | 255 |
Automatic mode | Support 4 automatic cruises, 1 line scan, 1 trajectory scan, 1 horizontal scan |
PTZ function | Support idle action, support power-on action, rotation speed can be automatically adjusted according to lens zoom |
Humanoid Vigilance | Support humanoid recognition linkage sound and light alarm and tracking, you can freely select the warning area |
Video compression | H.265+/H.265/H.264 |
Resolution | Main stream (1920*1080, 1280*960, 1280*720) , Auxiliary stream (800*448, 640*480, 640*360, 352*288) |
Network protocol | HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP |
User Management | Support multi-level user authority management |
Input/Output | |
Network interface | 10/100M adaptive Ethernet interface, lightning protection design, differential mode> 2000V, common mode> 6000V level |
Audio interface | 1CH audio input, 1CH audio output |
General | |
Power | DC12V4A(With infrared control circuit) |
Consumption | 30W |
work environment | Temperature: -40~60ºC; humidity<90% |
Protection level | IP66 waterproof,4000V lightning protection |

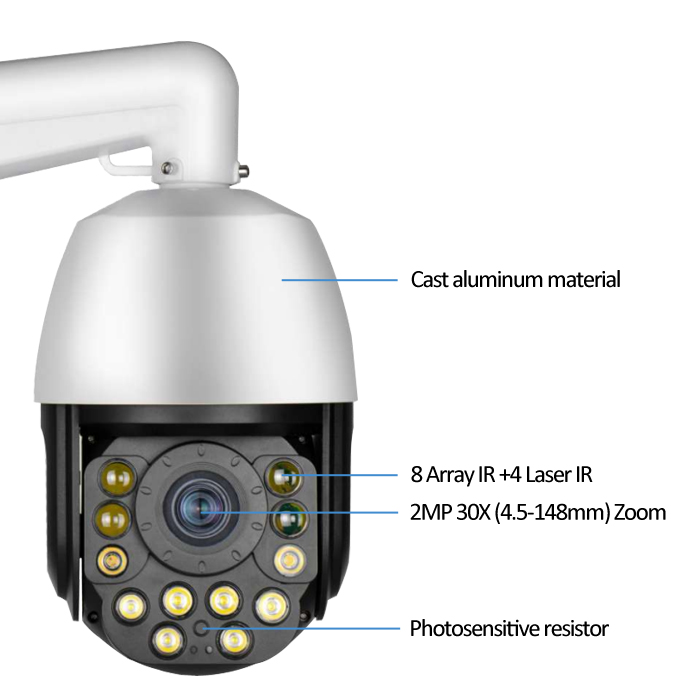

Material | Cast aluminum material |
Size | Φ185 (mm)×287(mm) |
weight | 5.5kg (including package) |
Bracket | Wall mounting ,hoisting(optional) |
