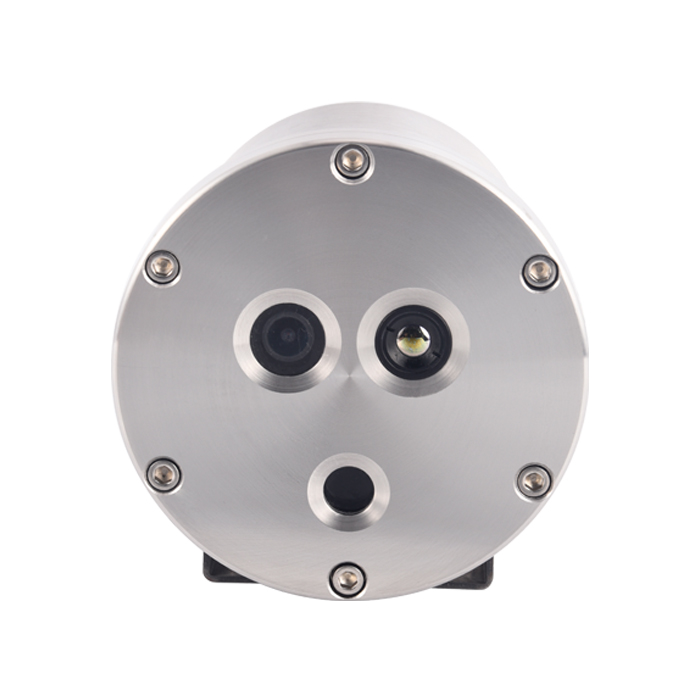

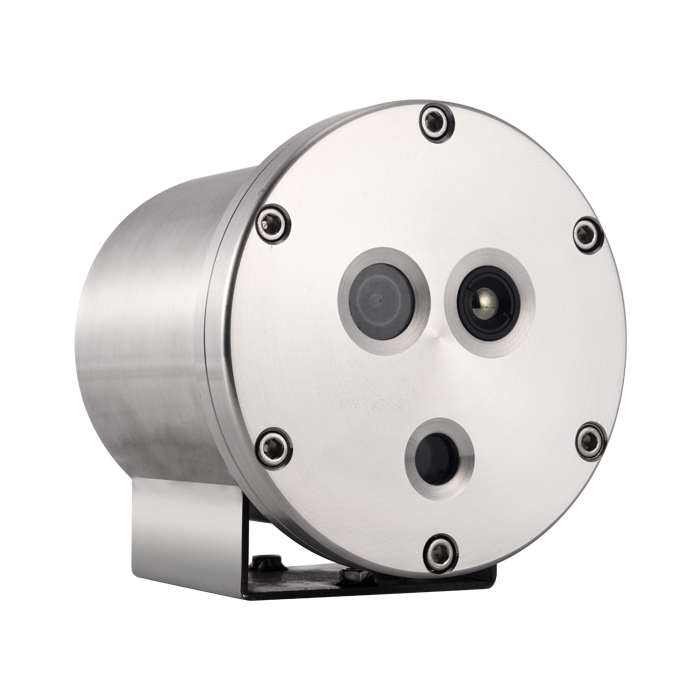

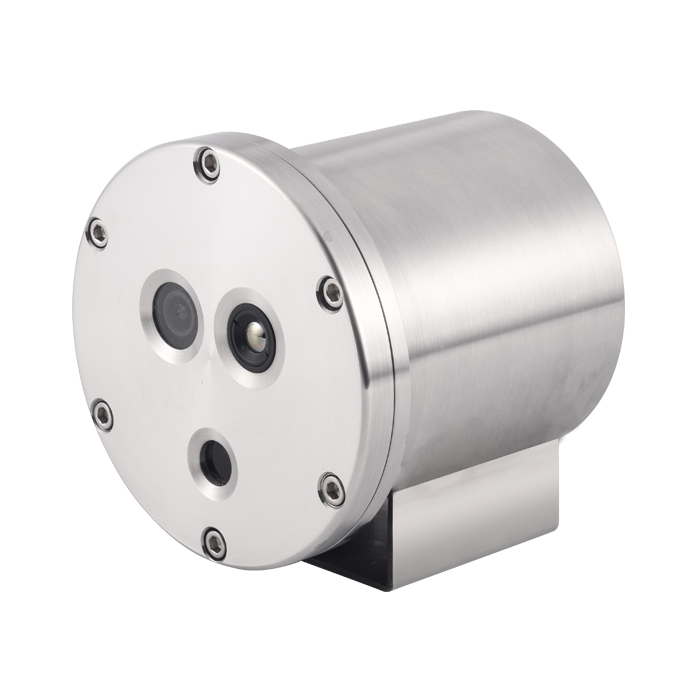

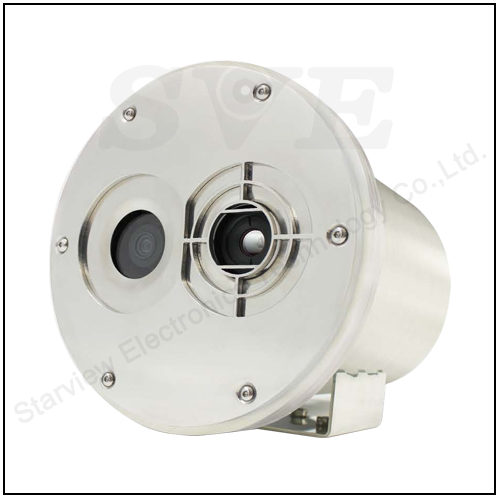

316L Stainless Steel Shell 384*244 Dual-Spectrum Explosion-Proof Monocular Thermometry Imager

Key Features
  1. 316L stainless steel shell, explosion-proof certification, explosion-proof mark ex D IIC T6 GB / ex TD A21, IP68 T80 ºC, tvs6000v, lightning protection, surge protection;
  2. High temperature measurement accuracy; temperature measurement accuracy: ±2°C or ±2%; full-screen maximum temperature, minimum temperature automatic tracking, support point, line, frame and other temperature measurement modes;
  3. Support regional independent pseudo color; Super resolution and image detail enhancement technology;
  4. Dual optical fusion technology.
Technical parameters
Model No. SV-T23D04-Ex / SV-T23D07-Ex
Thermal Imaging
Detector uncooled detector
Sensor pixel 384x288
Response band 8~14μm
Pixel spacing 17μm
NETD <50mk
Lens 4mm / 7mm
FOV 94°70° / 53°40°
Palette White heat, black heat, iron red and other 10 pseudo color palettes
Visible Camera
Image Sensor 1/2.8" CMOS Sensor
Resolution 1920*1080
Focal Length 2.8-12
Temperature function
Temperature measurement range -20ºC~150ºC0ºC~550ºC
Temperature measurement area setting Support global high and low temperature, average temperature tracking, support point, line, regional temperature measurement mode, can support up to 20 temperature measurement areas
Overtemperature alarm Support abnormal temperature alarm
Material 316L stainless steel
User Management Support three-level user authority management, administrator, operator and ordinary user
Working temperature -40ºC~+60ºC<95% RH

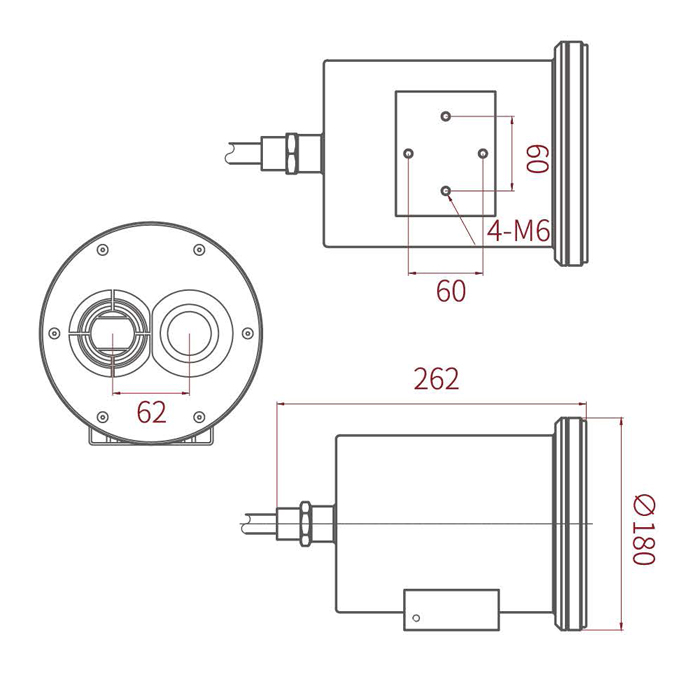

Dimension 262mm*180mm*180mm
