Pan & Tilt |
|
Manual speed |
Pan(0.1°~200°/s) |
|
Tilt(0.1°~180°/s) |
|
Rotation |
Pan continuously 360°, tilt 0~90° with auto-flip |
|
Preset |
128 preset |
|
Auto-flip |
Tilt down 90°, with auto-flip 180° |
|
Patrol |
up to 16 patrol |
|
HomePosition |
preset/patrol can be set |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
CAM SPEC |
|
|
Chispset |
1/2.7" CMOS(5.0megapixel) |
|
Effective Pixels |
(5MP)2880*1620 |
|
OPTICS Zoom |
Optical x 20, f =4.7mm ~ 94 mm |
|
Digital Zoom |
Digital:16X |
|
Angle |
Appr.(D) 60.4°(Wide) to 4.4°(Tele);(H) 53.3°(Wide) to 3.8°(Tele);(V) 30.7°(Wide) to 2.2°(Tele); |
|
Iris |
F1.7 |
|
Auto Focus |
Auto / one push / Manual |
|
Min. Illumination |
Colour: 0.005 lux (F1.7, AGC ON);0 lux with IR |
|
Shutter Time |
Auto/Manual; shutter time: 1 ~ 1/100000 s |
|
IR Range |
UP to 150m |
|
Defog |
Defog Digital Defog |
|
Noise reduction |
2D/3D DNR |
|
Wide dynamic |
120dB |
|
VIDEO |
|
|
Video Compression |
Ultra 265,H.265, H.264, MJPEG |
|
H.264 code profile |
Baseline profile, Main Profile, High Profile |
|
Frame Rate |
Main Stream:2880*1620,2560*1440,2304*1296,1920*1080,1280*720,720*576(D1),640*360 |
|
Sub Stream:1280*720,720*576(D1),640*360 |
|
Third Stream:720*576(D1),640*360,704*288(2CIF),352*288(CIF) |
|
HLC |
Supported |
|
BLC |
Supported |
|
EIS |
Supported |
|
Privacy Mask |
Up to 8 areas |
|
ROI |
Up to 8 areas |
|
Motion Detection |
Up to 4 areas |
|
SMART |
|
|
Behavior Detection |
Intrusion, cross line, motion detection, auto tracking |
|
Intrusion |
Enter and loiter in a pre-defined virtual region |
|
cross line |
Cross a pre-defined virtual line |
|
motion detection |
Moving within a pre-defined virtual region |
|
Recognition |
Face detection,Audio detection |
|
Intelligent Identification |
Defocus, Scene Change, Object Left, Object Moving |
|
Statistical Analysis |
People counting |
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|
Storage |
|
|
Edge Storage |
Micro SD, up to 256 GB |
|
Network Storage |
ANR |
|
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,TLS,SSL |
|
Compatible Integration |
ONVIF(Profile S, Profile G, Profile T), API |
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
|
General |
|
|
Power consumption |
9W/25W(IR_LED ON) |
|
Power supply |
DC 12V/4A |
|
POE |
Support POE power supply ( POE IEEE802.3at 30W) |
|
Temperature |
-40ºC~+60ºC |
|
Installation |
Wall /Corner/Pole/Pendant installation |
|
Net weight |
5kg |
|
Size |
Product size 350×229mm, Packing size 235*235*460mm |
|

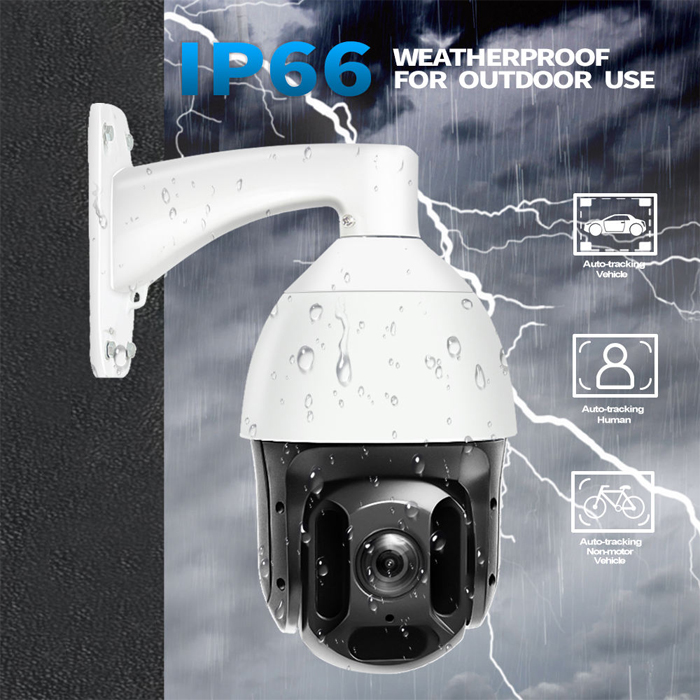

Protection Level: |
IP66 standard (outdoor dome) |
|
TVS lightning protection, surge protection and voltage transient protection |
