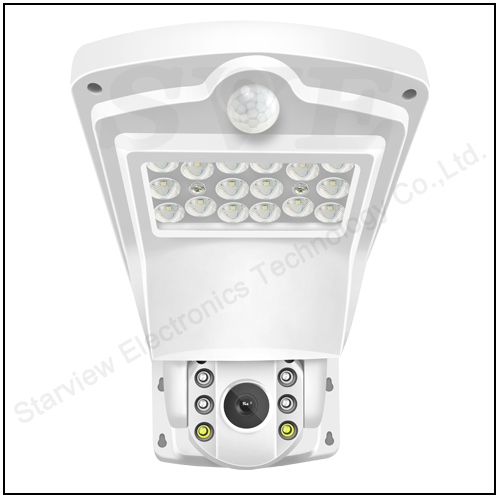

5MP 6mm Fixed Focus 4G/WiFi Intelligent Street Lamp Apherical Camera
Key Features

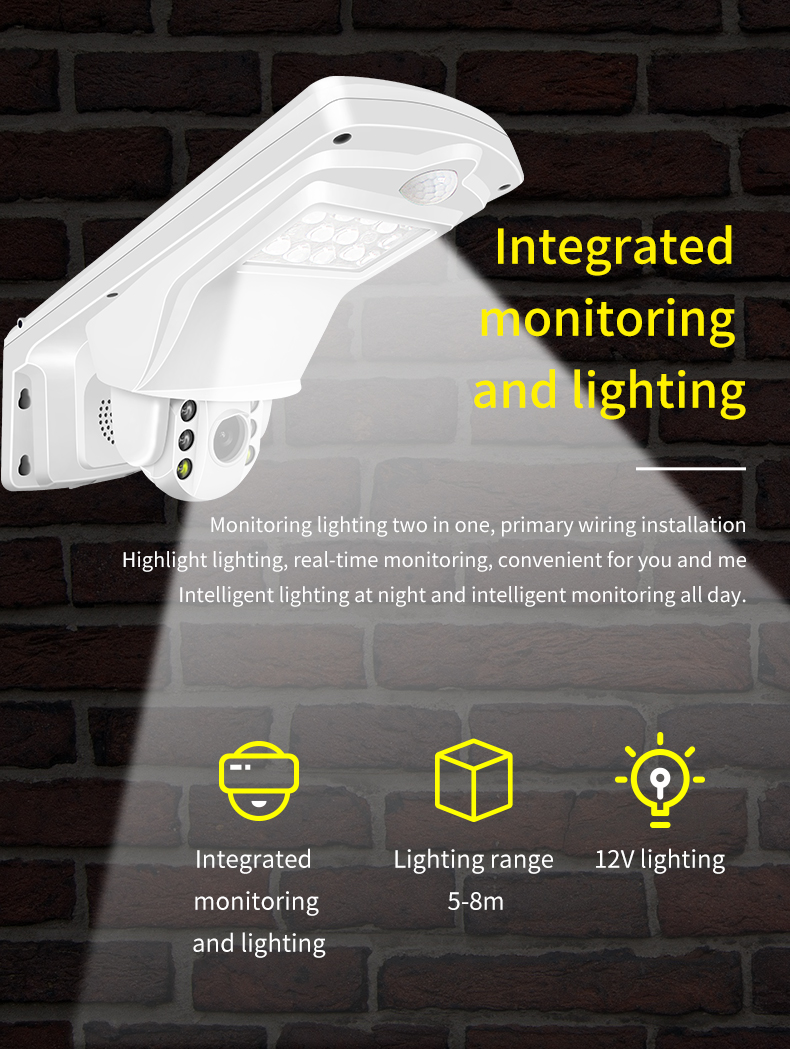

Intelligent light;
Monitor the lighting as a whole.
5MP(2560*1920);6MM Fixed focus
Mobile detection alarm;Voice talk
Horizontal 0-355 degrees; Vertical 0-90 degrees
IP66 waterproof
Technical parameters
| Model No. | SVN-5HXS6-WG |
| Name | Street lamp apherical camera |
| Texture | Aluminum alloy + ABS shell |
| Lighting source | LED light source |
| Light source control | Intelligent light control / mobile app control |
| Lens | 6mm Fixed focus |
| Camera element | 1/3" CMOS |
| Pixel | 5MP(2560*1920) |
| Network connections | 4G / Wifi |
| Sound recording | 15m |
| Intercom | 40m |

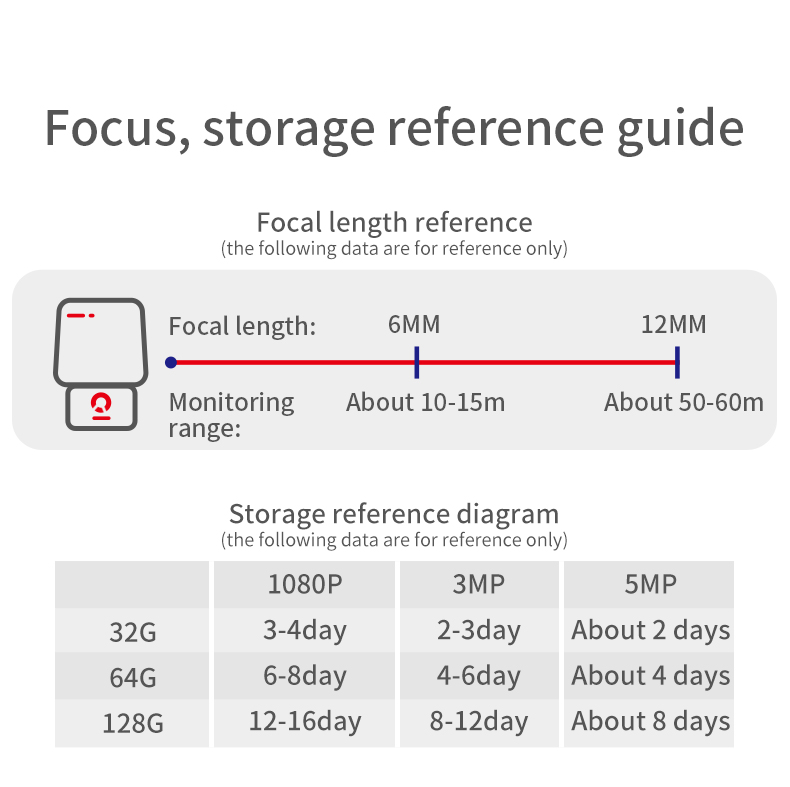

| Local storage | External TF Card(maximum 128G) |
| Network protocol | Onvif |
| Signal to noise ratio | ≥48db |
| Weight | 2KG |
| Power Supply | DC 12V2A |
| Lighting power | Slightly bright 2W, full bright 10W |
| Night vision mode | infrared / full color / intelligent mode |
| Night vision distance | 20m full color, 40m infrared |
| Night vision lamp | 4 infrared lamps, 2 white lights |
| Minimum light | 0.5Lux@D1; 0.09Lux@1.6 |
| Voice alarm | Enter the monitoring area and activate the siren |

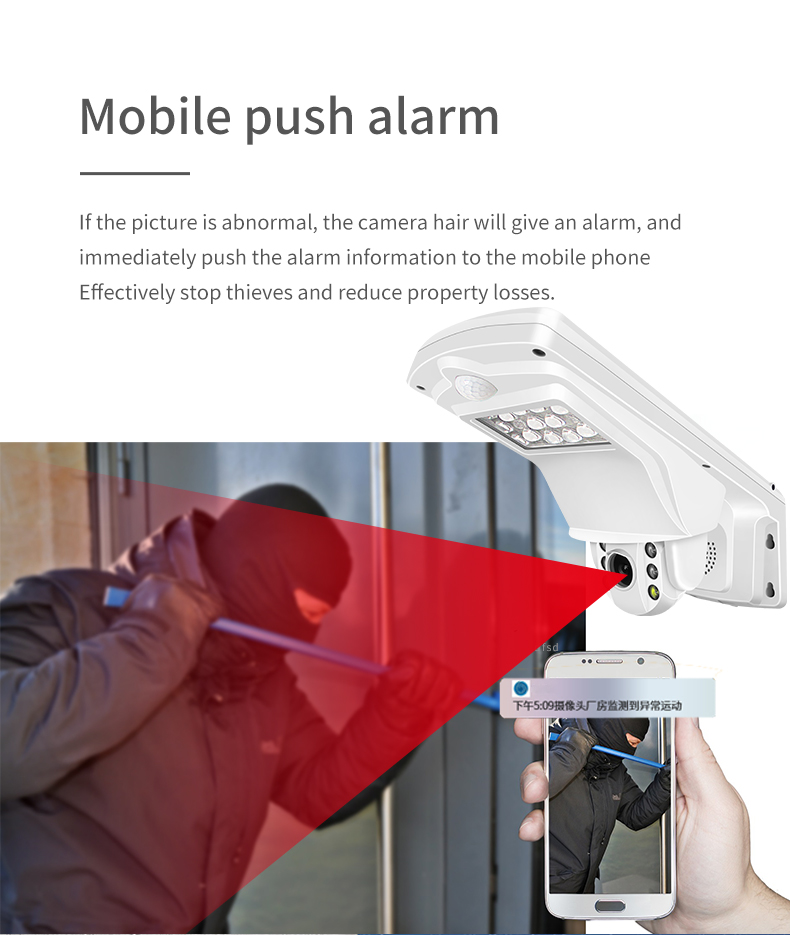

| Movement detection | Alarm information can be sent to mobile phone or email |

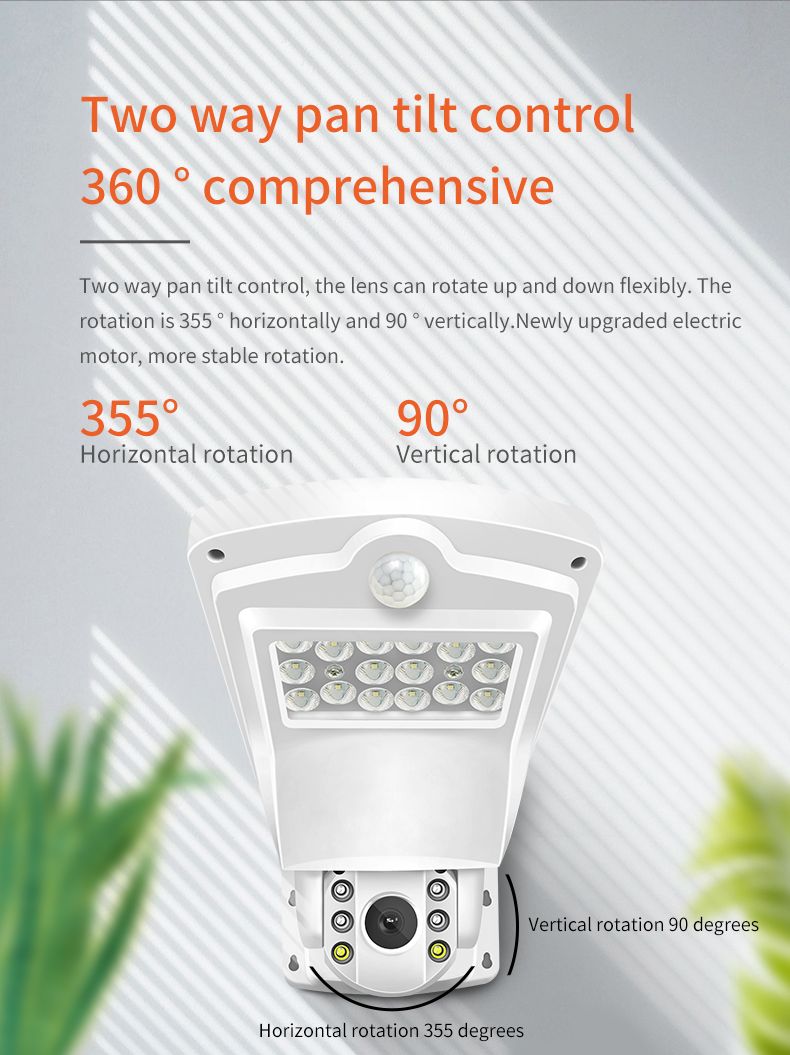

| Rotation angle | Horizontal 0-355 degrees; Vertical 0-90 degrees |
| Horizontal velocity | 0-20°/S |
| Vertical velocity | 0-20°/S |
| Decoder | built-in |

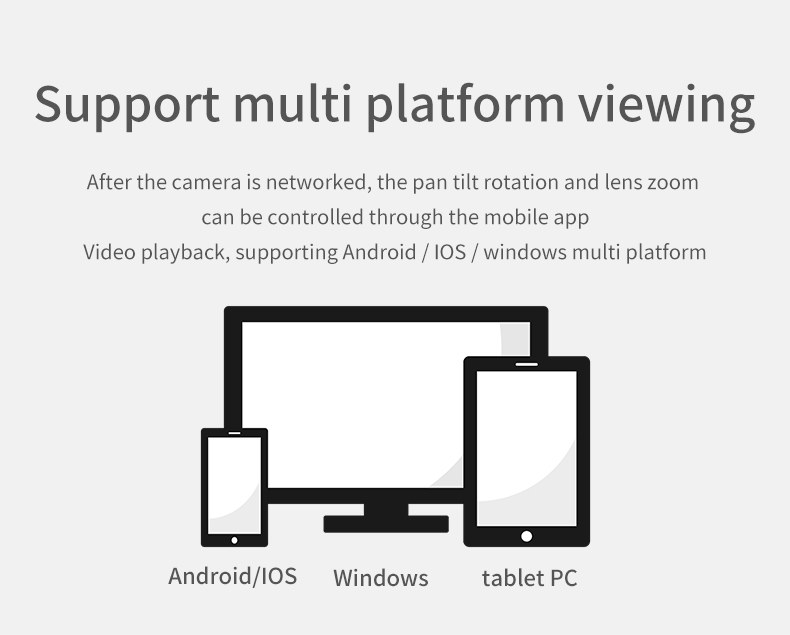

| Inquiry method | IE, mobile phone, tablet, computer |
| Remote function | Support mobile remote |

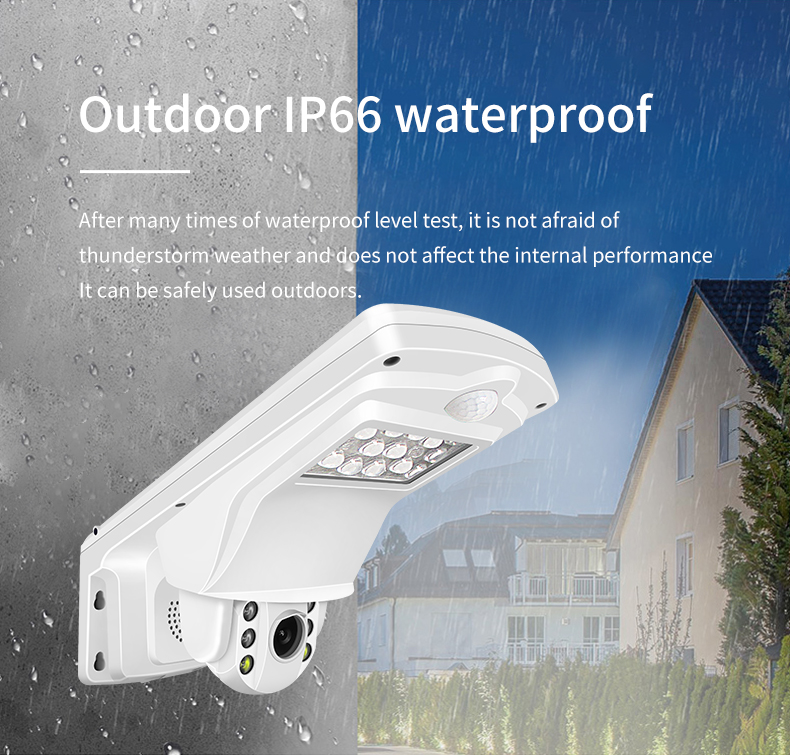

| Waterproof grade | IP66, it can be installed outdoors |
| Ambient temperature | -25℃-55℃ |
| Package size | 360*175*155mm |
| Camera power | 2W in daytime, 5W in night vision, 10W in maximum power |
