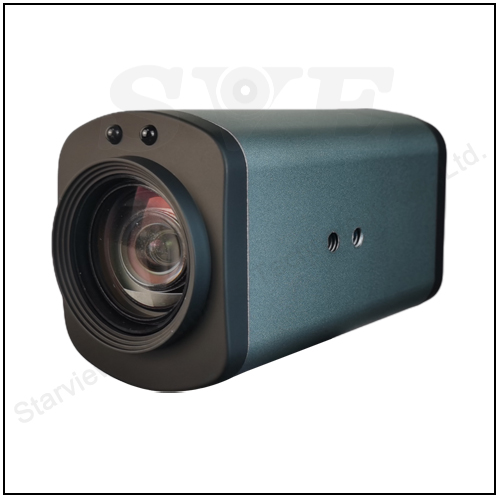

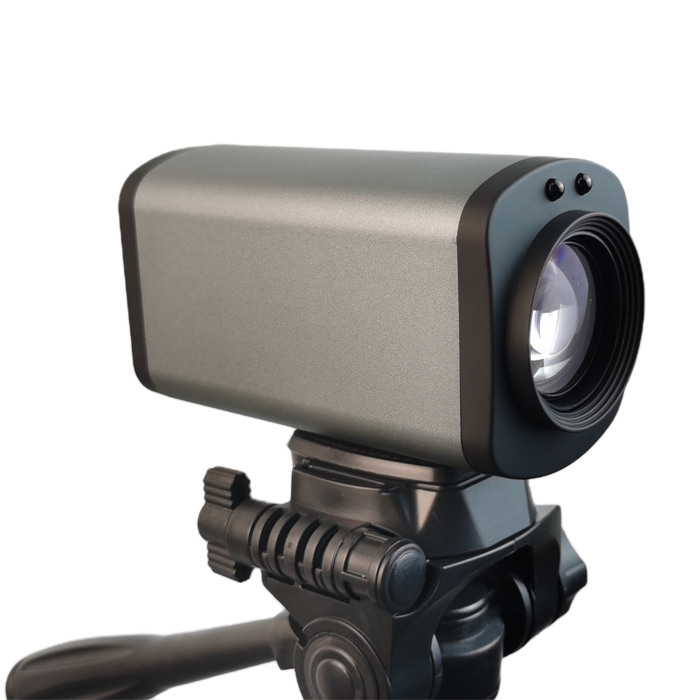

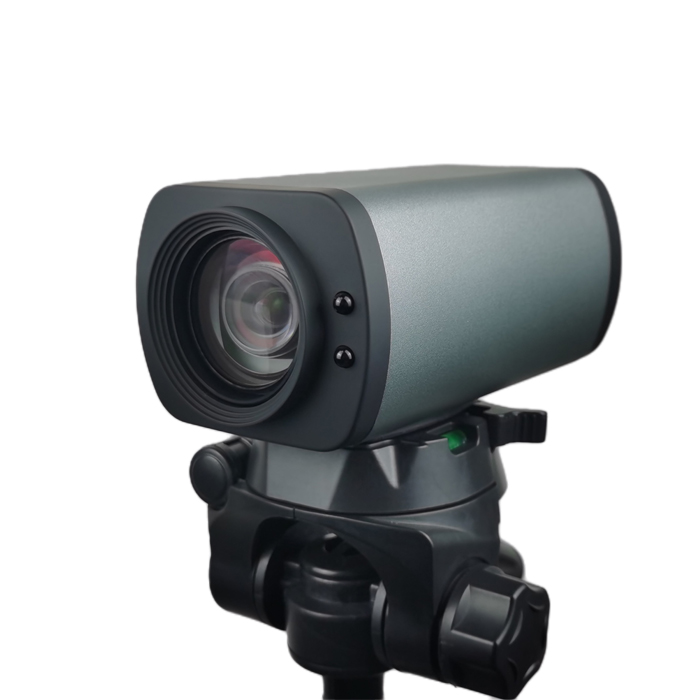

YUY2 1080P60fps USB3.0 HDMI live broadcast Camera

Product Description

Full HD images: USB3.0:YUY2 1080P60fps;HDMI:1080P60fps
Comes with USB serial port: USB2.0 interface comes with serial port, It can be set up and debugged using PC-side tools, It is convenient to set up the camera remotely, The PC tool can save configurations or import configurations with one click.
Image sensor: Using 1/2.8 inch high-quality image sensor, Deliver crisp and lifelike HD video, Vividly show the expressions and movements of the characters.
lOptical zoom lens: It adopts 10x optical zoom and 68.8° wide-angle lens.
Multiple video interfaces: Support HDMI, USB 2.0, USB3.0 video output;
Autofocus technology: The advanced focusing algorithm is used to make the lens focus quickly, accurately and stably.
Portrait and horizontal screens: Support switching horizontal screen and vertical screen output mode with dip switch to better meet customers' playback needs for horizontal screen and vertical screen.
Professional graphic style: Support beauty and jewelry style modes to adjust the best image effect for live broadcast scenes.
Multiple video compression standards: The interface supports MJPEG, YUY2, and H.264 video compression formats.
Low noise and high signal-to-noise ratio: The low-noise CMOS effectively ensures the ultra-high signal-to-noise ratio of the camera video; Advanced 2D and 3D noise reduction technology is used to further reduce noise while ensuring image clarity.
Easy to use: No need to download the driver, the USB output is plug and play;

Product overview
Parameters/models SDT-10XU3Y60
Camera, lens parameters
Image sensor 1/2.8 Sony sensor
Effective pixels 2MP; 16:9
Video signal HDMI output supported video formats:1080I@60fps; 1080I@50fps; 1080P@30fps; 1080P@25fps; 720P@60fps; 720P@50fps;
  USB2.0 output supports video formats:1920×1080@30fps; 1280×720@30fps; 1024×576@30fps; 960×540@30fps; 800×448@30fps; 640×360@30fps; 640×480@30fps; 320×176P30fps;
  USB3.0 output supports video formats:YUY2 1920×1080@60fps; MJPEG1920×1080@60fps
Visual angle Horizontal viewing angle 8.8°~68.8°
Focal length 4.34~35.17mm
Aperture F1.5~F3.0
Optical zoom 10X
Minimum illumination 0.1Lux(F1.8, AGC ON)
Digital noise reduction 2D&3D Digital noise reduction
Super automatic noise cancellation On/off
White balance Auto/manual/one-touch white balance /3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus Auto/manual/one-key focus;
Exposure Automatic/Manual
BLC On/off
Signal to Noise Ratio >50dB
Vertical screen switch On/off
Minimum object distance 15cm(Far)~150cm(Near)

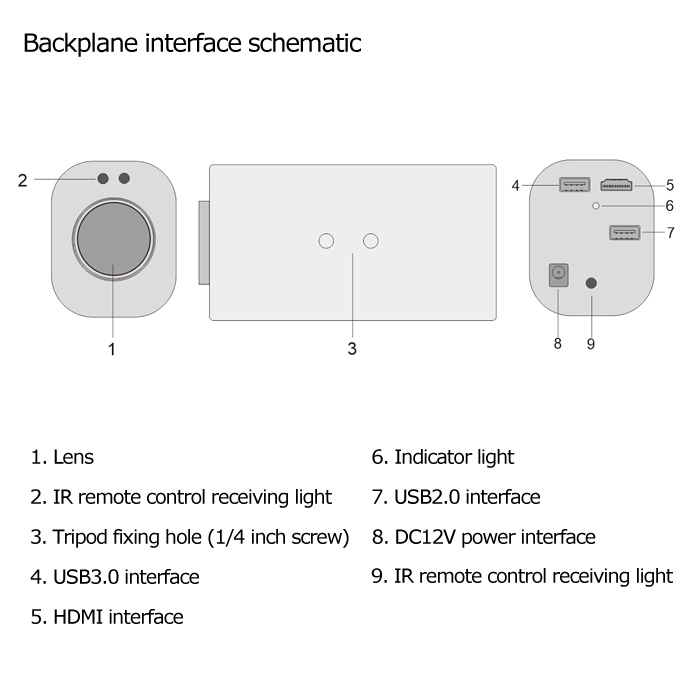

Interface functional performance

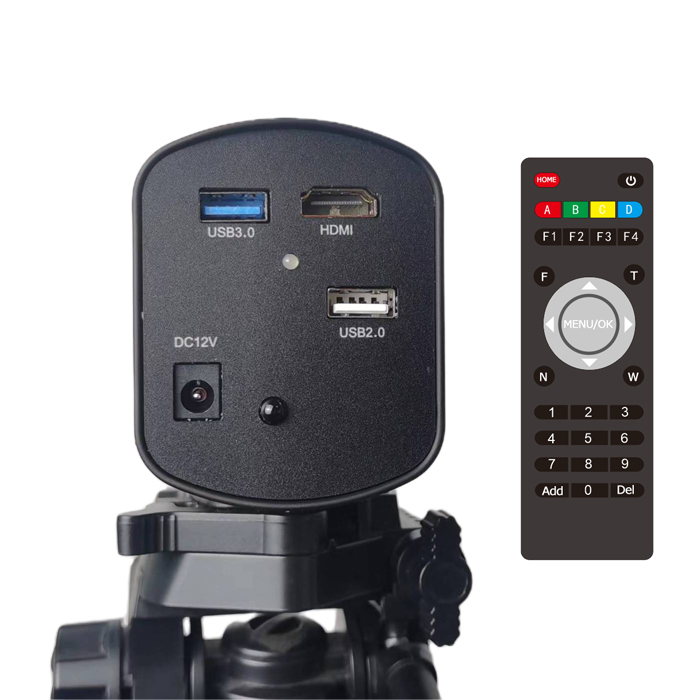

Video output interface 1 CH USB 2.0 interface: A type, Support video signal output;
  1 CH USB 3.0 interface: A type, Support YUY2 format 60 frame video output, adaptive;
  1 CH HDMI interface: Support video output
Video compression format YUV, MJPG, H.264
Control interface USB interface
Other parameters
Operating voltage Power adapter: 12V, USB: 5V
Operating current Power adapter: 0.425, USB: 1A(max)
Power consumption 5W(max)
Storage temperature -10℃~+60℃
Storage humidity 20%~90%
Operating temperature -10℃~+50℃
Operating humidity 20%~80%

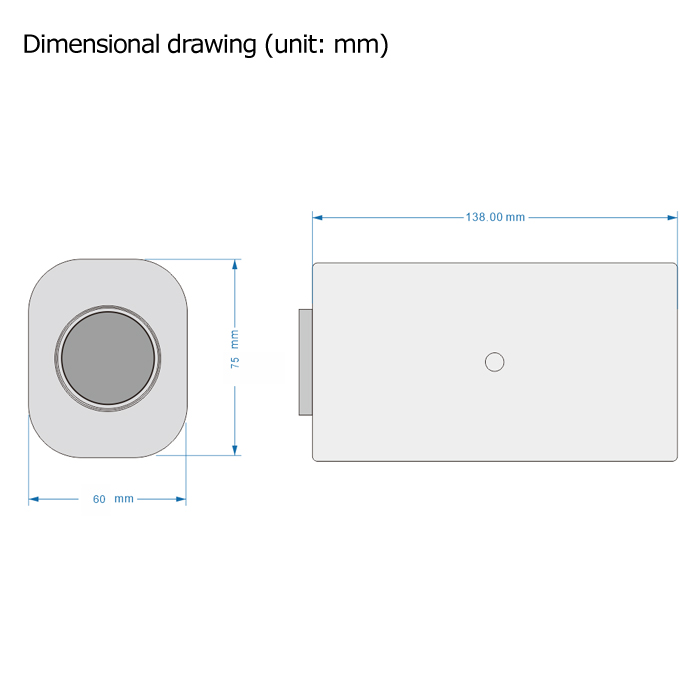

Dimensions 68 mm×138 mm×75 mm
Weight 0.6kg
Usage environment indoors
Annex Instruction manual, USB 3.0 cable, power adapter, wireless remote control
