10X 1080P30fps USB2.0 live broadcast Camera
Product Description
Full HD images: USB2.0: 1080P30fps;
Image sensor: Using 1/2.8 inch high-quality image sensor, Deliver crisp and lifelike HD video, Vividly show the expressions and movements of the characters.
Optical zoom lens: It adopts 10x optical zoom and 68.8° wide-angle lens.
Multiple video interfaces: Support USB 2.0 video output;
Autofocus technology: The advanced focusing algorithm is used to make the lens focus quickly, accurately and stably.
Portrait and horizontal screens: Support switching horizontal screen and vertical screen output mode with dip switch to better meet customers' playback needs for horizontal screen and vertical screen.
Professional graphic style: Support beauty and jewelry style modes to adjust the best image effect for live broadcast scenes.
Multiple video compression standards: The interface supports MJPEG, YUY2, and H.264 video compression formats.
Low noise and high signal-to-noise ratio: The low-noise CMOS effectively ensures the ultra-high signal-to-noise ratio of the camera video; Advanced 2D and 3D noise reduction technology is used to further reduce noise while ensuring image clarity.
Easy to use: No need to download the driver, the USB output is plug and play;

Product overview
Parameters/models SDT-10XU2Y30
Camera, lens parameters
Image sensor 1/2.8 Sony sensor
Effective pixels 2MP; 16:9
Video signal USB2.0 output supports video formats:
1920×1080@30fps; 1280×720@30fps; 1024×576@30fps; 960×540@30fps; 800×448@30fps; 640×360@30fps; 640×480@30fps; 320×176P30fps;
Visual angle 67.6°
Focal length 4.9±5%~47.04±5%mm
Aperture F2.36~F2.4
Optical zoom 10X
Minimum illumination 0.1Lux(F1.8, AGC ON)
Digital noise reduction 2D&3D Digital noise reduction
White balance Auto/manual/one-touch white balance /100K
Focus Auto/manual/one-key focus;
Exposure Automatic/Manual
BLC On/off
Signal to Noise Ratio >50dB
Minimum object distance 30cm(Far)~150cm(Near)
Interface functional performance

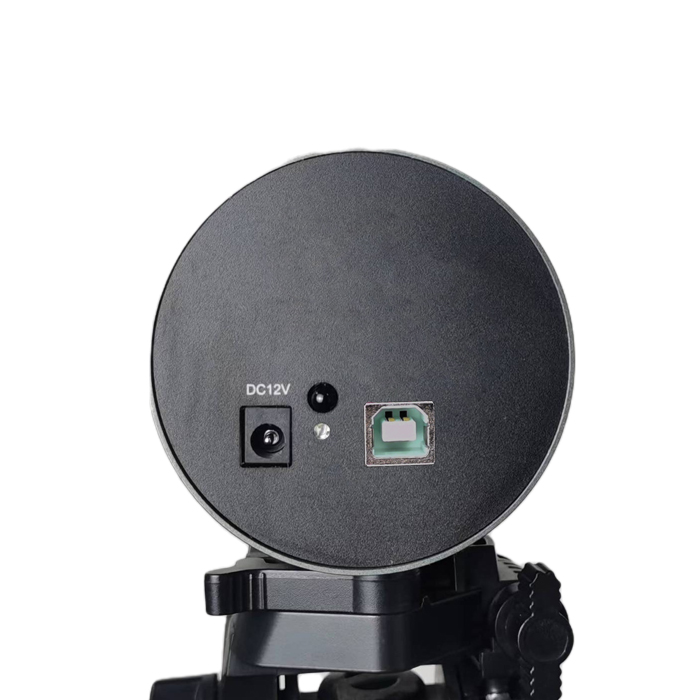

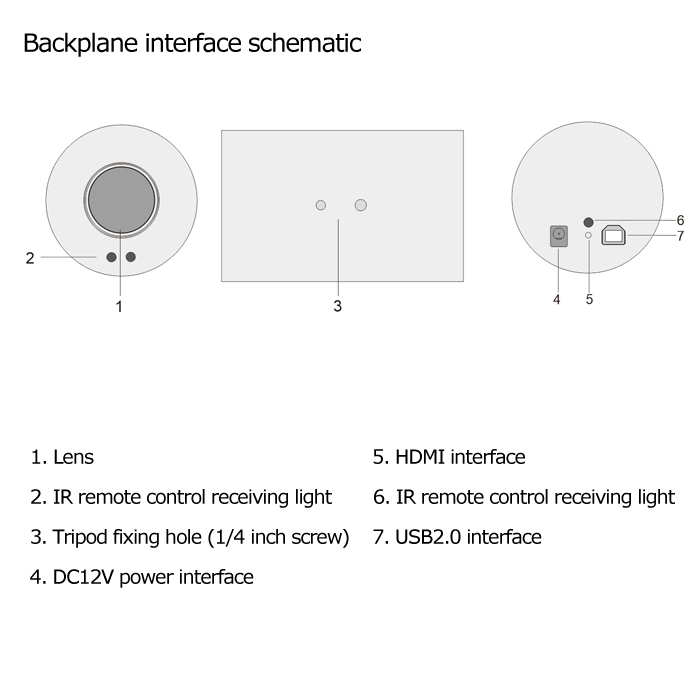

Video output interface 1 CH USB 2.0 interface: B type, Support video signal output;
Video compression format YUV, MJPG, H.264
Control interface USB interface
Other parameters
Operating voltage Power adapter 12V
Operating current Power adapter 0.425
USB 1A(max)
Power consumption 5W(max)
Storage temperature -10℃~+60℃
Storage humidity 20%~90%
Operating temperature -10℃~+50℃
Operating humidity 20%~80%
Usage environment indoors

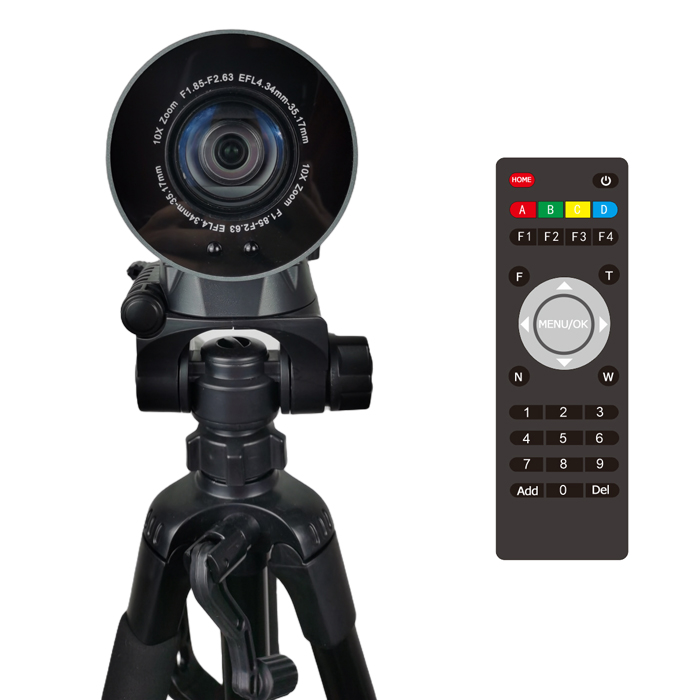

Annex Instruction manual, USB 3.0 cable, power adapter, wireless remote control
