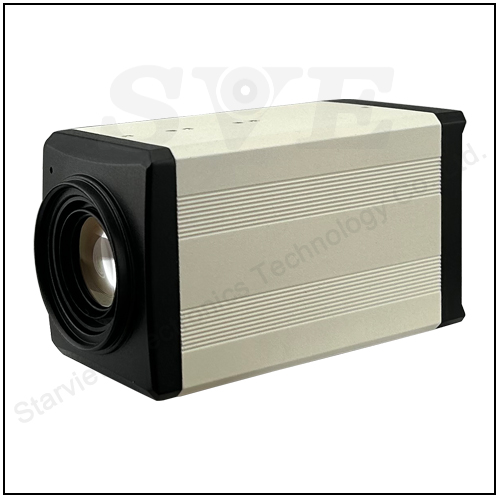

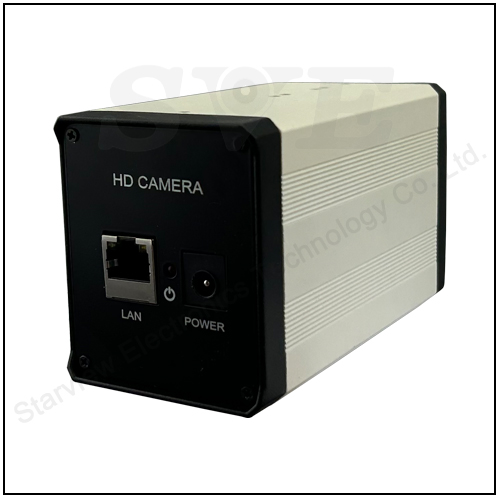

1080P IMX 307 18X optical Zoom D-WDR Defog Mini IP Camera



Key Features
1/2.8", 1080P ultra-low light CMOS Sony IMX307;
Color: 0.01Lux; Black & White: 0.001Lux;
18x optical zoom lens
Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter
D-WDR, Mirror, flip, Defogging
RTSP and Onvif compatible with many third-party NVR
H.264/H.265 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access

Technical parameters

Model No.	SVN-B2A18
Camera
Image Sensor	1/2.8", 1080P ultra-low light CMOS Sony IMX307
Scan system	Progressive scan
Signaling system	Signaling system
Synchronization mode	Internal synchronization
Video output	RJ45
Effective pixels	2.13Mpixels
Imaging resolution	1920 (H) × 1080 (V)
Minimum illumination	color: 0.01Lux; Black & White: 0.001Lux;
signal-to-noise ratio	>44dB
Lens
Optical zoom	18X
Focal length	5.4~96.3mm
Aperture value	F1.5-F3.6
HOV	56~3.1 degrees (wide angle - telescopic)
Close-up distance	100-1500mm (wide angle - telescopic)
Zoom speed	Approx. 5 sec. (optical, wide-angle-telescopic)
Day/night mode	ICR infrared filter type
Function
SD card	supports built-in, up to 256G
Night Vision Mode	Normal IR/Color/Smart
Focus mode	Auto focus / semi auto focus / manual focus
Exposure mode	AUTO/ 1/50(1/60)-1/100,000sec
Day & Night Mode	Auto/Color/B&W
Electronic shutter	AUTO/ 1/50(1/60)-1/100,000sec
White Balance	Auto Tracking/Auto/Indoor/Outdoor/Primary White Balance
Backlight compensation	Off/On
Auto Gain	Auto Gain
Privacy Masking	Off/On
Clarity	adjustable
Contrast ratio	adjustable
Defogging	support
Mirror	Off/On/Rotate/Vertical
Slow shutter	support
2D noise reduction	support
3D noise reduction	High/Medium/Low
External communications	RJ45
General
Network Port	1-RJ45, 100Mbps,
Power Supply	DC 12V 1A
Power Consumption	< 6W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH
Size	130*60*70mm
Weight	450g
