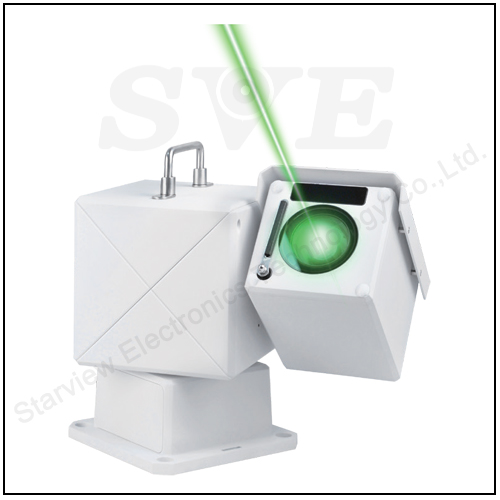

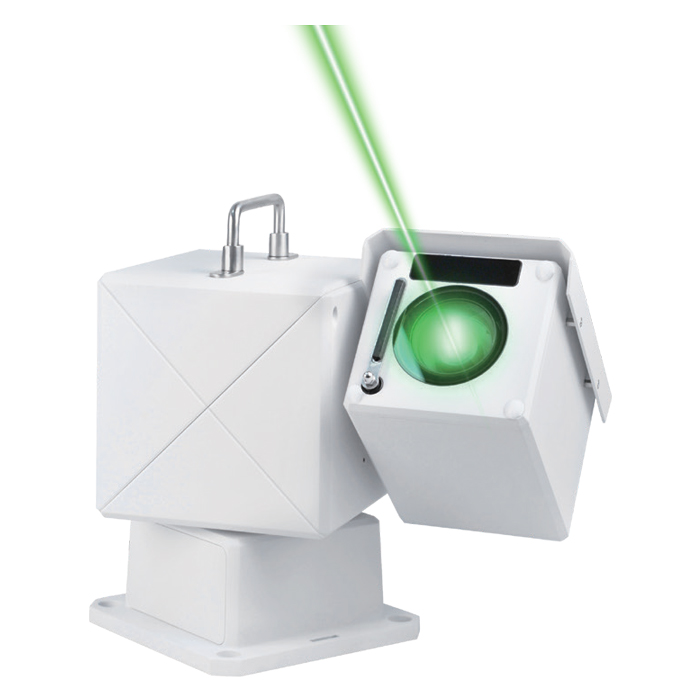

1000m Laser 360° IP67 Worm Gear Drive Bird Repellent Device
 Key Features

  • Laser wavelength: 520nm, Laser power: 1000mW, Irradiation distance: 1000m;
  • Laser color: green/white, customizable;
  • Beam type: Spot, one-line (optional)
  • Omni-directional monitoring and scanning, worm gear drive
  • Operating range: horizontal 360° continuous, vertical -90°~+45° rotation;
  • Protection grade IP67, lightning-proof, surge-proof, electromagnetic shock-proof.
  • Support timed task preset points, pattern scanning, renewal scanning, left and right scanning.
Product features

Birds perceive the moving laser light as a physical threat and flee immediately when the beam passes by. This solution is proven to reduce bird
nuisance by more than 70%. Bird habituation doesn't occur. The system can be programmed and monitored through software.

Bird Repellent Device is a special wavelength laser designed specifically for bird-driving Pan&Tilt, the role of long distance, through the remote control system to achieve long-distance real-time control; in the work without noise and other pollution, will not interfere with other working equipment.

It is designed with IP67 protection grade to meet the needs of bird repelling equipment used outdoors all year round in airports, orchards, farmlands, warehouses and power grids, power transmission and other places.

Technical parameters

Model SV-950BS1X SV-950BS2X SV-950BS0X
Laser function
Laser Type Continuous, intermittent laser
Laser wavelength 520±5nm R638\G525\B450nm
Laser beam type Circular light spot One line Circular light spot
Laser irradiation distance >1000m >300m >500m
Output power >=1000mW >=3000mW
Laser color Green White
Operating Voltage DC12V±10%
Pan&Tilt Features
Rotation range Horizontal: 360° continuous, vertical: -90 to +90°
Rotation speed Horizontal: 0.1~30°/S, Vertical: 0.1~30°/S
Positioning accuracy 0.1°±50%
Preset position 255
Auto Cruise Support
Power failure memory Support power-off state memory function, automatically return to the  Pan&Tilt and lens state before power-off after power on
Watch function On/Off, preset point/cruise scan can be called automatically after staying idle for a specified time (including the idle state entered after power-up)
Real-time angle back transmission Support real-time angle return or query angle return function
Angle control Support
Smart Wiper Remote intelligent control (optional)
Fan/Heating Real-time temperature detection, pure physical detection
Low temperature start Automatic temperature detection, automatic start/stop (-40℃ low temperature start option)
Waterproof respirator Built-in 2 waterproof respirators to reduce fogging and condensation
Communication Baud Rate 2400/4800/9600/19200bps
Communication Interface RS485+RS232
Communication protocols PELCO+VISCA
Pan&Tilt  Interface
Network Interface RJ45 10/100Base-T
Audio Interface 1-channel audio input, 1-channel audio output
Alarm interface 2-channel alarm input/2-channel relay output
Analog video interface 1 channel BNC,75ohm
Power supply DC24V \ AC24V / 3.0A
Power consumption <45W (laser start)
Working environment temperature -40℃~60℃
Humidity of working environment 0~95% (non-condensing)
Protection level IP67, built-in 4000V lightning, surge and surge protection
Outlet method Side exit line

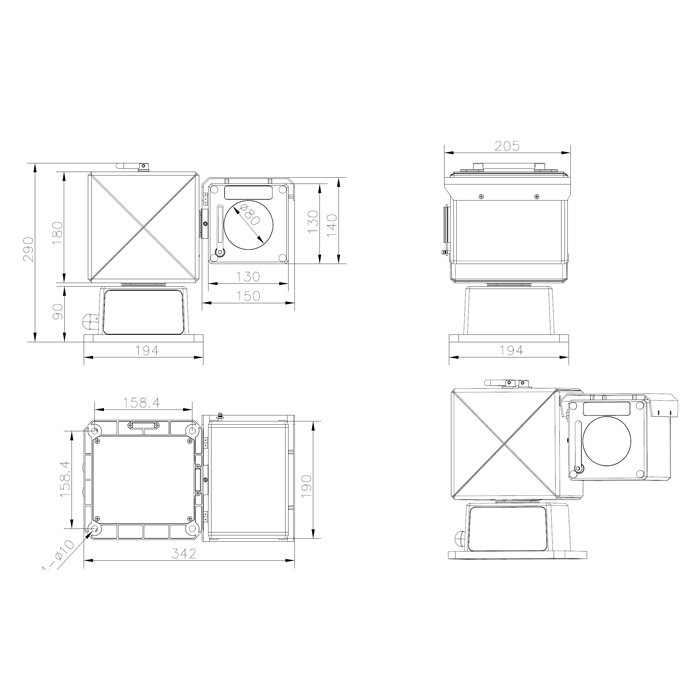

Dimensions (L, W, H) L342mm×W190mm×H290mm
Weight 9kg
Load weight ≤4kg
Load mode Side load
