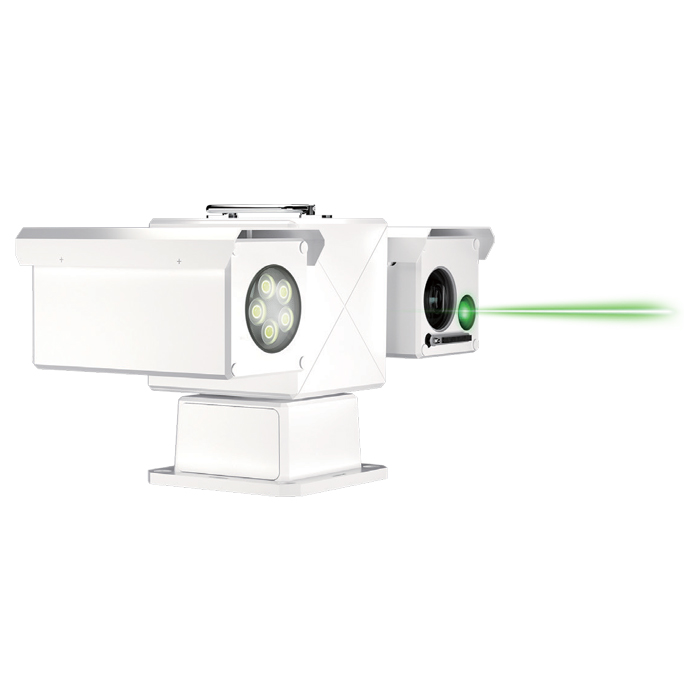

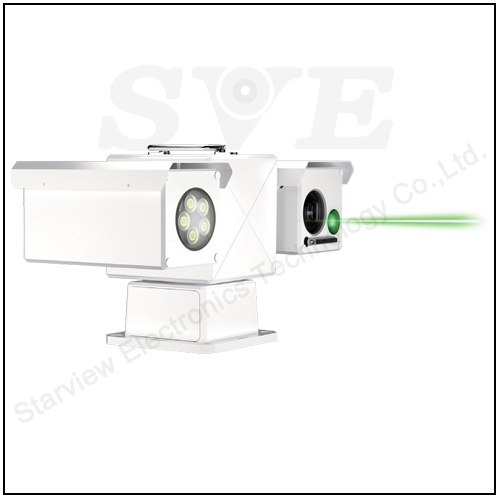

1000m Laser 4MP 52X IP67 Bird Repellent Device

Key Features
  • Laser wavelength: 520nm, Laser power: 1000mW, Irradiation distance: 1000m;
  • Laser color: green/white, customizable;
  • Omni-directional monitoring and scanning, worm gear drive
  • 4MP video resolution, Support AI algorithm, intelligent identification of bird flocks.
  • Support flash explosion function
  • Beam type: Spot, one-line (optional)
  • Operating range: horizontal 360° continuous, vertical -90°~+45° rotation;
  • Protection grade IP67, lightning-proof, surge-proof, electromagnetic shock-proof.
  • Support timed task preset points, pattern scanning, renewal scanning, left and right scanning.
Product features

Birds perceive the moving laser light as a physical threat and flee immediately when the beam passes by. This solution is proven to reduce bird
nuisance by more than 70%. Bird habituation doesn't occur. The system can be programmed and monitored through software.

Bird Repellent Device is a special wavelength laser designed specifically for bird-driving Pan&Tilt, the role of long distance, through the remote control system to achieve long-distance real-time control; in the work without noise and other pollution, will not interfere with other working equipment.

It is designed with IP67 protection grade to meet the needs of bird repelling equipment used outdoors all year round in airports, orchards, farmlands, warehouses and power grids, power transmission and other places.

Technical parameters
Model SV-950BD1B SV-950BD2B SV-950BD0B
Camera function
Image sensor 1/1.8" Progressive Scan CMOS
Effective Pixels 4MP
Minimum Illumination Color: 0.0005 Lux @(F1.4, AGC ON); B&W: 0.0001 Lux @(F1.4, AGC ON)
Main stream resolution 50Hz: 25fps (2560×1440, 1920×1080, 1280×960, 1280×720);
60Hz: 30fps (2560×1440, 1920×1080, 1280×960, 1280×720)
Focal length 6.1-317mm, 52x optical zoom, 16x electronic magnification
Aperture F1.4-F4.7
Horizontal field of view 63.38° - 1.74° (wide angle - telescopic)
Variable speed Approx. 6 seconds (optical, wide angle - telescopic)
Close-up distance 100mm~2000mm (wide angle - telescopic)
Day / night conversion mode ICR infrared filter type
Laser function
Laser Type Continuous, intermittent laser
Laser wavelength 520±5nm R638\G525\B450nm
Laser beam type Circular light spot One line Circular light spot
Laser irradiation distance >1000m >300m >500m
Output power >=1000mW >=3000mW
Laser color Green White
Operating Voltage DC12V±10%
Pan&Tilt Features
Rotation range Horizontal: 360° continuous, vertical: -90 to +90°
Rotation speed Horizontal: 0.1~30°/S, Vertical: 0.1~30°/S
Positioning accuracy 0.1°±50%
Preset position 255
3D positioning Support frame enlargement, target locking field of view center function
Auto Cruise Support focal length and head speed matching
Power failure memory Support power-off state memory function, automatically return to the  Pan&Tilt and lens state before power-off after power on
Watch function On/Off, preset point/cruise scan can be called automatically after staying idle for a specified time (including the idle state entered after power-up)
Drive Structure Worm gear transmission
Remote Upgrade Support both movement and Pan&Tilt remote upgrade (related to movement)
Real-time angle back transmission Support real-time angle return or query angle return function
Information Display Support
Angle control Support
Smart Wiper Remote intelligent control (optional)
Fan/Heating Real-time temperature detection, pure physical detection
Waterproof respirator Built-in 2 waterproof respirators to reduce fogging and condensation
Communication Baud Rate 2400/4800/9600/19200bps
Communication Interface RS485+RS232
Communication protocols PELCO+VISCA
Functional Applications
Bird Identification Bird target recognition, support detection, tracking and capture of moving birds, output the optimal target picture
Intelligent Algorithms Embedded deep learning algorithm, based on massive image and video resources, greatly improves the recognition rate of the target
Flashing light Optional
Network Services
Pan&Tilt  Interface
Network Interface RJ45 10/100Base-T
Audio Interface 1-channel audio input, 1-channel audio output
Alarm interface 2-channel alarm input/2-channel relay output
Analog video interface 1 channel BNC,75ohm
External 485 interface Support adaptive Pelco-P, Pelco-D and other protocols
Ground Line 1 channel
Power supply DC24V \ AC24V / 6.0A
Power consumption <55W (laser start)
Working environment temperature -40ºC~60ºC
Humidity of working environment 0~95% (non-condensing)
Protection level IP67, built-in 4000V lightning, surge and surge protection
Installation method Column-mounted, wall-mounted, corner-mounted
Outlet method Side outlet / lower outlet optional

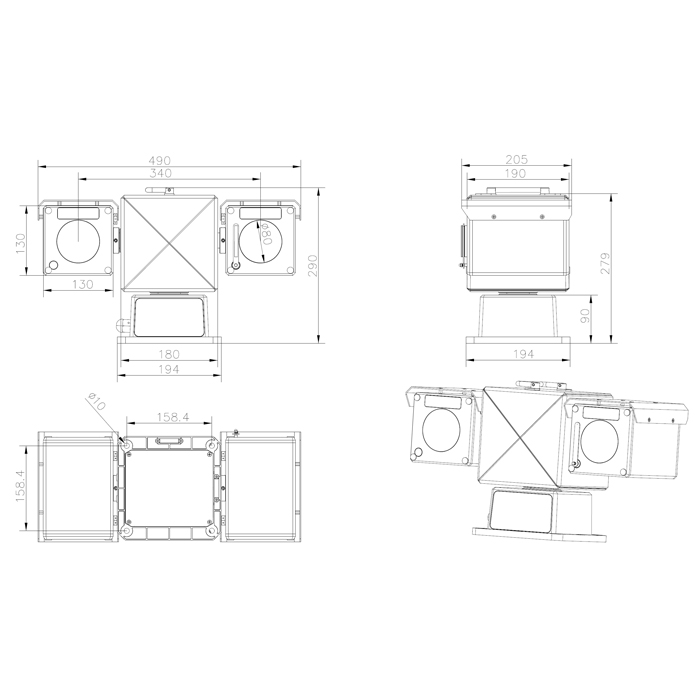

Dimensions (L, W, H) L490mm×W267mm×H290mm
Weight 10kg
Load weight 4kg (including movement shield)
Carrying method Side load
