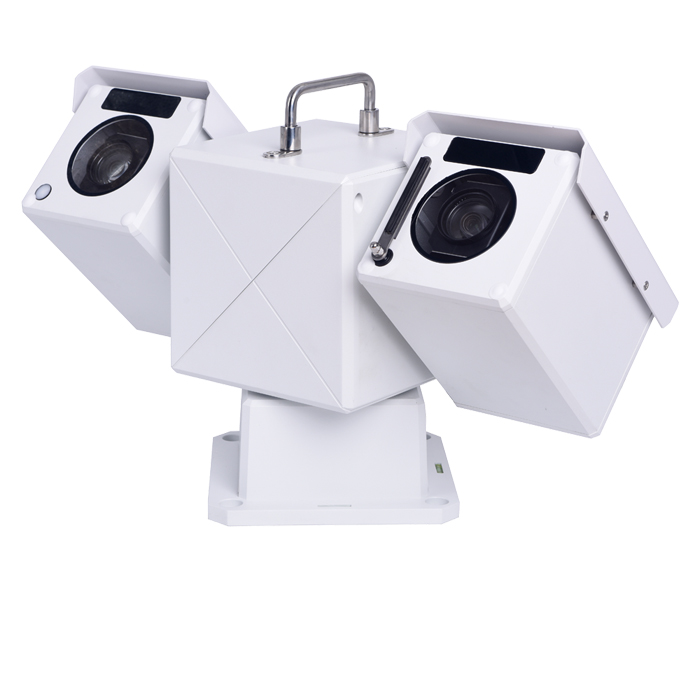

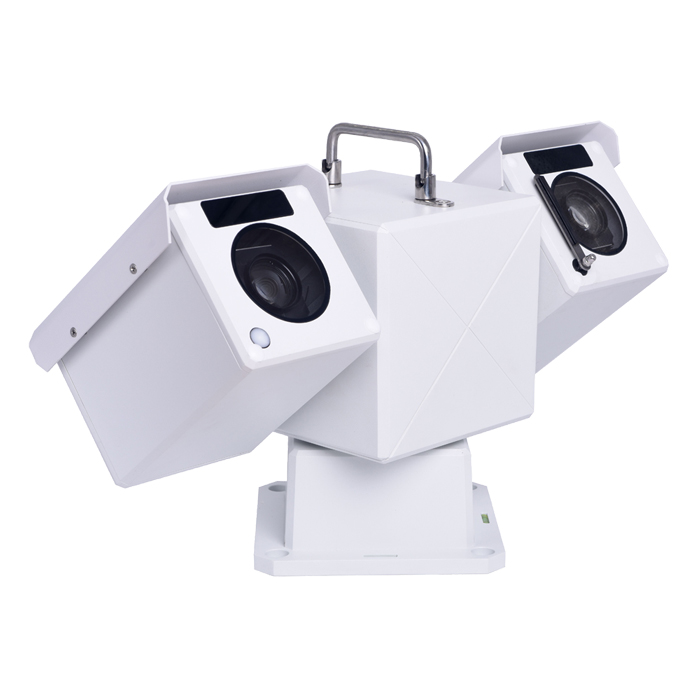

1080P Full-Color Panoramic Fixed-Focus Camera + Full-Color Night Vision Auto-Zoom Camera

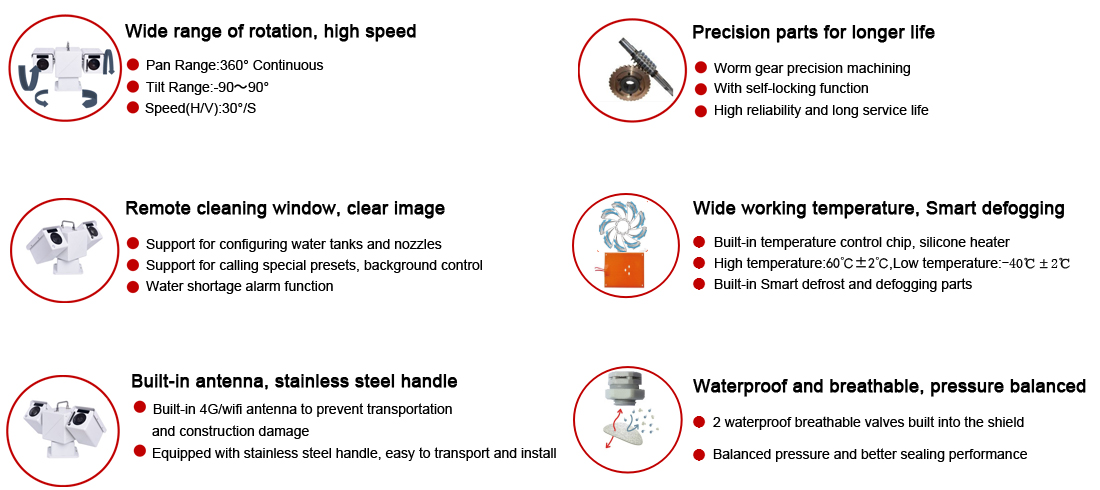

Key Features
  1. Full-color panoramic fixed-focus camera + full-color night vision auto-zoom camera.
  2. Full color imaging at very low illumination.
  3. Full-color panoramic full-area observation + full-color auto-variable detail capture.
  4. Horizontal 360° continuous, vertical -90°~+90°rotation.
  5. Horizontal vertical running speed 0.1-40 ° / S.
  6. Worm gear drive with self-locking function and strong wind resistance.
  7. Support power-off memory function, automatically return to the head and lens state before power-off after power on.
  8. Support 3D positioning function, clickable tracking and zooming through the client/IE.
  9. Outdoor IP67 protection level, lightning, surge and surge protection
Product Highlight
Model SVN-900AD200 SVN-900AD400
Sensor 1/1.8" Super Starlight CMOS
Pixels 2.0MP
Minimum illumination Color:0.0001Lux
Maximum Resolution  2MP
Lens focal length F=6.8~120mm, 20x optical zoom F=6.3~252mm, 40x optical zoom
Lens aperture F1.6-F4.1 F1.4-F4.8
Field of view (D) : 65.3 (Wide); 4.2 (Tele)
(H) : 58.5 (Wide); 3.7 (Tele)
(V) : 35.0 (Wide); 2.1 (Tele)
(D) : 73.0 (Wide); 1.9 (Tele)
(H) : 65.3 (Wide); 1.7 (Tele)
(V) : 38.4 (Wide); 1.0 (Tele)
Frame Rate 10fps/30fps real time video
Video Compression H.265/H.264
White balance Automatic
Wide Dynamic 120dB
Sensor 1/2" Super Starlight CMOS
Pixel 2.0MP
Minimum illumination Color:0.0001Lux
Lens focal length Equivalent 290mm
Aperture F1.6
Horizontal field of view 4.8°
Color Palette 9 kinds of palettes to choose from (including iron red, rainbow, black and white, etc.), customizable color scale
Rotation range Horizontal 360° continuous, vertical -90 to +90°
Rotation speed Horizontal, vertical 0.1~40°/S
Positioning accuracy 0.1°±50%
Preset 255
3D function Support frame enlargement, target locking field of view center function
Automatic cruise Support focal length and head speed matching
Power failure memory Support power-off state memory function, automatically return to the head and lens state before power-off after power on
Watch function On/Off, preset point/cruise scan can stay in idle state after specified time
Automatic recall (including idle state entered after power-up)
Transmission structure Worm gear transmission
Real-time angle back transmission Support real-time angle return or query angle return function
Information Display Support
Angle control Support
Smart Wiper Remote intelligent control
Fan/Heating Real-time temperature detection; low temperature start, pure physical detection
Waterproof respirator Built-in 2 waterproof respirators to reduce fogging and condensation
Communication Baud Rate 2400/4800/9600/19200bps
Communication Interface RS485+RS232
Communication protocols PELCO+VISCA
Access Protocol ONVIF/GB28181/GA1400
Network Interface RJ4510/100Base-T/single interface dual IP, single interface single IP optional
Audio Interface 1-channel audio input, 1-channel audio output (optional)
Alarm interface 2-channel alarm input/2-channel relay output (optional)
External 485 interface Support adaptive Pelco-P, Pelco-D and other protocols
Ground Line Grounded all the way
Power supply DC/AC24V/6.0A
Power consumption 110W (low temperature start)
Working environment temperature -40ºC~60ºC
Humidity of working environment 0~95% (non-condensing)
Protection level IP67, built-in 4000V lightning, surge and surge protection
Installation method Column-mounted, wall-mounted, corner-mounted
Outlet method Side outlet / lower outlet optional

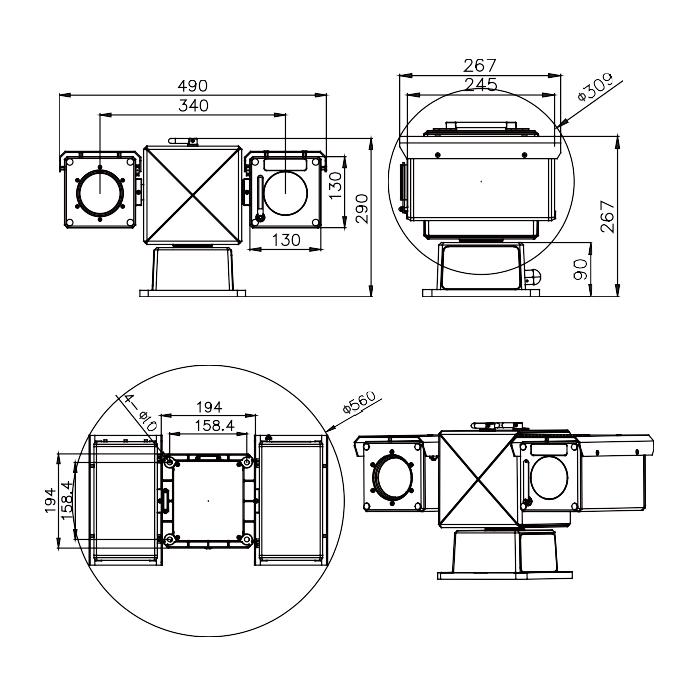

Dimension L490mm×W267mm×H290mm
Product weight 10kg
Load weight 4kg
Carrying method Side load
