4K30fps 10X Optical Zoom USB3.0 HDMI Live Streaming Camera

Product Features:
Full HD images:, With 1/2.8-inch 8MP SONY IMX415 image sensor, maximum resolution 3840*2160@30pfs, USB3.0, HDMIVideo output。
Optical zoom lens: 10x optical zoom,58° wide angle lens..
Rich video interface: Support HDMI (4K30) , USB3.0 (4K30) interface video output;
Leading autofocus technology: The advanced focusing algorithm is used to make the lens focus quickly, accurately and stably.
Portrait and horizontal screens: Support horizontal and vertical screen installation mode to better meet the playback needs of customers for horizontal and vertical screens.
Professional graphic style: It can well support beauty and jewelry style live broadcast, and adjust the best image effect for the live broadcast scene.
Multiple video compression standards: The interface supports YUY2, MJPG, H264, and video compression formats.
Low noise and high signal-to-noise ratio: The low-noise CMOS effectively ensures the ultra-high signal-to-noise ratio of the camera video; Advanced 2D and 3D noise reduction technology is used to further reduce noise while ensuring image clarity.
Easy to use: No need to download the driver, connect 12V power to the webcam, USB output plug and play, with a convenient and simple user experience;
Built-in camera menu: you can adjust various parameters according to the environment, for example, white balance, aperture, shutter, RBG, etc.

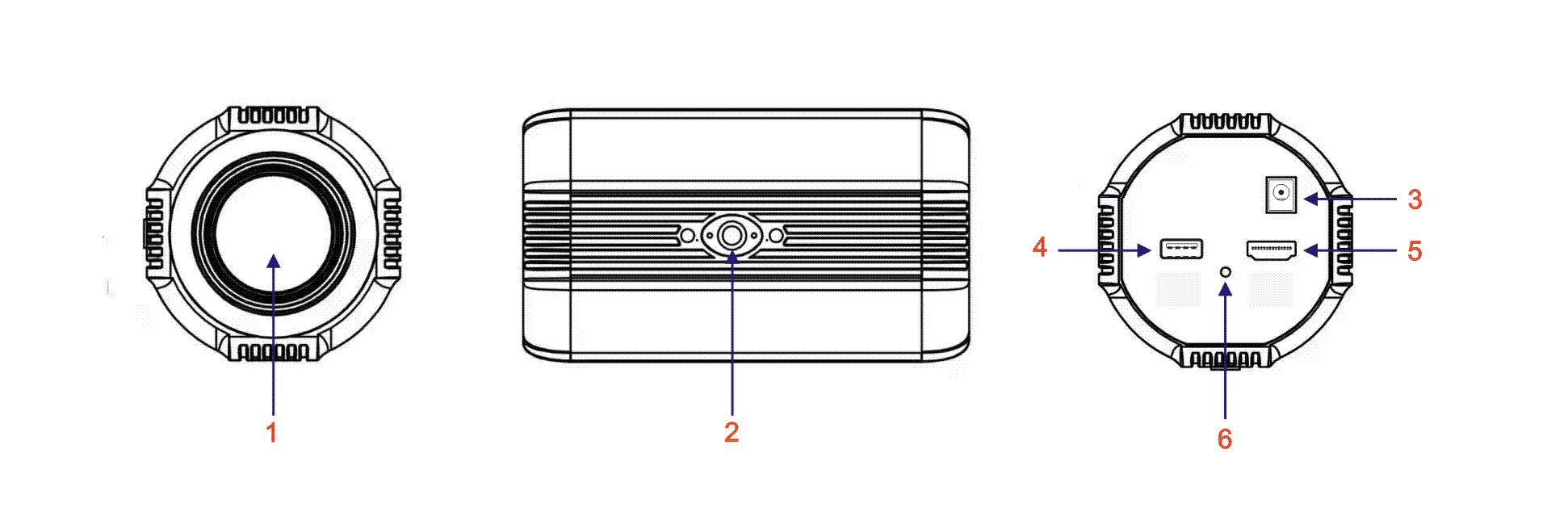

Product appearance:

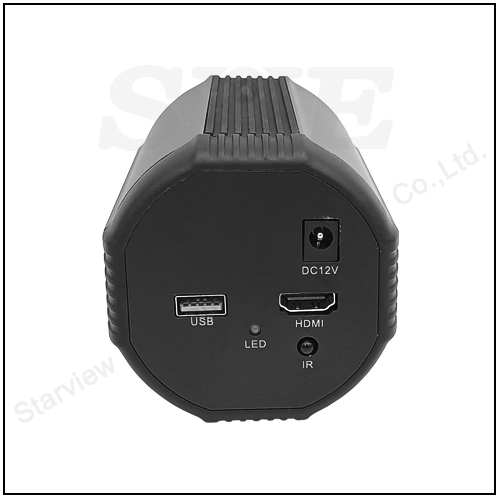

1: 10x lens 2: 1/4 inch screw 3: DC12V interface
4: USB3.0 interface   5: HDMI interface   6: Power indicator

Technical parameters:

Parameters/models SVN-Z4K10UH
Camera, lens parameters
Image sensor 1/2.8 Sony IMX415 Image sensor
Effective pixels 8MP; 3840*2160
Video signal USB3.0 output supports video formats:
MJPG/H.264: 4K 3840*2160@30fps, 1280×720@30fps, 1024×576@30fps, 960×540@30fps, 800×448@30fps, 640×360@30fps, 640×480@30fps, 320×176@30fps
YUY2/NV12: 2560*14400@30fps, 1280×720@30fps, 1024×576@30fps, 960×540@30fps, 800×448@30fps, 640×360@30fps, 640×480@30fps, 320×176P30fps
HDMI output supports video formats: 4K 3840*2160@30fps, 1080P@30fps, 1080P@25fps, 720P@60fps, 720P@50fps
Visual angle Horizontal viewing angle 3.64°~58°(10x optical zoom)
Focal length F=5.5~55mm
Aperture F1.5~F3.0
Optical zoom 10X
Minimum illumination 0.5Lux(F1.8, AGC ON)
Digital noise reduction 2D & 3D digital noise reduction
Super Auto Noise Reduction On/Off
White balance Auto/manual/one-touch white balance /3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus Auto/manual/one-key focus;
Exposure Automatic/Manual
BLC On/off
Signal-to-noise ratio >50dB
Vertical screen switch On/off
Minimum object distance 30cm(Wide)~150cm(Narrow)
Interface functional performance
Video output interface 1 USB3.0 interface: A-port, 1 HDMI interface
Video Support Formats MJPG, YUY2, H264, NV12
Variable control Wireless remote control (infrared signal)
Control Interface
Other parameters
Voltage 12V
Current 0.425A
Power consumption 10W(Max)
Storage temperature -10℃~+60℃
Storage humidity 20%~90%
Operating temperature -10℃~+50℃
Operating humidity 20%~80%

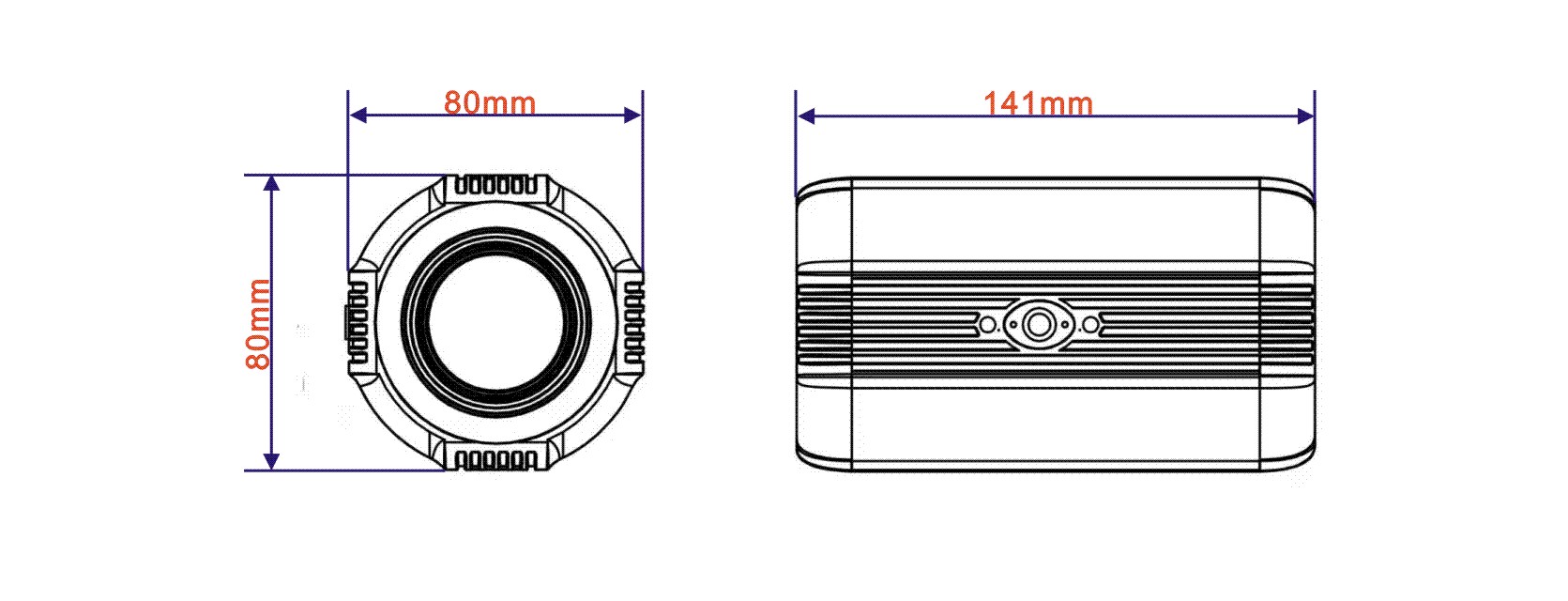

Dimensions (WxHxD) 141mm×80mm×80mm
Weight 0.65kg
Installation method Self-contained 1/4 screw holes, tripod mounting
Usage environment indoors
Annex Instruction manual, warranty card, USB 3.0 cable, power adapter, wireless remote control
