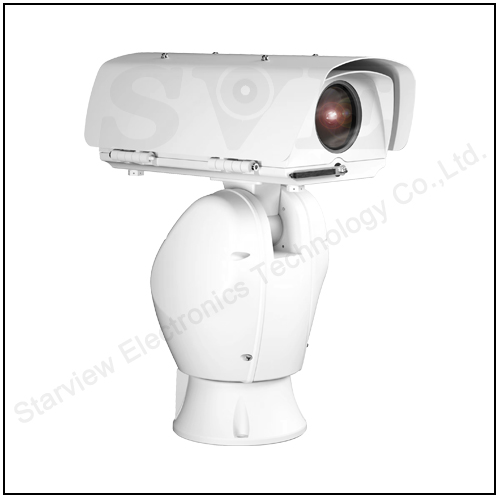

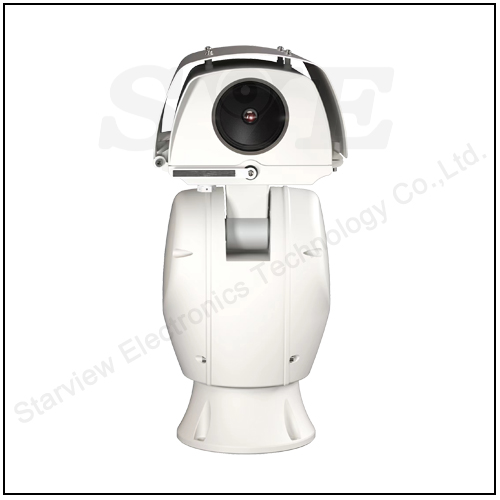

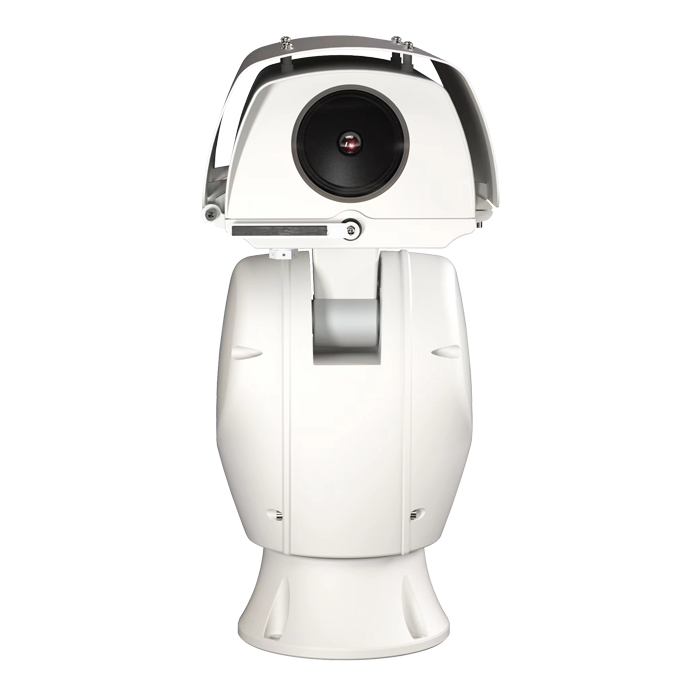

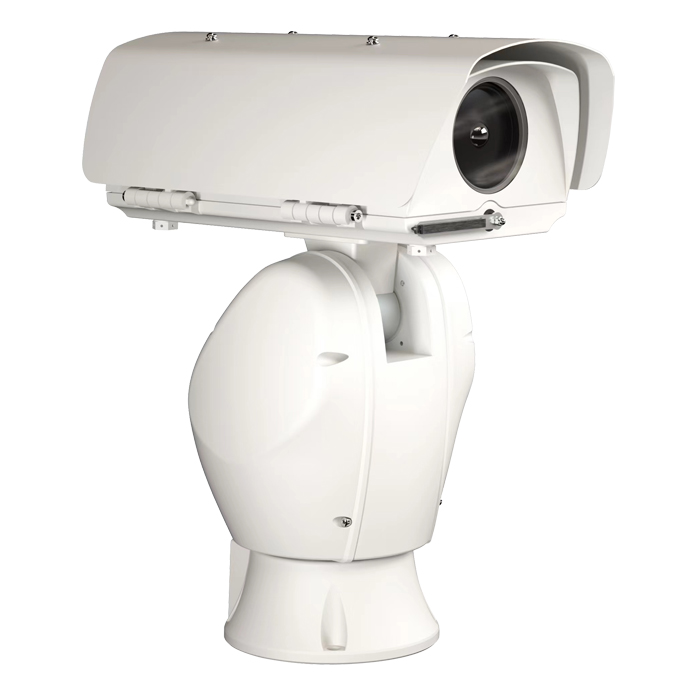

1080P 800M AI Full-Color Night Vision 20X Auto-Zoom Camera IP66 IP PTZ Camera
imaging technology, through the separation of noise and real signal from the very low light signal deep learning AI algorithm; in the noise reduction at the same time the real signal is enhanced to the normal light environment intensity, the signal to noise ratio is effectively improved to achieve normal imaging in the very low light environment.
Mainly used in urban high-altitude lookout, border and sea defense, sea chokepoints, road monitoring, maritime farming, parks, industrial parks and other places.
Technical parameters
Model SVN-20FX800AS2
Sensor 1/1.8" Progressive Scan CMOS
Pixels 2.0MP
Minimum illumination Color:0.0001Lux
Frame Rate 10fps/30fps real time video
Lens focal length F=6.8~120mm, 20x optical zoom
Lens aperture F1.6-F4.1
Horizontal field of view 58.5°-3.7°
Recognition distance 800M Full color night vision
Video Compression H.265/H.264
White balance Automatic
Gain control Automatic
Wide Dynamic 120dB
Signal-to-noise ratio 0.01 LUX: S/N ratio  30dB, 0.01 LUX: S/N ratio  20dB.
AI digital noise reduction Support-
Exposure Mode Automatic
Color reproduction 0.01 LUX: ΔEab < 20, 0.001 LUX: ΔEab < 30 (frame rate  10fps)
Rotation speed Horizontal 0.1 to 100°/S, vertical 0.1 to 50°/S
Positioning accuracy 0.1°±50%
Preset 255
3D function Support frame enlargement, target locking field of view center function (optional)
Automatic cruise Support focal length and head speed matching
Power failure memory Support power-off state memory function, automatically return to the head and lens state before power-off after power on
Watch function On/Off, preset point/cruise scan can stay in idle state after specified time
Automatic recall (including idle state entered after power-up)
Remote Upgrade Support both movement and head remote upgrade (related to movement)
Real-time angle back transmission Support real-time angle return or query angle return function
Information Display Support
Angle control Support
Smart Wiper Remote intelligent control
Fan/Heating Real-time temperature detection; low temperature start, pure physical detection
Waterproof respirator Built-in 2 waterproof respirators to reduce fogging and condensation
Communication Baud Rate 2400/4800/9600/19200bps
Communication Interface RS485+RS232
Communication protocols PELCO+VISCA
Access Protocol ONVIF/GB28181
Network Interface RJ4510/100Base-T
Audio Interface 1-channel audio input, 1-channel audio output (optional)
Alarm interface 2-channel alarm input/2-channel relay output (optional)
Analog video interface Not supported
External 485 interface Support adaptive Pelco-P, Pelco-D and other protocols
Ground Line Grounded all the way
Power supply DC/AC24V/3.0A
Power consumption <90W( Low temperature start)
Working environment temperature -40ºC~60ºC
Humidity of working environment 0~95% (non-condensing)
Protection level IP66, built-in 4000V lightning, surge and surge protection

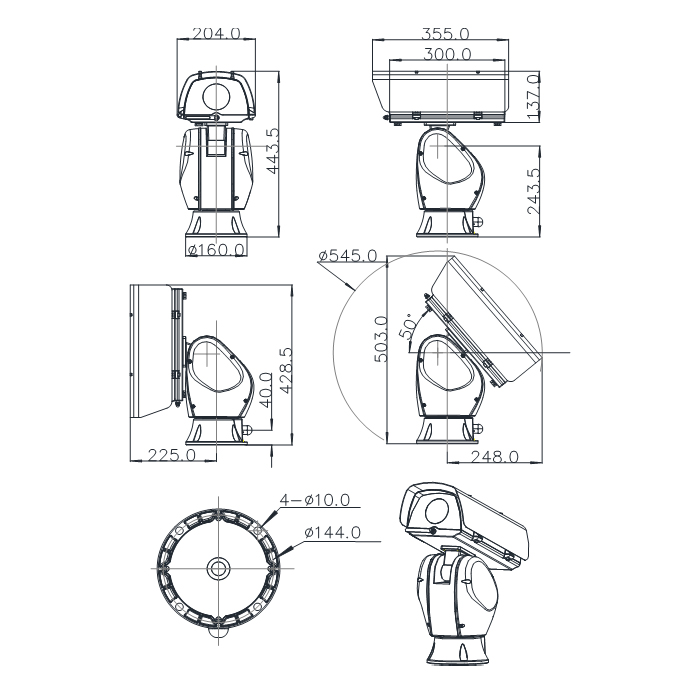

Dimension L355mm×W204mm×H443mm
Product weight 9kg
Load weight 4kg (including movement shield)
