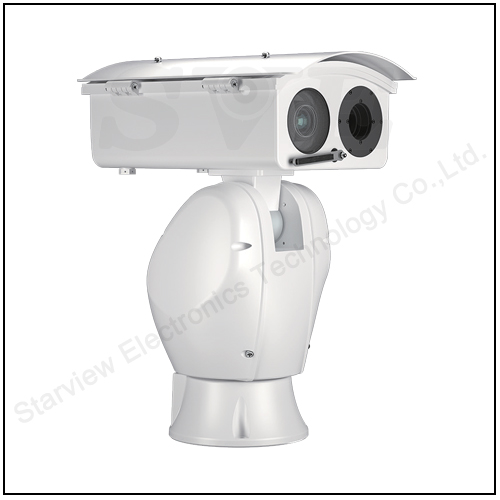

33X 4MP Visible + 640*512 17μm Thermal imaging Camera
Key Features
  • 50mm Len 640×512/17μm Thermal imaging Camera.
  • 33X(4.8-158 mm) Optical Zoom 4MP visible Camera.
  • Intelligent algorithms for visible light flame detection, bird recognition, vessel recognition, etc.
  • Thermal imager supports intelligent high-temperature warning function, adjustable multi-stop threshold, and menu function selection.
  • Supports canceling the germanium glass viewport.
  • Horizontal 360° continuous, vertical -90°~+45°rotation.
  • Support 3D positioning function, clickable tracking and zooming through the client/IE.
  • Outdoor IP66 protection level, lightning, surge and surge protection.
  • It can be widely used in straw burning, fishery ban, forest fire prevention, perimeter oil field, border and sea defense.
Technical parameters
Model SVN-33P50TX900
Visible Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Pixels 4.0MP
Minimum illumination Color:0.0005 Lux @(F1.6,AGC ON).
Black & White:0.001 Lux @(F1.6,AGC ON)
Master Stream Resolution 50Hz: 25fps (2560x1440,1920×1080, 1280×960, 1280×720);
60Hz: 30fps (2560x1440,1920×1080,1280×960, 1280×720)
Focal length F=4.8~158mm, 33x optical zoom
Lens aperture F1.6-F4.3
Horizontal field of view 58.9°-2.4°(wide-angle ~ telescopic)
Zoom speed Approx. 3.5S (wide-angle ~ telescopic, optical zoom)
Close-up distance 100mm~1500mm (Wide-angle - Telescopic)
Day/Night Switching Mode ICR Infrared Filter Type

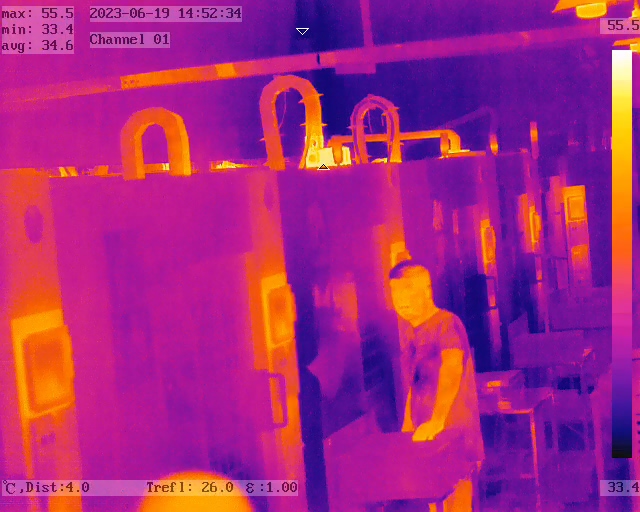

Thermal imager
Detector type Amorphous silicon infrared microbolometer
Pixels 640×512/17μm
Sensitivity 35mk@ 25ºC
Working band 8~14μm
Focal length 50mm
Thermal imaging mode HDR (Wide Dynamic) Mode, Sea & Sky Mode, Sky & Earth Mode
Palette 9 color palettes to choose from (including iron red, rainbow, black and white, etc.), with customizable color scales
Rotation range Horizontal: 360°continuous, vertical: -90 to 45°
Rotation speed Horizontal: 0.1~100°/S, Vertical: 0.1~50°/S
Preset 255
3D function Support frame enlargement, target locking field of view center function
Automatic cruise Support focal length and PTZ speed matching
Power failure memory Support power-off state memory function, automatically return to the PTZ and lens state before power-off after power on
Watch function On/Off, preset point/cruise scan can stay in idle state after specified time
Automatic recall (including idle state entered after power-up)

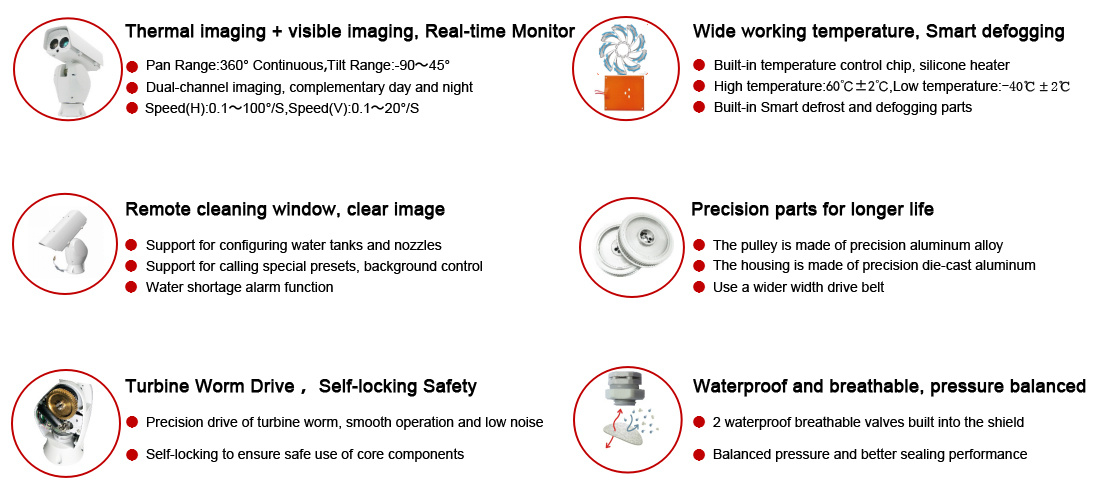

Transmission structure Metal pulley + Belt
Remote Upgrade Support both movement and PTZ remote upgrade
Real-time angle back transmission Support real-time angle return or query angle return function
Information Display Support
Angle control Support
Smart Wiper Remote intelligent control
Fan/Heating Real-time temperature detection; low temperature start, pure physical detection
Waterproof respirator Built-in 2 waterproof respirators to reduce fogging and condensation
Communication Baud Rate 2400/4800/9600/19200bps
Communication Interface RS485+RS232
Communication protocols PELCO+VISCA
PTZ Interface
Network Interface RJ4510/100Base-T/Single Interface Dual IP
Audio Interface 1-channel audio input, 1-channel audio output (optional)
Alarm interface 2-channel alarm input/2-channel relay output (optional)
Analog video interface 1 channel BNC, 75ohm (optional)
External 485 interface Support adaptive Pelco-P, Pelco-D and other protocols
Ground Line Grounded
Power supply DC/AC24V 6.0A
Power consumption 60W/90W( Low temperature start)
Working environment temperature -40ºC~60ºC
Humidity of working environment 0~95% (non-condensing)
Protection level IP67, built-in 4000V lightning, surge and surge protection
Installation Pillar, wall and corner mounting
Outlet Side outlet/lower outlet (optional)

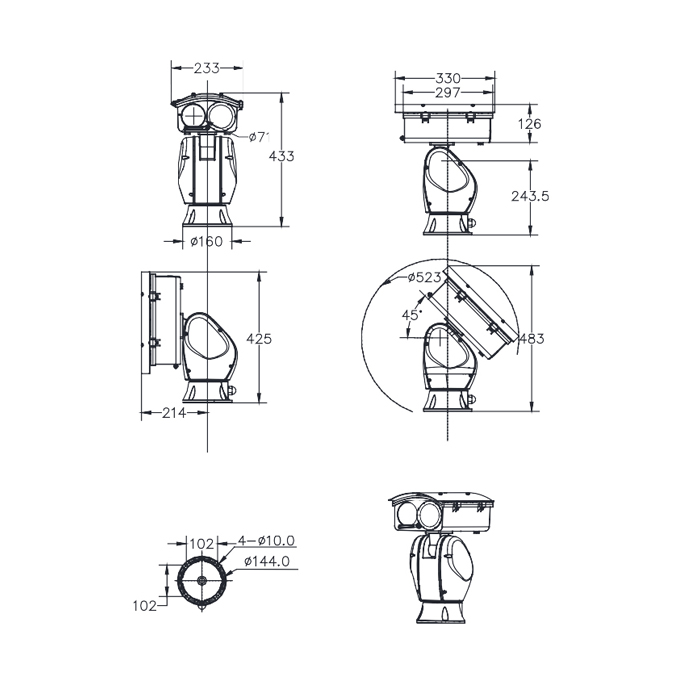

Dimension L330mm×W233mm×H433mm
Product weight ≤10kg
Load weight ≤4kg (including movement shield)
Carrying method Toploading
