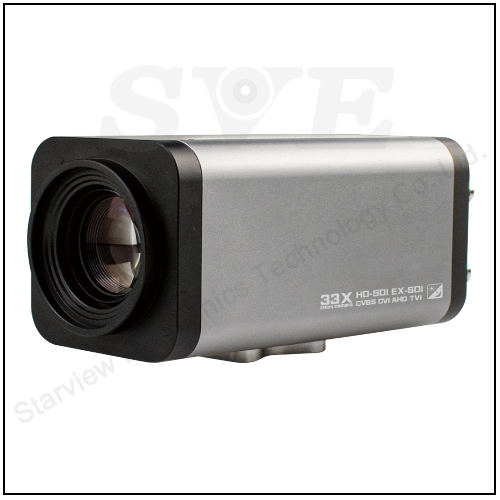

1080P30fps 33X Optical Zoom HD /EX-SDI Camera
Key Features

Intelligent OSD (Menu) operation system: With strong DSP memory function, data will not lose when come across with outages.
High resolution, Super sensitivity: Using Japan SONY SENSOR, super sensitivity with good color reducibility. 1/2.8“ size, be able to display FULL SCREEN 1080P resolution image. It self Adapt to the changes from a wider range of color temperature. And adopting unique digital processing technology. Excellent low illuminationimage quality.
HLI(Light inhibition): Aiming at highlight zone to proceed with compensation in order to make fine exposure.
WDR(Intelligent Wide Dynamic Range (High/Middle/Low): If there is a large contrast between light and dark in the same picture, it will cause overexposure and overdarkness, and the image can be significantly improved with the function of intelligent WDR.
Menu Options: Special patent design, display features in the way of icon, intuitive, so that users can be clear at a glance set the content. Chinese/English/Japanese/Korean 4 optional languages.
BLC(Back Light compensation): While there are bright light on the back of the subject, this product can carry out backlight compensation on the dark part of the subject result from backlighting. This aims at keeping overall brightness at balance.

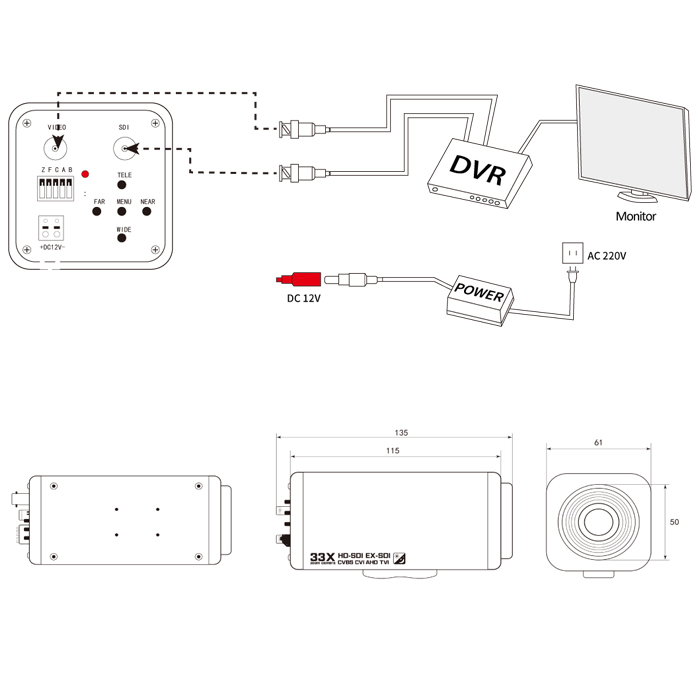

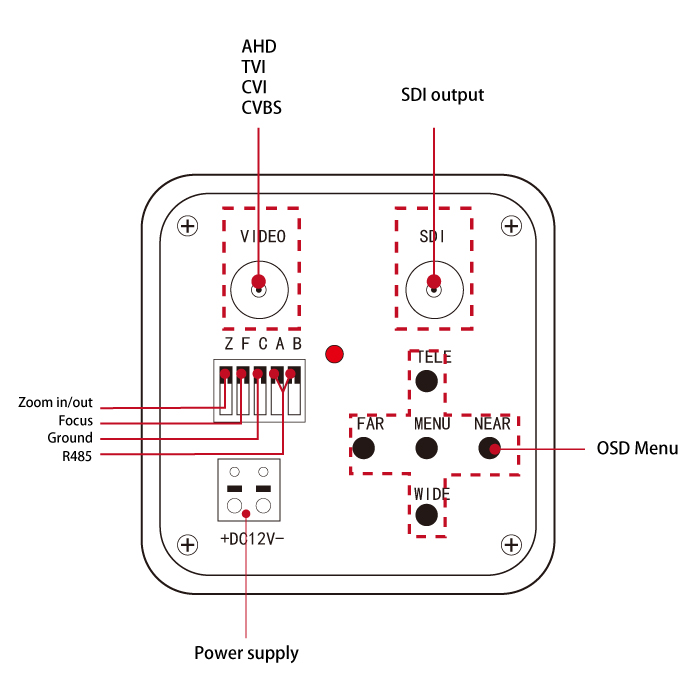

Signal Output: HD-SDI, EX-SDI, CVI, TVI, CVBS, AHD ,Multi-signal output to switch through dial-up, if haven't DVR,can connect the converter directly to the monitor for viewing.
Other Function: 3D-DNR, Super sensitivity(Sens-up).
Power Supply: The voltage range is 10V-16V.

Product overview
Model No. SV-LN33XN200W
Image Sensor 1/2.8" CMOS Sensor
Total Pixels 1945 (H)x 1109 (V) = 2.16M Pixels
Effective Pixels 1945 (H)x 1097 (V) = 2.13M Pixels
Resolution 1080p@30/25fps, 720p@60/50fps, 720p@30/25
Min-illumination Color 0.24 lux/ DSS 0.125 lux White0.001ux/ DSS 0.0025 lux
Lens 33X Optical Zoom
Focal Length f= 4.5mm – 148.5mm
Iris H=62.1°(W)-2.28°(T), V=36.2°(W)-1.29°(T), D=67.28°(W)-2.61°(T)
Angle of view Max.62.0° * 54.8° * 31.5° Min.4.1° * 53.59° * 2.03°
Exposure Brightness(0-20)/Sens-up(x2-x32)
Day&Night Auto(ICR)/Color/B&W/External
ACE OFF/Low/Middle/High
SNR (dB) > 42dB (AGC off)
AWB Auto/Manual/Indoor/Outdoor
Motion Detection OFF/ON(3 Level)
Privacy Mask OFF/ON(24 Level)
Language Chinese(simplified&traditional)/English/Japanese/Korean
3D DNR Auto/OFF/Low/Middle/High
Digital Slow Shutter OFF/x2 /x4/X8/X16/X32
Iris Control OFF/ON
Shutter Speed 1/30(25) - 1/60,000 sec
AGC 0-20 Selectable
Effects OFF/Horizontal/Vertical
Power Supply (V) DC12V+ 10%
Work Temperature (°C) -10°C- +50°C / 0% - 90% RH
Work Current (mA) Max.350mA/Normal 130mA
Size (mm) 61(Wj x 61(H) x 115(L) mm
Weight (g) 0.42Kg
