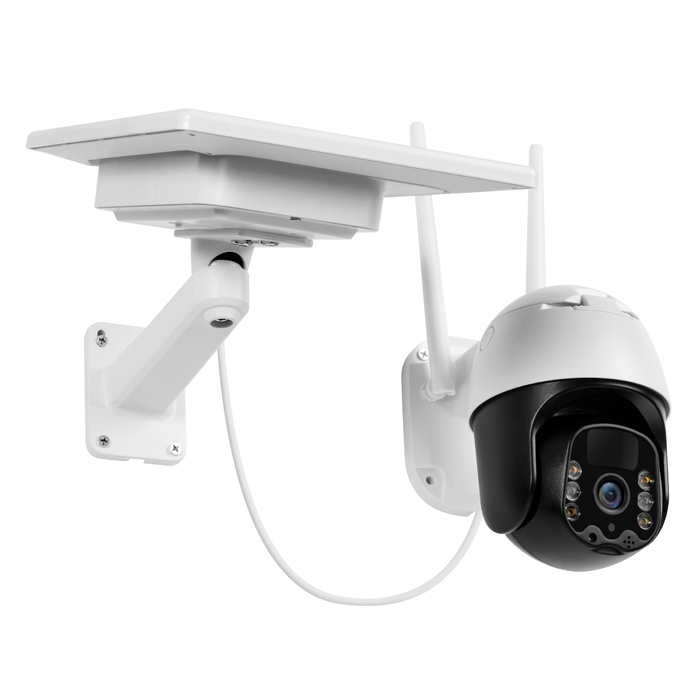

1080P Solar Powered 4G Motion Actived PTZ Camera
Key Features
  • Power Free: Solar Powered & Battery Inside.
  • Wire(Wifi) Free:only 4G.
  • Living Video: Remote View anytime anywhere.
  • HiSilicon 3516E V200 Soc Chipset with Extreme Low consumption and Excellent Night View.
  • Motion Actived: PIR Motion Distance up to 32FT&Accurate Human Detection.
  • 1080P Full HD: Color Night Vision with Spotlight.
  • Easy installation: All-in-one Installation with Screwsdriver Only.
  • Pan&Tilt: Pan 320 degree&Tilt 90 degree.
  • 12000mAh Longer Battery Life to Ensure Working Well.
  • APP: Camhipro
Technical parameters
Name Solar Powered 4G Motion Actived Security PTZ Camera
Model SVN-GHL24G-200
Motion HMD (PIR Motion And Human Detection)
Chipset HI3516ev200
Sensor SC2335, 1/2.7"
4G APN/ European version
Pan&Tilt Pan:320º, Tilt:90º
Resolution 1920*1080
Lens 4mm
Wake Time 0.6 Seconds
Battery 2000mAh*6pcs 18650 Li-ion Cell
Solar Panel 7.6W
Incharge 1455mA
Night-Led White & IR Red Led
White Led 1W  LED
IR Led 1W  LED
TF Card Support up to 128GB
Motion Distance 0-7M
Motion Angle 120º
Temperature -15 TO 60
Humidity 0%-90%RH
Power Solar&Battery
Standy Power Consumption 0.00005W
Working Power Consumption DAY2WNIGHT2.8W
Waterproof IP66
Accessories Camera*1, Solar Panel*1, Bracket*1, Screw Bag*1, Manual Book*1, Tools
Camera Size 220mm*170mm*115mm
Camera Weight 0.52kg
Solar Panel Size 243mm*183mm*45mm
Solar Panel Weight 0.87kg (Including 6PCS 18650 Battery)
Packing Size 288mm*207mm*148mm
G.W/PCS 1.72kg (Including 6PCS 18650 Battery)
Outer Box Size L775mm*W606mm*H444mm
G.W/CTN 22.6kg (Including Battery)
Quantiy/CTN 12PCS/CTN

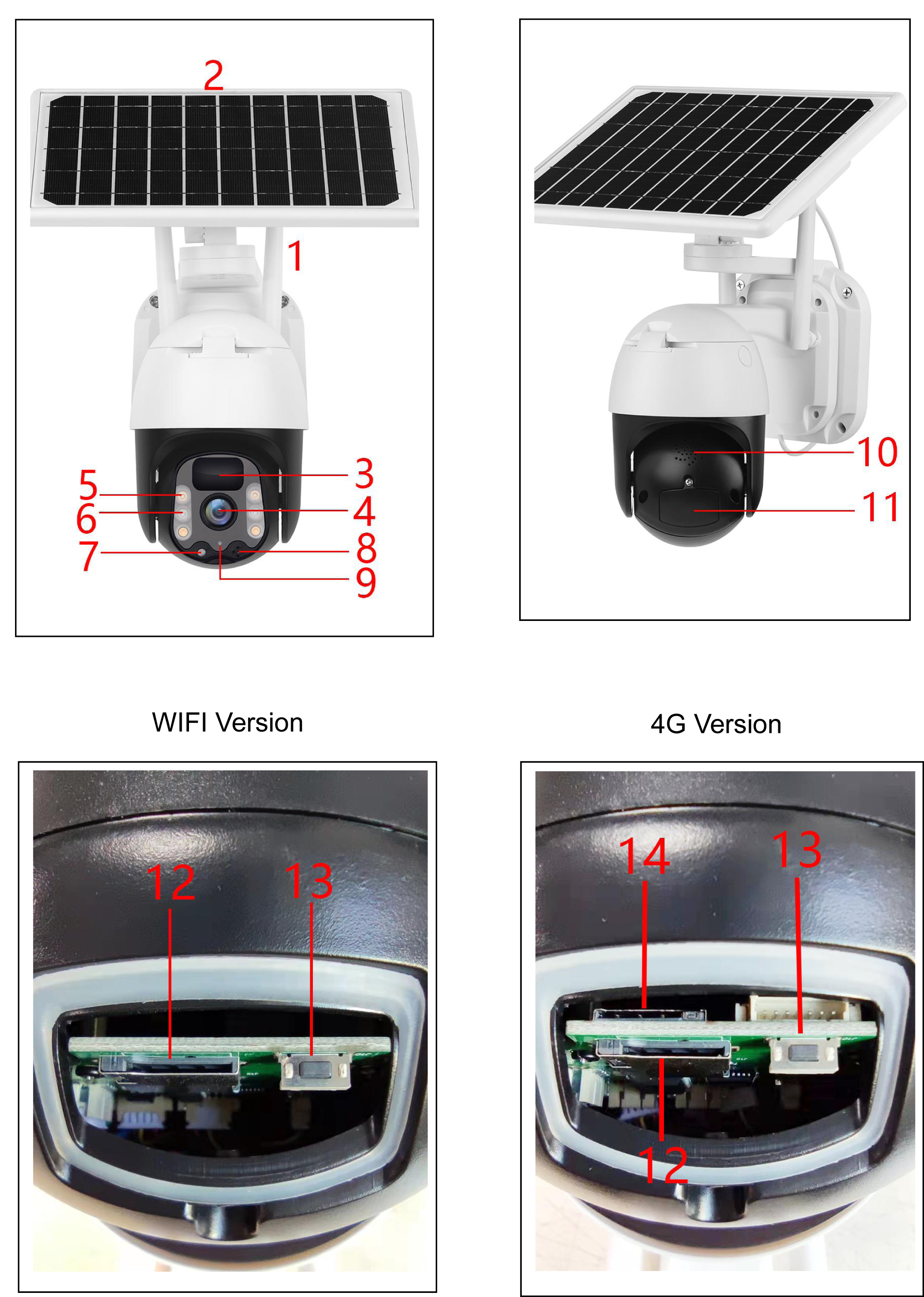

Appearance introduction
1. WIFI & 4G antenna.
2. Solar panel: charge the main machine, please install in direct sunlight.
3. PIR (Human Motion Detection) Sensor: When a person or moving object movesin front of the device, a trigger signal can be generated to the host.
4. Lens: acquisition of images and video.
5. White light: at night when the lack of light to the camera light, but also inductionstreet lamp.
6. Infrared light: if you do not want white light mode, you can manually adjust to infrared light mode.
7. Light sense: At night or light less than 10 Lux, start white light or infrared light.
8. pickup: for listening to sounds.
9. Indicator:
a. Red light: the red light flashes after the camera starts, starts to connect WIFI & 4G network, the red light goes out after the connection is successful.
b. Blue light: The blue light flashes slowly after the connection is successful (ifthe red and blue light flashes alternately, please check if the 4 G flow card isplugged in or there is no flow).
10. Hororn: Voice intercom.
11. TF and SIM caps: Uninstall SIM and TF cards.
12. TF card slot: support 8 G/16G/32G/64G( insert please format first).
13. Reset key: Press and hold this button for 5 seconds to hear the "reset prompt" after the release.
14. SIM card slot: support 4G SIM card (Please ensure that the 4G card flow is normal).
