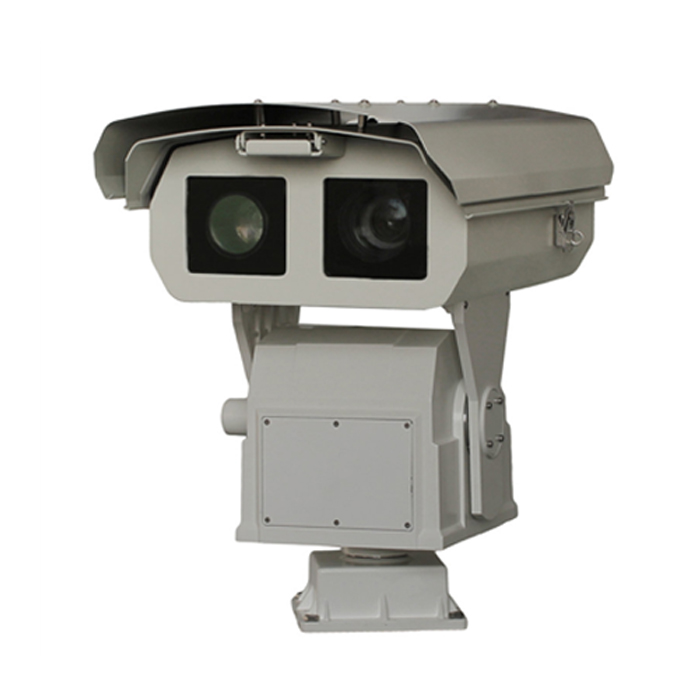

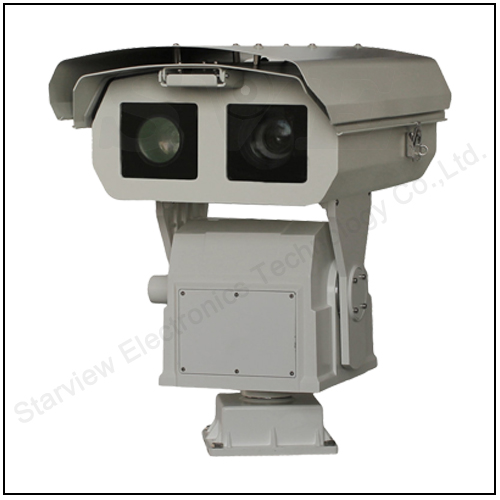

96X Optical Zoom 4MP 5km IR Lasers IP PTZ Camera
Key Features

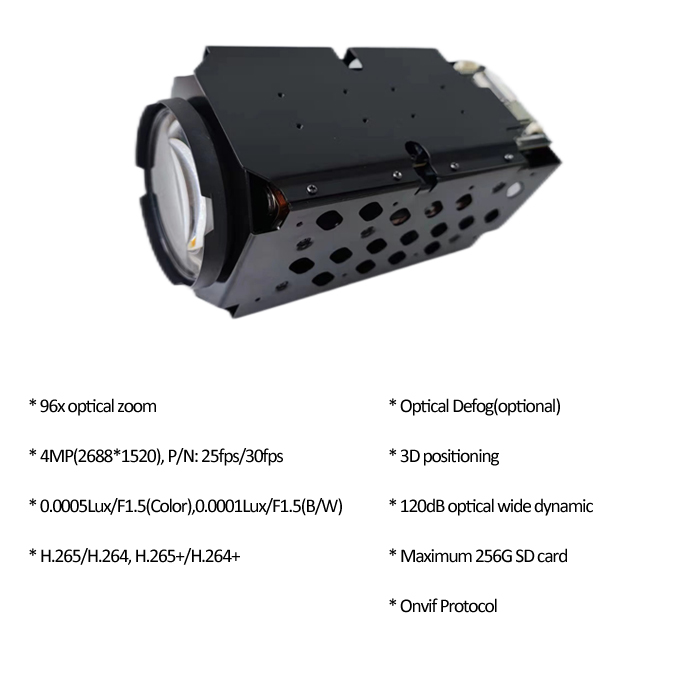

Technical parameters- 96X(6-576mm) Optical Zoom 4MP Image sensor.
- 5Km IR Lasers irradiation distance.
- Super starlight level, 0.0005Lux/F1.5(Color), 0.0001Lux/F1.5(B/W)
- Support electronic stabilization, distortion correction, shadow correction, corridor mode; optical fog transmission (optional).
- Horizontal 360° continuous, vertical 40°~-45°rotation.
- Support 3D positioning function, clickable tracking and zooming through the client/IE.
- Outdoor IP66 protection level, lightning, surge and surge protection.
- It can be widely used in straw burning, fishery ban, forest fire prevention, perimeter oil field, border and sea defense.
defense.
| Model | SVN-96ZS4L-5KM |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Pixels | 4.0MP |
| Minimum illumination |
Color:0.0005 Lux @(F1.4,AGC ON), Black & White:0.001 Lux @(F1.4,AGC ON). |
| Signal-to-noise ratio | >55dB |
| Day/Night Switching Mode | ICR Infrared Filter Type |
| Lens | |
| Focal length | F=6~576mm, 96x optical zoom, 16X digital zoom |
| Lens aperture | F1.3-F4.6 |
| Horizontal field of view | 66°-0.79°(wide-angle ~ telescopic) |
| Close-up distance | 100mm~1500mm (Wide-angle - Telescopic) |
| Shutters | 1/25 sec. to 1/100,000 sec.; slow shutter supported |

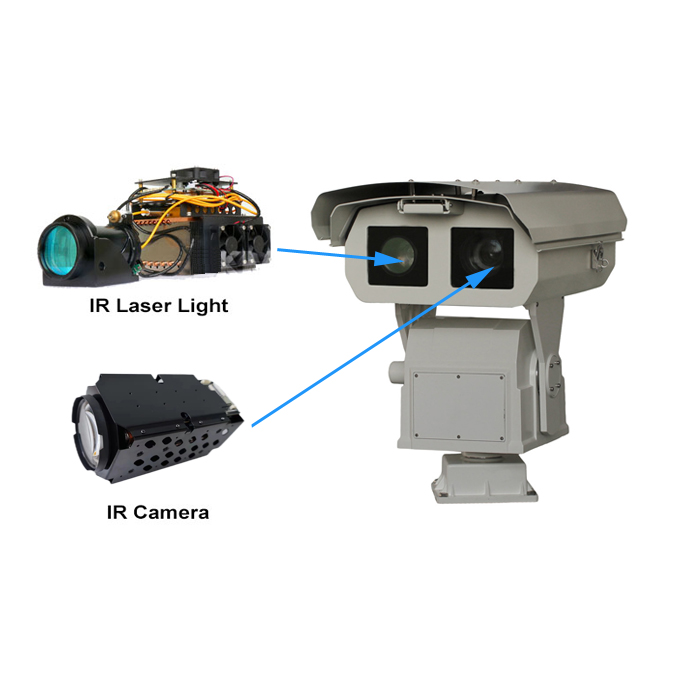

| IR Lasers | |
| Effective Distance | ≥5000m |
| Wavelength | 808±10nm(940nm Optional) |
| Consumed Power | ≤130W |
| Output Power | 50W±2W |
| Illumination Angle | 0.3°~30°(Continuous zoom) |
| Spot Diameter | φ26m(@0.3°,@5000m) |
| Laser Safety Distance | ≥376m(@0.3°,@Pomax) |
| PTZ | |
| Rotation range | Horizontal: 360°continuous, vertical: 40° to -45° |
| Rotation speed | Horizontal: 0.1~20°/S, Vertical: 0.1~10°/S |
| Preset | 256 |
| Cruises | 8 |
| Auto Scan | 8 |
| Automatic homing function | support |
| Follow a trail | 4 |
| Auxiliary switch | 2 groups |
| Control method | RS485 control for rotation angle return and angle control |
| Coding method | |
| video compression standard | H.265 / H.264, H.265+/H.264+ |
| H.265 encoding type | BaseLine Profile / Main Profile / High Profile |
| H.264 encoding type | BaseLine Profile / Main Profile / High Profile |
| Video compression bit rate | 64Kbps~16Mbps |
| Audio Compression Standards | G.711A/G.711U/G.726/AAC |
| Audio compression bit rate | 16Kbps(G.711)/ ( G.711U )/ (G.726)/(AAC) |
| Image parameter | |
| Master Stream Resolution |
50Hz: 25fps (2688*1520, 1920*1080, 1280*720), 60Hz: 30fps (2688*1520, 1920*1080, 1280*720). |
| Second Stream Resolution |
Independent of main stream settings, 50Hz: 25fps(720*576, 352*288); 60Hz: 30fps(720*576, 352*288) |
| Third Stream Resolution |
50Hz: 25fps (1280*720, 720*576, 352*288); 60Hz: 30fps (1280*720, 720*576, 352*288). |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Chroma, adjustable via browser |
| BLC | Support, customizable area |
| Glare suppression | Support, eclipse function |
| Exposure mode | Auto Exposure/Manual Exposure/Anti-Drag/Low Light Priority/High Light Priority/Aperture Priority/Shutter Priority/Lock Mode |
| Focus mode | Auto Focus/Manual Focus/Semi-Auto Focus |
| Regional Focus | Support |
| Optical Defog | optional |
| Electronic stabilization | Support |
| Day/night switching method | Auto, Manual, Image Algorithm, Timing, Serial Trigger |
| 3D noise reduction | Support |
| Image Overlay | Support BMP 24-bit image overlay, customizable area |
| Transparency | Automatic, Region Selection |
| ROI | Supports three streams and four fixed zones. |
| Network | |
| Network Protocols | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE |
| Access Protocol | ONVIF, Support SDK and third-party platform access |
| General | |
| Power supply | DC/AC24V |
| Power consumption | ≤100W |
| Protection class | IP66 |
| Working environment temperature | -40ºC~55ºC |
| Humidity of working environment | 0~95% (non-condensing) |
