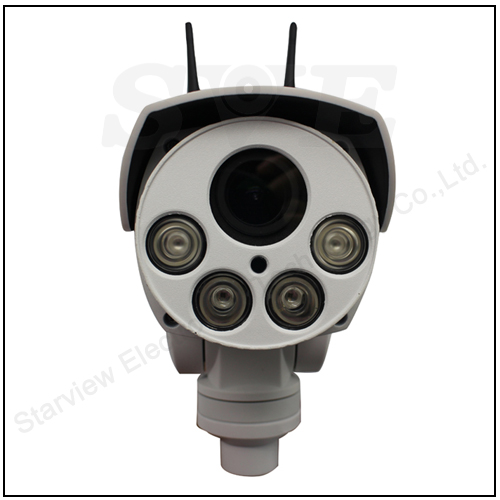

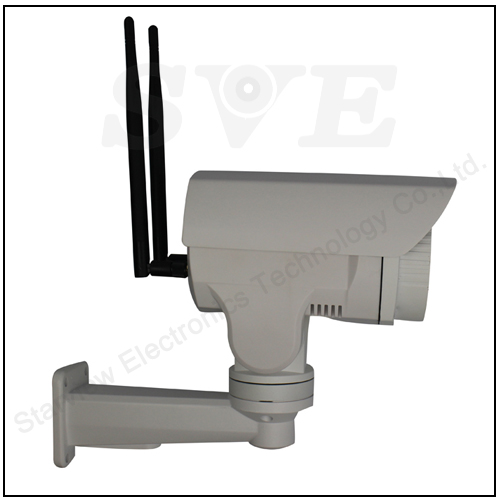

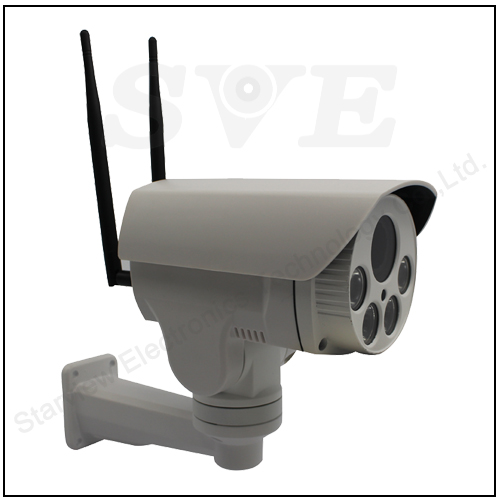

Security WiFi 4G SIM Card PTZ Waterproof CCTV IP Camera
- 1920H*1080W, SONY Sensor Pixels 2.0MP
- Zoom:2.8-12mm 4X optical zoom auto focus lens
- Support 3G/4G Sim Card, support AP mode
- P/T: Pan:300°,Tilt :60°
- Wireless Wifi802.11b/g/n
- Micro SD Slot
- Professional design, IP66 Weatherproof Outdoor
- Dual stream encoding H.264 compression mode
- 4pcs array infrared LEDs, 50m Night Vision
- Motion Detection Alarms ,Email &FTP Support .
- RTSP Stream : rtsp://ip:554/11
- IPhone and Android(free app,P2P Plug and Play)
- IRCUT(no color cast at daytime,more clear at ngiht)
- Free CMS Software
- Support Onvif 2.2version
- Bracket & Power Supply Including
| Model | SVN-WH3920WG |
| Camera | |
| Operating system | Embedded Linux OS |
| Processor | HI3516C |
| Sensor | 1/2.8"SONY323 low lux CMOS |
| Len interface type | M12 |
| Lens | 2.8-12mm 4X zoom auto focus lens(6-22mm is Optional) |
| View angle | 89.9°-26.2° |
| Min.illumination | 0.01ux/0lux(IR on) |
| Day&Night mode | Auto IR-CUT |
| Night vision distance | 4pcs array IR LEDs,IR radiation distance 50m |
| Video | |
| Video compression | H.264 |
| Video streaming | Three streaming |
|
Video resolution |
First stream:1080P(1920*1080),720P(1280*720),720P(640*352) |
| Second stream:720P(640*352),720P(320*176) | |
| Third stream:720P(320*176) | |
| Video code rate | 32-6144kbps.support constant bitrate/variable bitrate |
| Video frame rate | 25fps |
| Image settings | Brightness,saturation,contrast,shatpness,Exposure,flip,mirror |
| Image enhancement | Backlight compensation,Automatic white balance,Digital WDR3D digital noise reduction |
| Function | |
| Motion detecting | Can set 4 independent detection region(1-100 sensitivity can be set) |
| Alarm linkage | Alarm send pictures to the specified mailbox,alarm upload pictures and videos to the FTP server ,alarm write pictures and videos to Micto SD card,alarm mobile phone message push |
| Network | |
| Privacy mask | max suppotr 4 users to simultaneously browse |
| OSD | Support camera name,date and time information superimposed |
| User management | Support user and rights management |
| Simultaneous viewers | Max support 4users to simultaneously browse |
| Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc |
| Connection protocol | Support ONVIF 2.1(backward compatible) |
| PTZ | |
| Rotation angle | Horizon:0-300° vertical:0-60° |
| Horizontal speed | 12°/S |
| Vertical speed | 12°/s |
| Preset | Support 8 preset points |
| 4G | |
| 4G standard | FDD-LTE |
|
Frequency range |
B1(2100MHz),B3(1800MHz),B7(2600MHz),B8(900MHz),B20(800MHz) |
| Transmission rate | Upload max:50Mbps,download max:150Mbps |
| Security | WEP,WPA/WPA2,WPA-PSK/WPA2-PSK |
| 3G | |
| 3G standard | WCDMA |
| Frequency range | B1(2100MHZ),B8(900MHZ) |
| Transmission rate | Upload max:5.76Mbps,download max:21Mbps |
| Security | WEP,WPA/WPA2,WPA-PSK/WPA2-PSK |
| Interface | |
| Power interface | 5.5mm power interface |
| Ethernet | RJ45&Antenna 10M/100M Adaptive Ethernet Interface |
| TF card Slot | Max support 128G TF card, can set the automatic capture and timer recording |
| Reset button | Support |
| Genetal | |
| Power supply | DC 12V 2A |
| Power | Day:<3w,Night:<8W |
| Operating temperature | -20ºC~60ºC(-4ºF~ +140ºF) |
| Operating humidity | 10%~95%(non-condensing) |
| Waterproof level | IP66 |
| Material | Aluminum |
| Installation | Rack mounting |
| Package | |
| size | 150*90*125(W*D*H) |
| Weight | 1.1Kg |
| Package Size | 204*184*133mm(W*D*H) |
| Package Weight | 1.3Kg |
