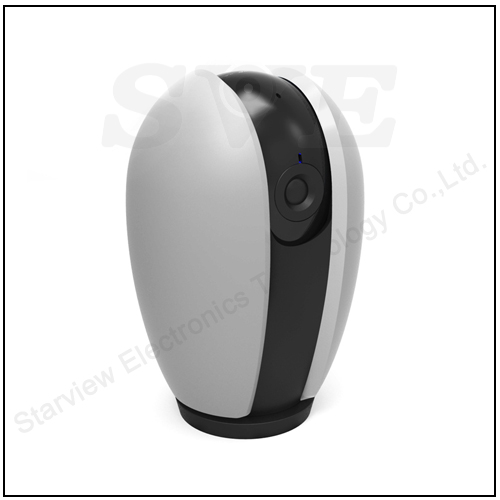

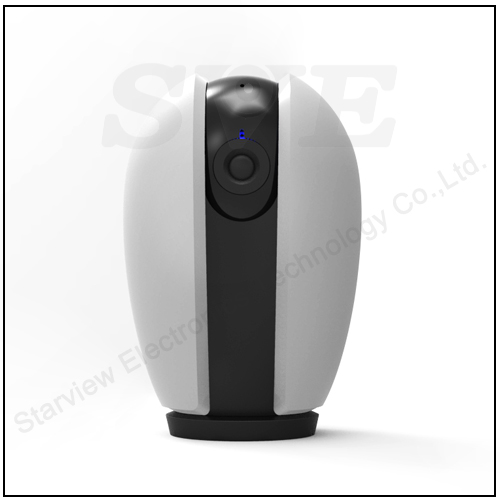

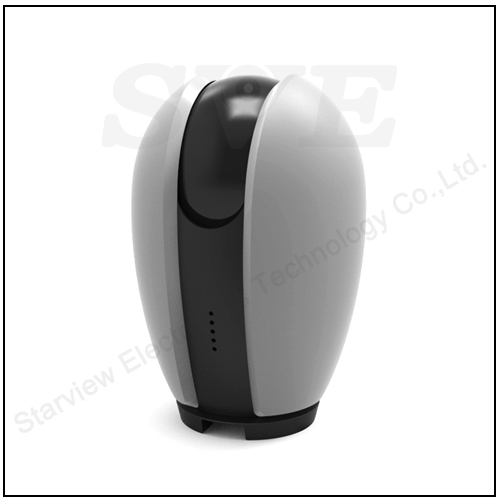

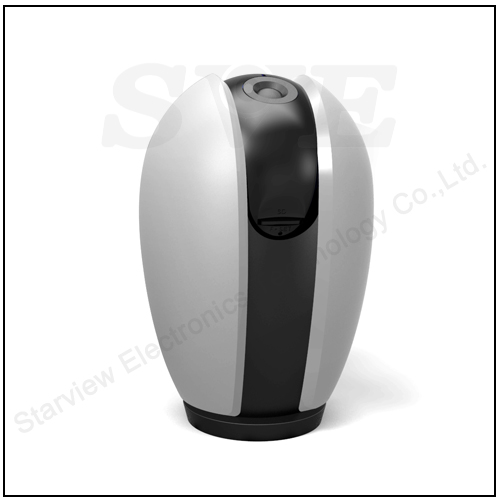

Home Security Baby security CCTV WiFi wireless IP Camera
- Easy to install and adjust
- FHD 720P @ 25FPS/1080P @ 15FPS
- 2-Way Audio
- 10m Night Vision
- Pan/Tilt Rotatable
- GE Fence
Two-way audio
| Model | SV-BC10W | SV-BC-20W |
| Sensor Type | 1/4" CMOS | 1/3" CMOS |
| Pixel | 1Mega Pixels | 2 Mega Pixels |
| Min illuminance |
Color 0.01Lux@F1.2 Black and White 0.001Lux@F1.2 |
Color 0.01Lux@F1.2 Black and White 0.001Lux@F1.2 |
| Lens | 2.6mm / F2.0 | |
| Shutter | 1/25~1/100,000 per sencond | |
| IR | High power LED with ICR | |
| IR distance | 10m | |
| WDR | Digtal WDR | |
| Video compression standard | H.264 | |
| Bit rate | 32Kbps~2Mbps | 32Kbps~2Mbps |
| Max picture size | 1280 × 720 | 1920 × 1080 |
| Frame Rate | 1~25 frame per sencond | 1~15 frame per sencond |
| Image setting | Support HD/SD; support mirror | |
| Audio | ||
| Storage | Support SD card (Max 128G) | |
| Communication protocol | HTTP, DHCP, DNS, RTSP | |
| Wifi standard | IEEE802.11b/g/n | |
| Frequency | 2.4 GHz ~ 2.4835 GHz | |
| channel bandwidth | Support 20/40MHz | |
| Wifi security | WPA-PSK/WPA2-PSK | |
| Data security | AES128 | |
| Intelligence | Support Ge fence(One Key Sleeping Mode); Motion detection | |
| Reset | Support | |
| Adjust angle | Tilt: -10°~75°; Pan: 0~350° | |
| Working temperature | -20℃~55℃ | |
| Power | DC5V,1A | |
| Consumption | 4.5W MAX | |
| Size(mm) | 63 × 58 × 96 | |
| Weight(g) | 153g | |
