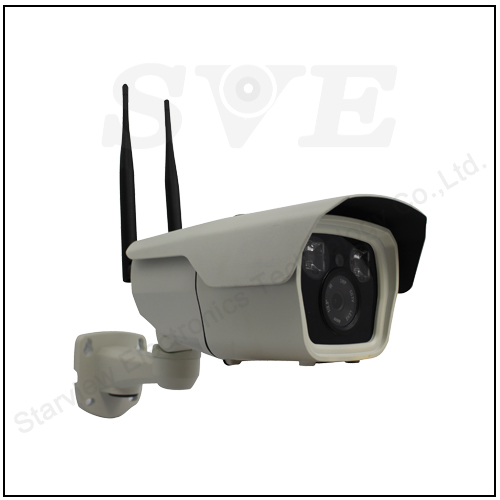

CCTV Waterproof WiFi 3G 4G SIM Card Security IP Camera
- 2.0Megapixel. 1080P.
- 2.8-12mm auto IRS lens,
- IR view distance: 50m(2pcs 42mil array LEDs)
- Motion detection, email alert, FTP upload
- iPhone, 3G phone, Smartphone supported
- Multi-language, Firefox, Safari, Google browser
- Built-in IR cut, no color cast.
- P2P, PNP: Plug & play, SUPPORT QR code scanning to view on iPhone and Android mobiles
- No need to connect power adaptor, not only security, but also energy saving.
- When temperature of the sunshine keeps higher than 33°C, the battery can work continuously.

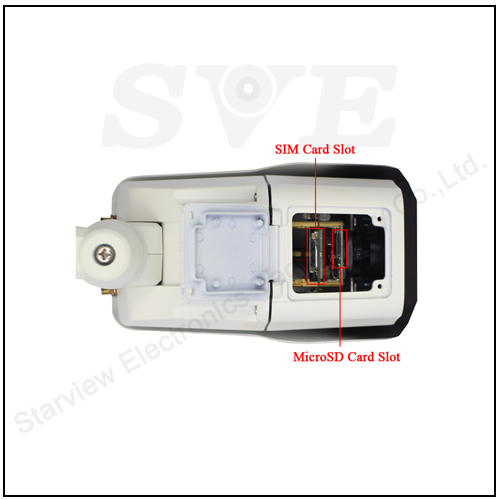

- Support SIM card, 3G/4G.
- Support TF Card slot max 64GB
| Model | SVN-WH3820WG |
| Camera | |
| Image Sensor | 1/2.8" SONY323 low lux CMOS |
| Resolution | 1080P/1920*1080 |
| Lens | 2.8-12mm |
| IR Distance | 50 Meters at most |
| Min. illumination | Color :0.01Lux/F1.2; B/W :0.001 Lux/F1.2 |
| Infrared LED | 2pcs array IR LEDs |
| IR Cut filter | Auto |
| TF Card Support | Max 64Gb |
| Network | |
| P2P | Yes |
| Yes | |
| Video Processing | H.264, dual stream, AVI format, 0.1M ~8Mpbs bit rate adjustable |
| Frame Rates | support 1~30fps adjustable |
| Network |
1* RJ45,10/100M, Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP |
| 4G | |
| 4G standard | FDD-LTE |
| Frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) |
| Transmission Rate | Upload max:50Mbps, download max: 150Mbps |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| 3G | |
| 3G standard | WCDMA |
| Frequency range | B1(2100MHz), B8(900MHz) |
| Transmission rate | Upload max:5.76Mbps, download max: 21Mbps |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| General | |
| Power Requirement | DC12V 2A |
| Waterproof Level | Waterproof IP66 |
| Material | Aluminum |
| Installation | Rack mounting |
| Operating Temperature | -10°C -- +60°C |
| Operating Humidity | 10%~90% |
| Dimensions | 185x93x62(mm) |
| Pack Dimensions | 215x155x105(mm) |
| Pack weight | 1.0KG |
