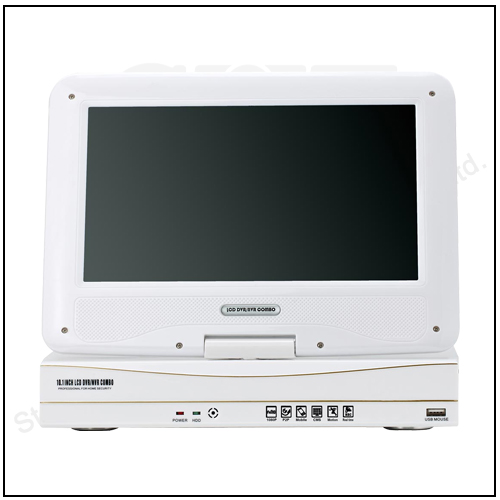

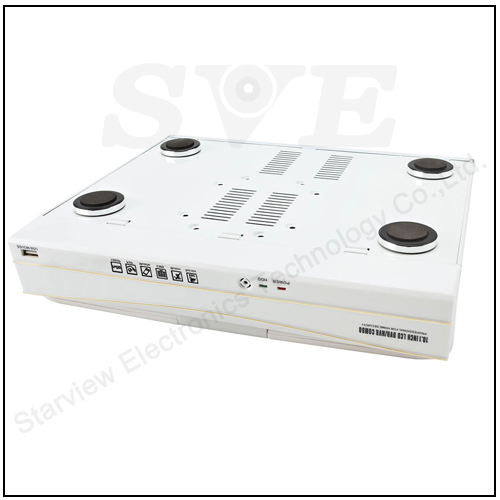

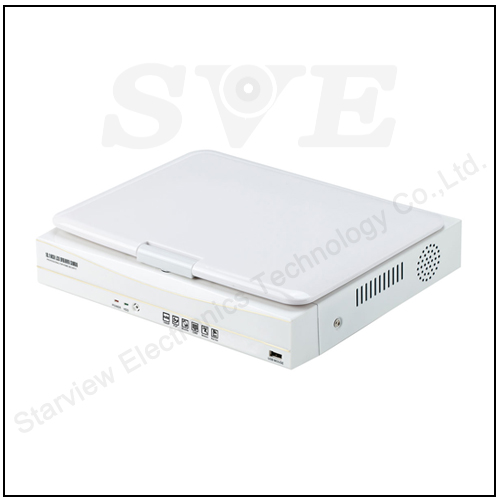

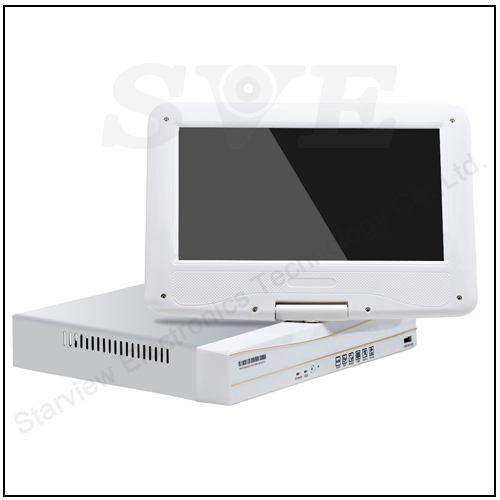

4CH 1080P P2p Onvif Video NVR with 7/10.1 Inch LCD
Feature:
- DC TIMES NVR security system is special designed with 7" or 10.1" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor. Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage.
- CMS Software for multiple NVR (up to 255 DVR simultaneously)
- Playback quality: real-time coding synchronously, real-time multi-channel playback synchronously.
- Mobile monitor: support all kinds of mobile monitor (iPhone, Android,iPhone, iPad, Mini Pad, android phones)
- Support multi-browser(IE,Chrome,Firefox,Safari.)Support 28 languages: English, Arabic, Russian, Franch, Spanish, German etc.
- Support HDMI, VGA output.
- Easy backup: USB devices, network download
- Cloud Technology make easy remote view by internet and mobile.
- Support NTP(Internet timing), DHCP(automatically get IP),Email(mail service),UPNP(Universal Plug and Play).
- Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
- Support 1 SATA 4TB hard disk.
- Support smart search in the self-defined areas in the playback of the recording.
- Applied in large surveillance area such as home, office, bank, supermarket, gas station, factory etc.
- It is a special designed and developed professional portable DVR, with excellent and high performance hardware and software.
- All software are included in the CD,very easy remote network surveillance.
| System | |
| Main processor | Hi3515C |
| Operating system | Embedded LINUX operating system |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
| Interface | |
| Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/4 screen |
| Video | |
| Video input (IP) | 4ch 1080P/ 8ch D1 |
| Video compression | H.264 |
| Display quality | Max1920*1080 |
| Playback quality | 1080P/D1 |
| Decode | 1ch1080P |
| Motion detection | Support(depend on camera) |
| Audio | |
| Audio compression | G.711A |
| Record & playback | |
| Intercom | Unsupport |
| Recording mode | Manual>Alarm>Dynamic Detection>Timing |
| Local payback | 1*1080P;4*720P |
| Storage & Backup | |
| Search mode | Search by Time/Calendar/Event/Channel |
| Space occupation | Video:CIF 4~5G/day*channel, D1 8~10G/day*channel;960H |
| 12G~20G/day*channel | |
| 720p 20~30G/day*channel; 1080P~40G/day*channel | |
| Audio: 691.2M/day*channel | |
| Record storage | HDD,Network |
| External interface | |
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner |
| Video output | 1ch HDMI output |
| Audio I/O | 0/0 |
| Alarm I/O | 0/0 |
| Network interface | 1*RJ45 10M/100M, self-adaption |
| USB interface | 3*USB2.0 |
| General | |
| HDD | 1*SATA HDD(Max:4T) |
| PTZ control | Control PTZ device by network |
| ONVIF | Support |
| Power supply | 12V/3A |
| Power Consumption | <15W(Without HDD) |
| Operating temperature | -20ºC ~ +55ºC |
| Weight | 2.5KG |
