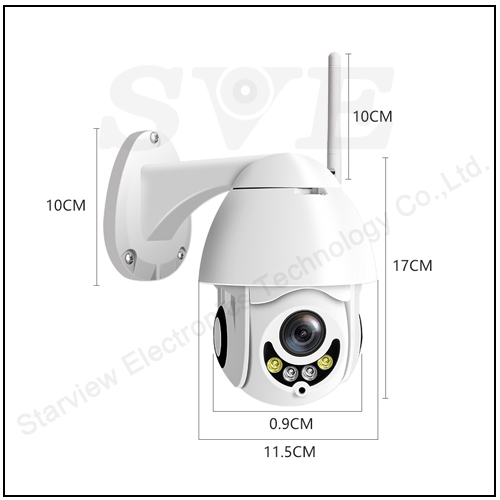

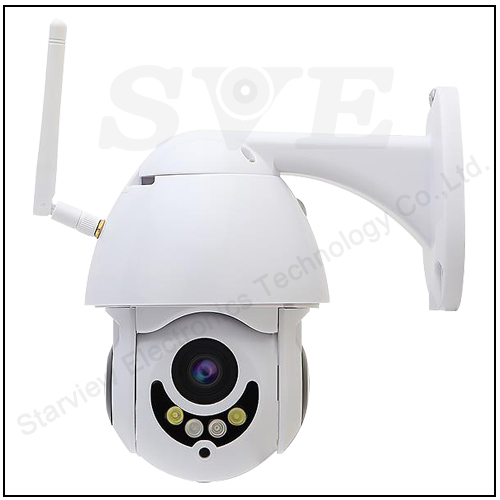

2.5 inch Wireless 1080P PTZ Speed dome Camera
Key Features
- 2 MP progressive scanning image CMOS sensor
- 4X Optical zoom
- 4pcs array LEDs (2pcs IR LEDs + 2pcs white light LED)Automatic switching lights
- Support Auto Focus AWB BLC ,Low light (color / black and white) automatic/manual conversion
- Multiple network monitoring modes (mobile phone, WEB, client)
- Support ONVIF protocol, compatible with standard ONVIF protocol NVR or platform software.
- Support Two-way voice intercom.
- Support SD card local storage, maximum support 64GB
| Model | 2.5" Network HD IR PTZ camera |
| Camera | |
| Media Processor | Hi3516C + SONY IMX323 CMOS |
| Image Sensor | 1/2.8" 2.1Mpixes Progressive Scan Sony 323 CMOS |
| Effective Pixels | 2.0 Megapixels |
| Min. Illumination | Color: 0.05lux@F1.6, B/W:0.05lux@F1.6. |
| Zoom | 4X Optical zoom (2.8-12mm motorized lens) |
| Day/Night | Auto ICR |
| WDR | Digital WDR |
| OSD Display | Time, Camera Name |
| IR | |
| Luminary | 4pcs array LEDs (2pcs IR LEDs + 2pcs white light LED) |
| Night vision distance | 30m |
| Lamp control | CDS Control |
| Network | |
| Video Compression | H.264 Baseline/Mainprofile/Highprofile/ MJPEG |
| Streams | Three streams |
| Frame Rate | Main stream: 1920*1080 / 1280*720, 1-25(30)fps |
| Sub-stream:640*352 / 352*176, 1-25(30)fps | |
| MJPEG:1920*1080, 1280*720, Close | |
| Bitrate | CBR/VBR, bitrate:32Kbps~6144Kbps variable |
| Audio Compression | G711,G.726 |
| P2P | Android,IOS |
| Protocols | TCP/IP/ HTTP/DHCP/ UDP/ SMTP/ RTP/ RTSP/RTMP/DNS/DDNS/UPNP/P2P |
| Motion detect | Support (4 Zones) |
| Privacy Zone Masking | N/A |
| Onvif | Onvif 2.4 |
| Network | 10/100M Base-TX Ethernet, RJ45 Connector |
| Wifi | Support (IEEE802.11b/g/n) |
| Mini SD Card | Up to 64GB(Optional) |
| Alarm I/O | N/A |
| Audio I/O | Support two-way voice intercom (Optional) |
| Reset Button | Support |
| PTZ Features | |
| Pan Range | 355° |
| Tilt Range | 0~90°Automatic flip |
| Manual pan speed | 0.01-300º/S |
| Manual tilt speed | 0.01-240º/S |
| Other function | Support Auto Scan |
| Preset points | 256 |
| Communication protocol | PELCO-D/-P,self-adaption |
| Baud rate | 2400bps/4800bps/9600bps,self-adaption |
| Cruise scanning | 3 group |
| General | |
| Work temperature | –20℃~60℃ |
| Work Humidity | 0%~90% (Non condensing) |
| Power | DC12V±10%; 2A |
| Consumption | Static power consumption：2.5W,Dynamic power consumption:4.5W MAX |
| Package size(mm) | 115mm x170mm x 110mm |
| Weight(Kg) | 1Kg |
