Features:

1. System Function

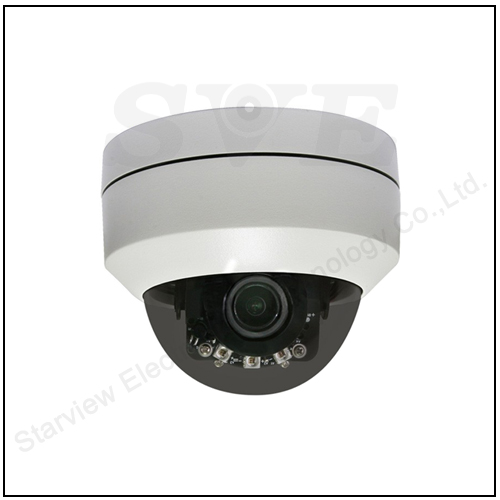

• 2.5 inch Mini speed dome, beautiful appearance;Friendly quick install structure design,easier building.
• Adopt high-performance sensor, H.265 compression format,resolution achieve 2688*1520.
• Support ONVIF protocol.
• Support English IE interface and operation tips function, user friendly interface.
• 3 class lightning proof,support for lightning protection, anti surge, anti surge.
• Protection grade: IP66.

2.  Infrared function

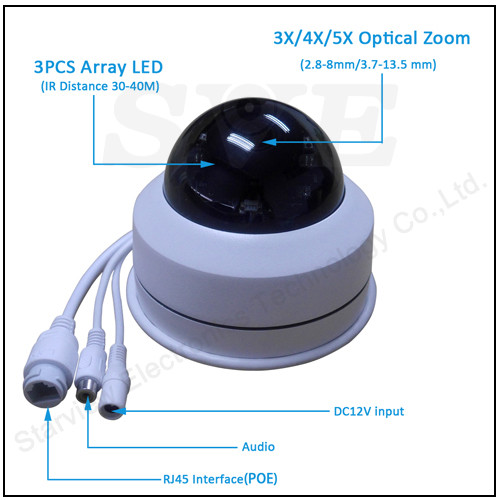

• 2pcs Array Led,IR Distance 20-30M,minimum Illumination：0 Lux
• The constant current circuit design,Infrared ages can be reach 30 thousand hours.

3.  IP Zoom camera function

• Adopt high-performance Hisilicon platform, stable and reliable performance.
• Effective pixels 5.0 million pixels (5MP),2592*1944.
• Support auto iris,auto focus, AWB and BLC.
• Support digital WDR function.
• Support  Audio function,AAC/G.711  compression,support audio-video synchronization (Optional)
• 4mm/3x(2.8-8mm)/5x(2.7-13.5mm) optical zoom (optional).

4. IP Network function

• Support Ethernet remote control
• You can view real-time image and control PTZ rotation through IE browser,PC  Client softwar,and NVR.
• Support two levels of user rights management, support for authorized users and passwords, support HTTPS encryption and network access control.
• Support H.265/H.264 compression format,dual stream output.
• WEB configure, real time recording transmission and playback, Free client software supported,SDK for customer software development.
• Support multi-protocols:IPv4,HTTP,HTTPS,Qos,FTP,SMTP,UPnP,SNMP, DNS,DDNS,NTP,RTSP,RTP,TCP/IP,DHCP,PPPoE

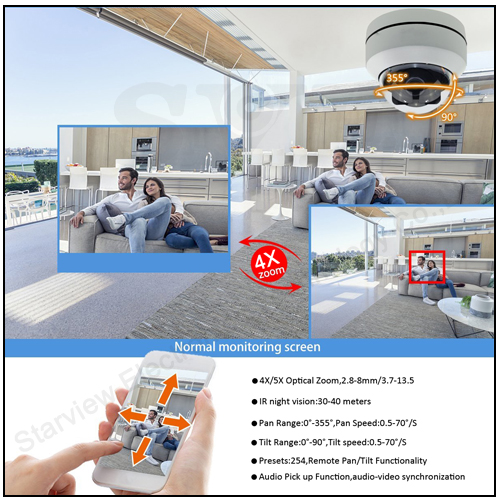

5. PTZ Control Function

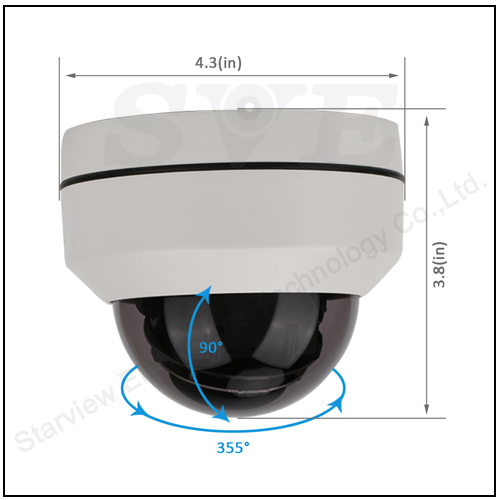

• Horizontal rotation 355°, tilt rotation 90°,control speed 70°/s
• 28 presets position,5 patrol tracking routes, residence time can be set.
• 1 parttern,1 left and right scan,1 auto level scan, Idle running functions.
• Support power off  memory function, When the camera is powered down, it will automatically resume the running state or position before the power is cut off.

Specification:

Model Number	SVN-MDW2550RD(B)
Camera
Image Sensor	1/3" CMOS
Effective Pixels	5.0MP pixels,2592*1944,H.265/H.264
Focal Length	4mm/3x(2.8-8mm)/5x(2.7-13.5mm) optical zoom option
Min. Illumination	Color: 0.05Lux@(F1.6, AGC ON), B/W: 0.01Lux@(F1.6, AGC ON),0Lux with IR
White Balance	Auto/Manual
AGC	Auto/Manual
Focus Mode	Auto/Manual/SemiAuto
Day & Night	IR Cut Filter,Auto,Color,B/w
DNR	Low/Middle/High/Off
Back light Compensation	ON/OFF
DWDR	Support, on/off
Video format	5MP/15fps,4MP/20fps,3MP/25fps optional
S/N Ratio	≧50dB
Pan/Tilt
Pan / Tilt Range	Pan: 355° Continuous Rotation; Tilt: 0° ~ 90°
Rotationt Speed	Rotation Speed: 0.5-70° /s
Proportional Zoom	support
Number of Preset	128
PTZ functionl	1 patrols,1 left and right scan,1 auto level scan
Idle running functions	Yes
Power off memory function	Yes
IP Network function
Net Interface	RJ45 Ethernet interface,Support 10M/100M
Image Compression	H.265/H.264
Dual Rate	5MP+D1
Audio(optiona)	AAC/G.711 compression
Network Protocols	IPv4, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS,DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
Client	Support
ONVIF	Support Onvif Protocol
Business Function	Support WEB, real-time video transmission; and motion detection
IR Function
IR Lamp	2 High power array infrared LED
IR Distance	20-30M
Infrared LED on	Auto
General
Protocols	Pelco-P, Pelco-D, self-adaptive
Working Temperature	-20°C~60°C
Humidity	≤90%, Non- condensing
Waterproof grade	IP66
Package Dimension	132x132x115mm
Weight (approx.)	650g

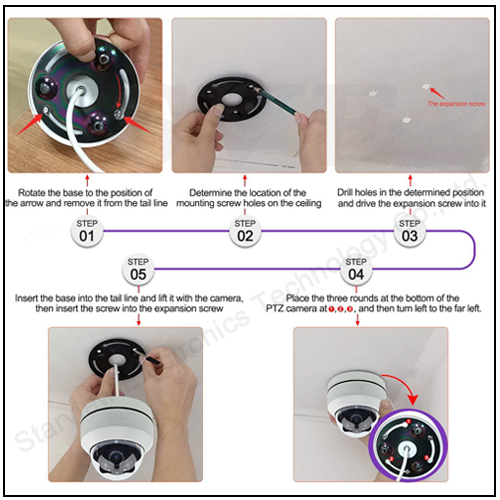

Mount Option	Ceiling mount,Wall mount
Power	DC12V/1A (±10%), ≤10W
Accessories	Installation manual ,  accessories bag
