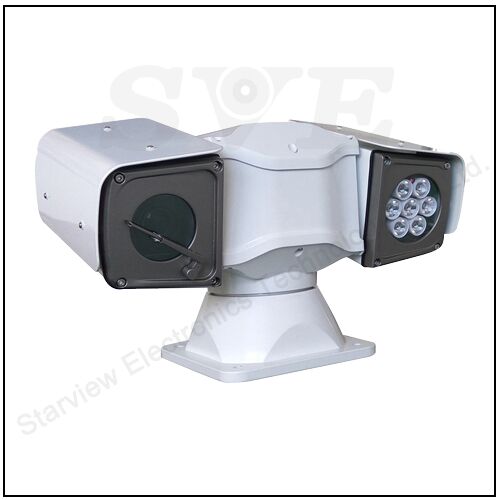

4MP 38X Zoom Vehicle IP PTZ Camera
Features：
- 38X 4MP(2560*1520) Super starlight Image Sensor
- Working Temperature:-35° ~ +65°
- 360°continuous pan,-90°~90° tilt with"AUTO FLIP"
- 0°~60°/s pan speed, 0°~40°/s tilt speed
- 256 presets, ±0.1° preset accuracy
- Fastest Speed-up & Speed-down for tracking
- 6 Sequence with up to 18 presets
- Unique design to fulfill Anti-fog and defogging
- Defogging /defrosting function(High quality heating parts)
- Vertical motor self lock not to move after power off
- Face Comparison, Recognition, Motorized, Non-Motorized, Pedestrian Target Classification Detection & Capture
- IR distance: 120M
| SVN-38TW10SL | |
| Camera | |
| Image Sensor | 1/1.8 Progressive Scan Super Starlight Sensor |
| effective pixels | 4MP(2560*1520) |
| min.illumination | Colour:0.003Lux@F1.2,B/W:0.001Lux@F1.2 |
| White balance | AUTO/MANUAL/ATW/INDOOR/OUTDOOR |
| Focal length | F=6-228mm(F1.2 to 4.6) |
| Optical Zoom | 38X |
| HOV | 59.47°~2.20° |
| AGC | AUTO/MANUAL |
| S/N Ratio | ≥56dB |
| WDR | 120dB |
| Defog | Optical Defog |
| Anti-shake | Support (gyro stabilization) |
| Shutter time | Auto/Manual, 1~1/100000s |
| PTZ Function | |
| Pan preset speed | 100°/s |
| Tilt preset speed | 60°/s |
| Pan control speed | 0°~60°/S |
| Tilt control speed | 0°~40°/S |
| Pan range | 360°endless rotation |
| Tilt range | -90° ~ +90° |
| Preset positions | 256 positions 8 tracking |
| Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optiona |
| IR distance | 120M |
| Relative Humidity | Less than 90% |
| IP Grade | IP66 |
| Working Temperature | -35° ~ +65° |
| Power Supply | DC12V3A |
| Impact resistance requirements | ≥4G |
| Wiper | Support |
| Installation | Variety of installation according to the environment |
| Weight | 7kg |
| Network parameters | |
| Video Compression | H.264/H.265/MJPEG |
| Main Stream | 2688*1520, 2560*1440, 1920*1080, 1280*720, 640*360, 720*576(D1), 704*288(2CIF), 352*288(CIF); |
| Second stream | 1920*1080, 1280*720, 640*360, 720*576(D1), 704*288(2CIF),352*288(CIF); |
| Third Stream | 640*360, 720*576(D1), 704*288(2CIF), 352*288(CIF); |
| Video bitrate | 128Kbps~16384Kbps |
| Audio Compression(Optional) | G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726 |
| Compression output rate | 32Kbps—12Mbps |
| Support Protocol | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SIP, RTMP |
| Compatible | ONVIF,GB/T 28181,GA/T 1400,API |
| CommunicationProtocol | PelcoD-P Protocol |
| Intelligent function | Face Comparison(16), Recognition, Motorized, Non-Motorized, Pedestrian Target Classification Detection & Capture |
| Alarm | Motion detection, mask alarm, full memory, memory mistake |
