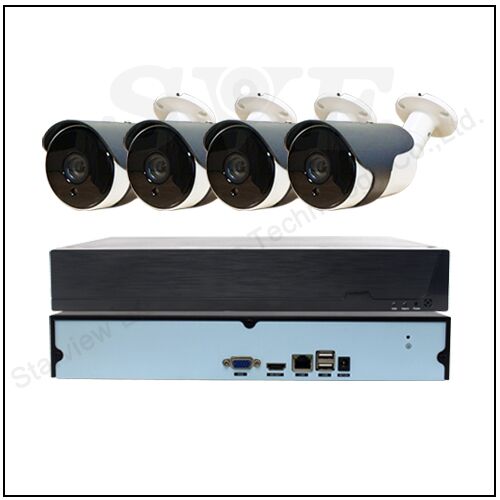

3MP Face Recognition 4CH NVR Kit
Key Features
- 4CH 3MP(2304*1296) Megapixel,H.265+/H.264 video standard.
- Face&Humanoid Region invasion detection,Trip-line detection,Capture.
- Face&Humanoid recording Search,Picture Search,Face Analysis.
- Face&Humanoid real-time view& ComparisonWander/Stay alarm.
- Face Datebase Managerment,Black&White&Stranger face arming.
- Application:Smart Store/School Management，Public Security.
| Model | SVN-AINF08 |
| IVR Specification | |
| System | |
| Main chip | Hi3536D |
| Operating system | Embedded Linux |
| Interface | |
| Operation interface | WIN style |
| Partitioning screen | 19 |
| Feature list | |
| Intelligence analysis | Face&Humanoid Region invasion detection,Face&Humanoid Trip-line detection,Face&Humanoid Capture,Face&Humanoid recording Search |
| Face&Humanoid Picture Search,Face real-time view& Comparison,Face Datebase Managerment,Black&White&Stranger face arming,Wander/Stay alarm,Face Analysis | |
| Video | |
| Video input | Max 9*5MP |
| Face Channel | 4ch |
| Decoding format | H.265/H.264 |
| Output resolution | 2560*1440/1920*1080/1280*1024/1440*900/1024*768 |
| Video Replay | |
| Video recording mode | All-day/Day/Night/Customized |
| Playback performance | Support 1*5MP/3*3MP/4*2MP Recording |
| Video type | Regular Video, Video Loss , Human Detection,Face recording |
| Storage backup | |
| Storage backup | USB Disk |
| HD quantity | 1*6T |
| Interface | |
| Video output | HDMI/VGA |
| Network interface | RJ45,100M |
| USB interface | 2 USB |
| Others | |
| Number of remote connections | 2*APP+1*IVS |
| ONVIF | Support |
| Power | DC12V/4A(Include hard disk working) |
| Power consumption | <10W(without Hard disk ) |
| SIZE | 255mm(L)*215mm(W)*35mm(H) |
| Working Environment | Temperature -20℃-45℃,Humidity 10%-90% |
| IGC Specification | |
| System | |
| CPU | Hi3516CV500 |
| Image sensor | 1/2.7″CMOS |
| Display | |
| Video Resolution | 2304*1296 |
| Effective pixels | 3MP |
| Video compression standard | H.265+/H.264 |
| Framerate | Maximum 25fps |
| Video rate | Fixed bit rate/dynamic bit rate,128Kbps~4096Kbps |
| Synchronous method | Internal synchronization |
| lowest illuminance | 0.0001lux(IR OFF) 0Lux(IR ON) |
| Lens | |
| Focusing mode | Manually |
| Functions | |
| Exposure control | Automatic |
| AGC | Automatic |
| White balance | Automatic |
| Digital 3D Noise Reduction | Automatic |
| OSD Settings | Customized Name, Time and Character Position Adjustment |
| Audio input/output | Support |
| Network time | Support |
| Intelligent analysis | Face&Humanoid detection/Face&Humanoid capture/Face&Humanoid recording search/Face Analysis/Face attribute recognition |
| AI face spec | 10 faces/fps |
| Privacy shelter | Simultaneously support four occlusion areas |
| Video Adjust | Support Contrast, Brightness, Saturation, Sharpness Adjustment |
| Image quality | No exposure on face、Smart warm color |
| Day&night switching | Automatic, Always Color, Always Black and White, Timing Switching |
| WDR | Automatic |
| Frame setting | Up and down flip, left and right mirror |
| Alarm output | Email, IVS |
| Remote operation | Coding setting, Image setting, OSD setting, Network setting, Alarm setting, System setting |
| Network settings | |
| Ethernet | 10/100M Ethernet, RJ45 Interface |
| Bitstream | Double code streams |
| Network protocol | Standard;HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS |
| Access Protocol | Standard ONVIF |
| Network transmission | Built-in intellicore IGC protocol |
| Browser | IE（Including 360 compatible mode ）/Chrome/Fiefox/safari |
| APP | Danale |
| Number of simultaneous connections | IGC protocol Support 6，ONVIF Support 4 |
| Userrights | 10 |
| General parameters | |
| Power Supply | DC 12V |
| Working temperature | -30℃～+60℃ |
| Working humidity | 10%～90% |
| Powerful | Day:＜2W Night:＜10W |
| Size (mm） | 38*38 |
