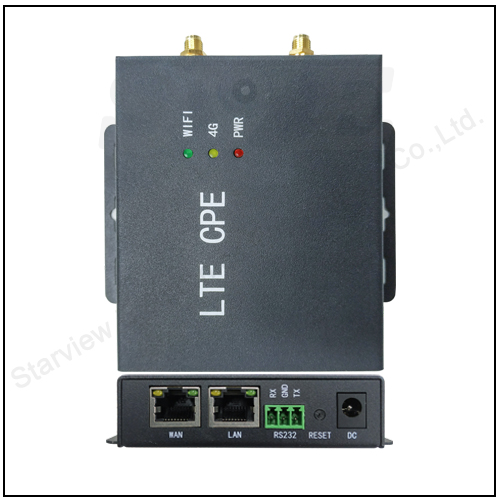

4G Wireless Remote Monitor Management Solution
Key Features
- 32-bit industrial processor and industrial communication module;
- 12V DC power input，Wide voltage input design 6 ~ 12V;
- WAN/RS232/RS485 interface，Built-in ESD protection;
- Support VPN – PPTP, L2TP, IPSEC, GRE;
- Support Micro SIM Card，Adopt anti dropping line mechanism;
- Support 4G LTE FDD, TDD and 3G Cellular data network band.
| Product | 4G remote wireless solution | |
| Model | MC4G-MTU-F | |
| Processor | Integrated MT7688 processor | |
| RAM | 128MB 16-bit DDR2 | |
| Flash | SPI 128Mbit | |
| Wireless | 2.4GHz 802.11n IEEE 150Mbps,External detachable high-sensitivity WIFI antenna | |

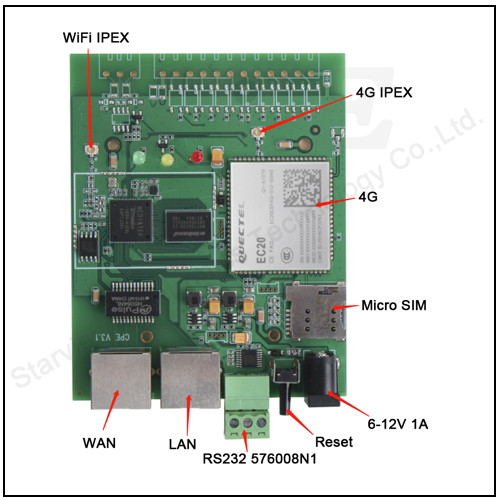

| Interface | ||
| WAN | 1CH 10/100Mbps,MDI/X Adaptive,Built-in 1.5KV electromagnetic isolation protection | |
| LAN | 1CH 10/100Mbps,MDI/X Adaptive,Built-in 1.5KV electromagnetic isolation protection | |
| SIM | 1CH SIM Card Interface Support 1.8V/3V SIM/UIM Card,Built-in 1.5KV ESD protection | |
| Power interface | Standard DC interface,Built-in power reverse protection | |
| RESET | 1CH pinhole reset button | |
| Antenna interface | 2 x Standard SMA antenna interface,CharacteristicImpedance 50Ω | |
| Indicator light | PWR System status indicator x 1 | |
| 4G Status Indicator x 1 | ||
| WIFI Indicator light x1 | ||
| Power input | ||
| Standard power supply | 6-12VDC/1A | |
| Power supply range | 6~12VDC | |
| Power consumption | <450mA (12V) | |
| Shell | Galvanized material, laser cutting, silk screen printing powder | |
| Size | 98mm*82mm*21mm（Does not include antennas and mountings） | |
| PCB Size | 97mm*77mm*14mm | |
| Work environment | ||
| Working temperature | -45°C to 85°C | |
| Working humidity | 10% to 85% RH Non-condensation | |
| Storage humidity | 5% to 85% RH Non-condensation | |
| WIFI Specifications | ||
| Wireless standards | IEEE 802.11b/g/n | |
| Frequency band | 2.412 – 2.4835GHz | |
| Wireless | 2.4GHz Channel selection | 1 – 11 channel |
| Bandwidth Selection 20MHz / 40MHz | ||
| Transmit Output Power | 22dBm | |
| Receive sensitivity | -70±2dBm @ 54Mbps | |
| Security / Encryption | WEP/WPA/WPA2 | |
| 4G Specification of Wireless Module | ||
| WAN | ||
| WIFI | Support Client, AP,Router | |
| Support WPA/WPA2 Encryption mode,MAC Address filtering | ||
| VPN | Support VPN Client PPTP / L2TP / IPsec / GRE | |
| Remote management | SSH / HTTP | |
| Support local and remote online upgrades, import and export configuration files | ||
| Other Function | Support APN/VPDN | |
| Support NTP | ||
| Support VLAN, MAC Address Cloning | ||
| Support Multiplexing DHCP Server,DHCP Client, DHCP Binding MAC Address, DDNS, firewall, DMZ,Host traffic statistics and other functions | ||
| Support TCP/IP, UDP, FTP（Optional）, HTTP | ||
| Support SNMP V1, V2, V3 | ||
