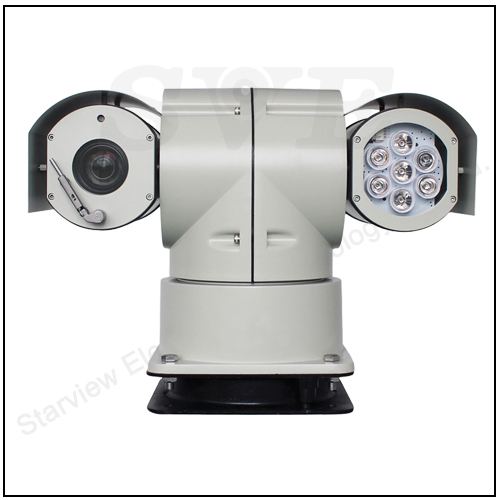

20X 4G Network 1080P Vehicle PTZ Camera
Key Features
- Single channel 1080P HD video,storage transmission dual 1080P
- Intelligent bit rate adjustment, greatly reducing the transmission traffic and storage space H.265,backward compatible H.264
- 4G all Netcom communications, remote real-time monitoring, optional dual 4G
- Built in storage card,max 128G,with intelligent bit rate adjustment algorithm,can save much storage space
- Support GPS/Beidou module,accurate locating
- Video overlay 4G signal strength information,local remote real-time read signal quality
- Support shock absorption structure, improve equipment stability
- Support Audio pick up and Record,Live remote control by VMS or Mobile App
- IR distance:80-100m,optional laser light
Used in a wide range of fixed point monitoring, vehicle video surveillance, field video surveillance and other places need high-definition monitoring, such as: construction sites, public security vehicles, land resources, sea ports, electricity, ships and so on.
Technical parameters
| Product name | 4G Network Vehicle HD PTZ Camera(SVN-HSX60-20GS) |
| Camera | |
| Sensor | 1/3" Progressive Scan CMOS |
| Focal Length | 5.4-108mm,20X Optical |
| Aperture Value | F1.5-F2.7 |
| View Angle | Horizontal: 50.2-2.9° (Min.-Max.) Vertical: 37.9-2.1° |
| Min. Distance | 10mm-1000mm (Min.-Max.) |
| Zoom Speed | 3s |
| D/N Shift | ICR, Auto, Color, White/Black, Timing, Threshold Control, Rotation |
| Scanning | Progressive Scanning |
| Resolution | |
| Main Stream | 50Hz: 25fps(1920×1080,1280×720); 60Hz: 30fps(1920×1080, 1280×720) |
| Sub Stream | 50Hz: 25fps(720×576, 352×288); 60Hz: 30fps(720×480, 352×240) |
| Third Stream | 50Hz:(720×576, 352×288) 25fps;60Hz:(720×480, 352×240)30fps |
| Illumination | 0.01Lux @(F1.5,AGC ON)color, 0.005Lux @(F1.5,AGC ON)B/W |
| Image Adjustment | Saturation, Brightness, Contrast, Sharpness, Hue Adjustment |
| Image Setting | Privacy Mask, Anti Flicker, Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect Point Compensation, Watch mode, Power off Memory |
| ROI | 4 areas |
| Focus Mode | Auto/Manual/One Time Focus |
| Exposure Mode | Auto/Manual/Shutter Priority/Aperture Priority |
| Shutter Time | 1/25~1/100000 |
| White Balance | Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/White Lamp |
| WDR | Super WDR, Auto WDR, 0-100 digital adjustment |
| DNR | 2D/3D |
| Lens Initialization | Built-in Shutter Priority |
| Digital Zoom | 16 X |
| System Mode | PAL/NSTC |
| IR Night vision | |
| IR distance | 80~100m |
| PTZ | |
| Pan speed | 0.6°- 220°/S |
| Tilt speed | 0.8°- 75°/S |
| Tilt range | 0°- 90°,Automatic flip 180° |
| Pan range | 360° contiously rotation |
| Proportional zoom | Support,change the speed with zoom changed |
| Preset position | 220pcs |
| Network | |
| Network | 4G |
| Wire network | 1CH RJ45 |
| Storage | Local storage TF card 128G (class10) |
| Smart Function | Motion Detection, Area Intrusion, Line Crossing, Distortion Correction, Power Off memory, Network off Recovery |
| Smart Detection | Video Mask, Audio Abnormal, Off-line, IP conflict, HDD Full, HDD Error |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, (IPv6 optional) |
| Compatibility | ONVIF2.4, FV private protocol, CGI, Support HIK/DAHUA protocol |
| Audio Compression | G.711, AAC |
| Video Compression | H.265/H.264 |
| General | Heartbeat, Password Protection,Black/White list |
| Positioning | |
| support | GPS,BDS dual module |
| Others | |
| Power supply | DC12V±10% |
| Consumption | Day max 15W night max 50W(with heater) |
| Working temperature and humidity | -20ºC~+60ºC 10%~95%(No condensation) |
| Protect grade | TVS3000V Lightning protection, anti-surge, anti-surge |
| Full integration size(mm) | 490*307*237mm |
| Weight | 10Kg(including package) |
| Protect grade | IP66 |
