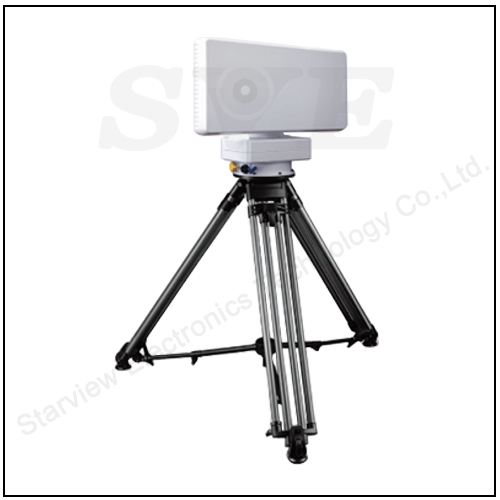

5KM Detection distance Counter UAV Radar
Key Features
- 3D mechanical scanning radar, Multi group Sum beam Difference beam.
- Improves the "low small slow" target detection capability while reducing the radar's transmit power at the same discovery distance.
- Distinguish between ground and air targets.
- Can work around the clock in harsh environments.
- Multi-point operating frequency, using the same-frequency interference suppression technology to avoid co-channel interference.
| Model | Radar-01C |
| Overview | |
| Wave band | Ku |
| Process technology | chirp |
| Scan method | Azimuth machine scan+Euler frequency scan |
| Weight | ≤23kg |
| Size | 610×450×270(mm) |
| Power consumption | ≤160W |
| Basic detection performance | |
| Display range | 0.075~20km |
| Azimuth angle | 0°-360° scan |
| Euler angles | 0°-40° |
| Measurement dimension | Distance / Azimuth angle / Euler angles / Speed |
| Detection distance | |
| Mini UAV (RCS=0.01m²) | 5Km |
| Detection accuracy | |
| Distance accuracy | ≤8m |
| Azimuth accuracy | ≤0.8° |
| Euler accuracy | ≤0.5° |
| Resolving power | |
| Detection Resolving power | ≤20m |
| Azimuth Resolving power | ≤2.5° |
| Euler Resolving power | ≤4° |
| Track method | TWS / continuous track |
| Number of track targets | No less than 200 |
| Map data | Stackable map |
