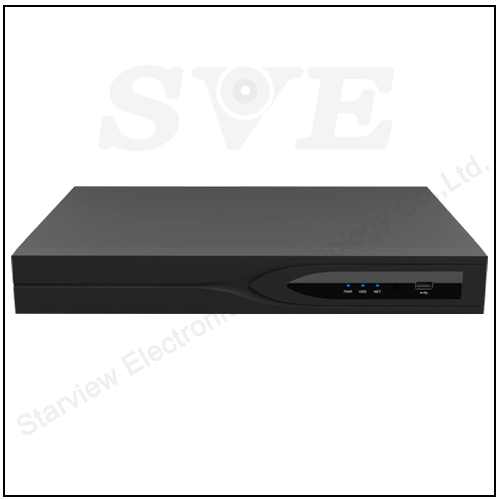

2CH SATA 16CH 4K POE H.265 NVR
| NVR3200E-P Series | |||
| Model | SV-NVR3208E-P8/JS | SV-NVR3216E-P16/JS | SV-NVR3232E-P16/JS |
| OS | Embedded Linux | ||
| Video&Audioinput | |||
| Bidirectional Talk | 1CH,RCA(Line in,2Vp-p,1Kohms) | ||
| Incoming bandwidth | 96Mbps | 192Mbps | 200Mbps |
| IPC Input | 8CH | 16CH | 32CH |
| Video&Audio output | |||
| VGA | 1CH,1920×1080,1366×768,1280×1024,1280×720,1024×768 | ||
| HDMI | Standard 2.0,3840×2160,1920×1080,1366×768,1280×1024,1280×720,1024×768 | ||
| Audio Output | 1CH,RCA(Line out,2Vp-p,300ohms) | ||
| Video&Audio encoding | |||
| Audio Compression | G.711A | ||
| Audio Bit Rate | 64Kbps | ||
| Video&Audio decoding | |||
| IP channel Resolution |
Main stream:Up to 3840×2160,Auxiliary stream:D1
|
||
| Video decoding | H.264/H.265 | ||
| Audio decoding | G.711A，G.726 | ||
| Synchronous Playback | Up to 8CH | Up to 16CH | Up to 16CH |
| Decoding Ability | 8CH 1440P@30FPS | 16CH 1080P@30FPS | 16CH 1080P@30FPS |
| Intelligent Analysis | 1CH Face detection or 2CH Perimeter detection,Up to 1080P | N/A | |
| Other Function | |||
| Bidirectional Talk | Two-way voice intercom function | ||
| Motion Detection | Zones: 396(22*18),Sensitivity: 1~6 (level 6 is highest) | ||
| Picture Capture | Support JPEG Capture | ||
| HDD Interface | |||
| SATA | 2 SATA Interfaces | ||
| Max Capacity | Unlimited | ||
| POE Interface | |||
| Interface | 8CH | 16CH | 16CH |
| RJ-45 10/100Mbps self-adaptive Ethernet interfaces | |||
| Supported standard | IEEE 802.3af | ||
| Power | ≥60W | ≥180W | |

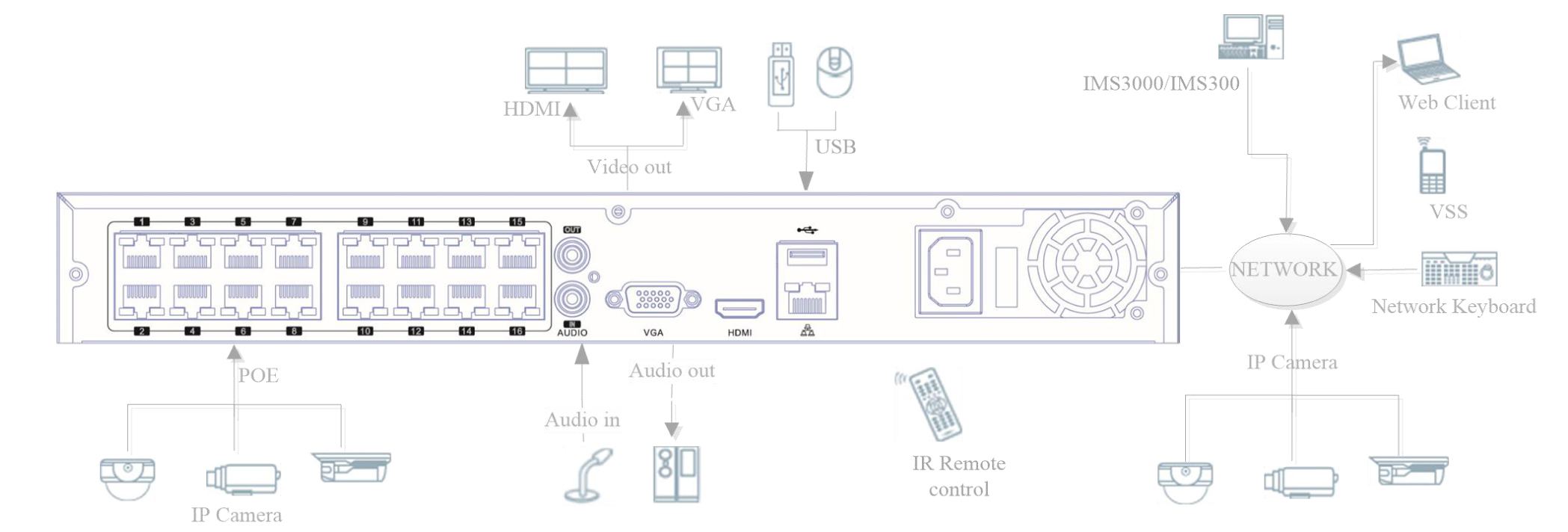

| External Interface | |||
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface | ||
| USB | 2 USB2.0 Interfaces | ||
| Structure | |||
| Dimensions | 405*365*123mm | ||

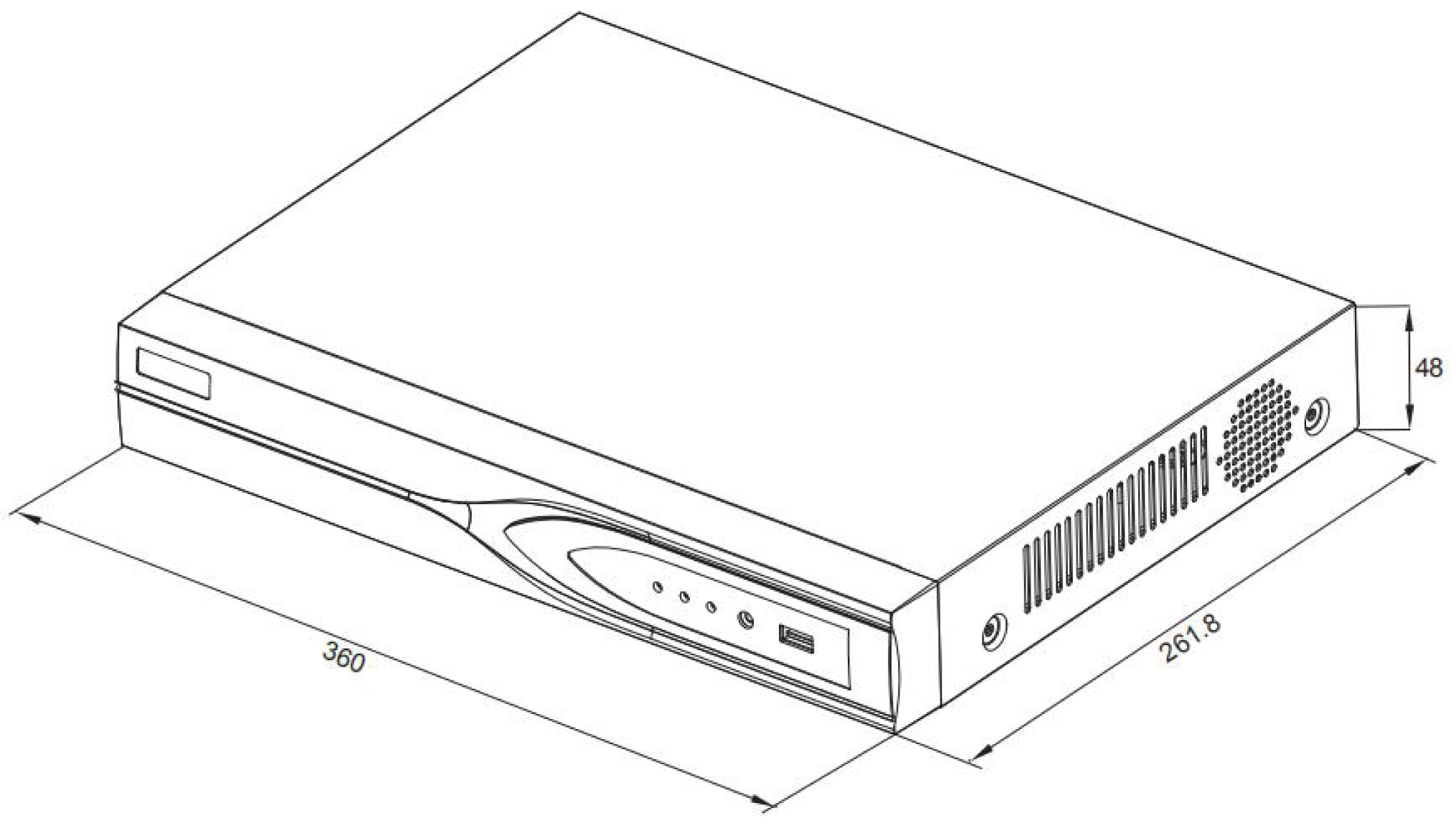

| Size | 1U,360*311.5*48mm | ||
| Weight | 3KG(without HDD) | ||
| Installation | Desktop Installation | ||
| General | |||
| Power Supply | 110V~220V±10%, 47Hz～63Hz | ||
| Working Temperature | 0℃--＋55℃ | ||
| Working Humidity | 10％--90％ | ||
| Consumption | 20W(without HDD,without POE) | ||
