Model NO. |
SV-H50IP5 |
|
Image sensor |
|
Image sensor |
1/3 "color CMOS sensor |
|
Display resolution |
2560×2048 (5MP) |
|
Lens |
f: 3.6mm, F:2.0 |
|
Min.illumination |
0.5Lux |
|
Audio |
|
Input/output |
Two-way audio (built-in microphone and speaker) |
|
Audio compression |
AAC(Advanced Audio Coding) |
|
Video |
|
Video compression |
H.265 |
|
Lighting frequency |
50Hz, 60Hz |
|
Image resolution |
HD5MP(2560×2048), 640*360 |
|
Image adjustment |
Brightness, Contrast, Saturation, Sharpness |
|
White balance, BLC |
Automatically |
|
Night vision |
18 infrared LEDs, IR distance:20 meters |
|
Internet |
|
Wireless networks |
WiFi(IEEE802.11b/g/n), External antenna |
|
Ethernet |
10/100Mbps RJ-45 interface |
|
Protocols |
TCP/IP,UDP/IP,HTTP,DHCP,RTSP,RTMP,MUTP |
|
IP address |
Static IP address and dynamic IP address |
|
Alarm |
|
Alarm Detection |
Motion detection Snapshot, audio/video record |
|
Alarm linkage |
Support snapshot, audio / video |
|
Alarm notification |
Real-time App push notifications |
|
Interface |
|
power |
1DC 12V / 2.0 A, power consumption 7W |
|
Buttons |
A reset button, a WPS (WiFi Protected Setup) button |
|
Network interface |
One 10/100 Mbps RJ-45 self-adaptive interface |
|
WiFi |
External antenna |
|
LED instructions |
Network signal/power/network function |
|

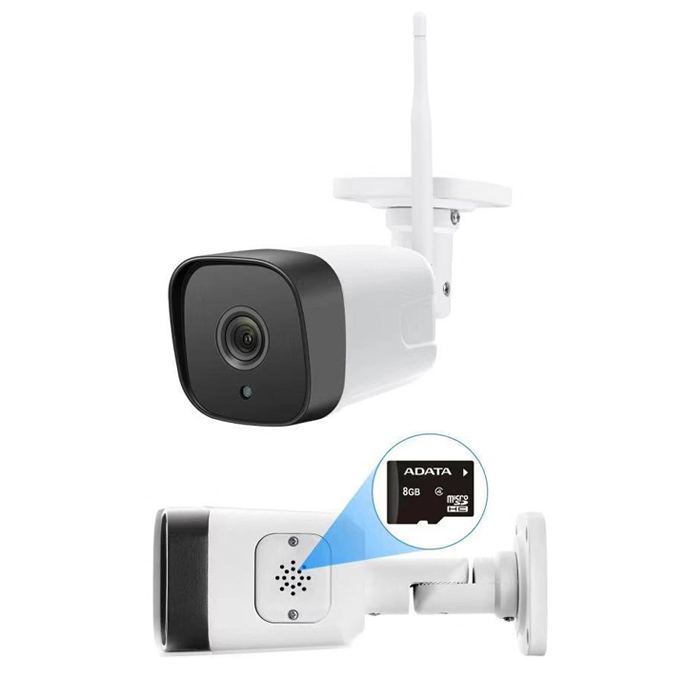

Video storage |
Micro TF card (max 64 GB) storage |
|
Environment |
|
Work temperature |
0° ~ 55°C (32°F ~ 131°F) |
|
Work humidity |
10% ~ 80% (No condensation) |
|
Storage temperature |
-10°C ~ 60° (14°F ~ 140°F) |
|
Storage humidity |
0% ~ 90%(No condensation) |
