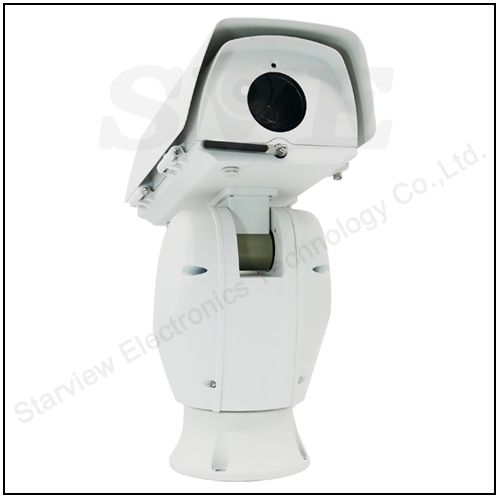

33X 1080P AHD/CVI/TVI CVBS Analog PTZ Camera
Key Features
Powerful zoom: 33x optical zoom
SONYIMX323 sensor 1920×1080P, 2.0MP
Starlight level ultra low noise: 0.1Lux(color) 0.012Lux (B/W)
Nextchip 2441H DSP
Supports optical fogging, penetrating smog procedures, and clear images
Protection level: IP66

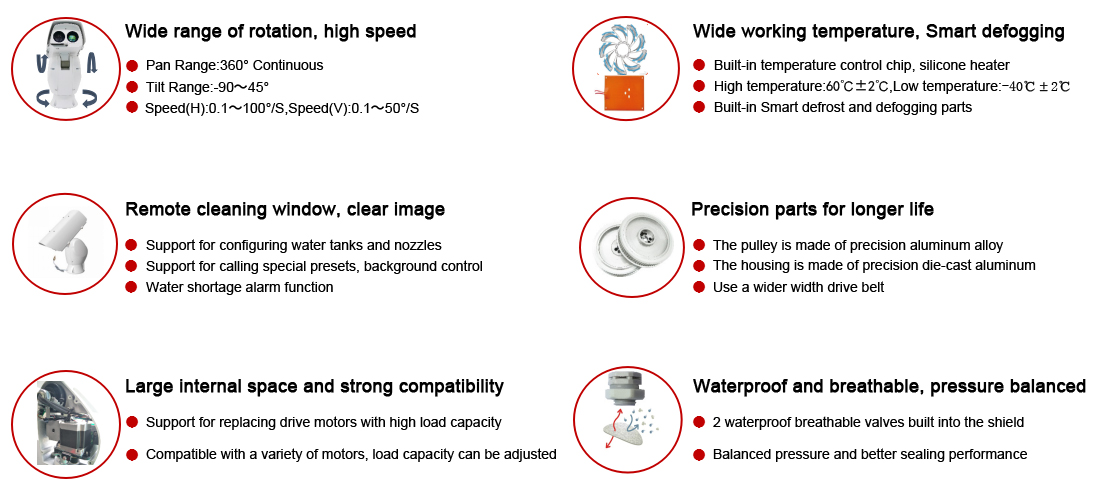

Product features
Product features
Supports power-off state memory function, automatically returns to the pan/tilt and lens status before power-off after power-on
Support for scheduled task presets, pattern scanning, endurance scanning, left and right scanning
Built-in intelligent temperature control, intelligent defogging, and wiper function for all-weather applications

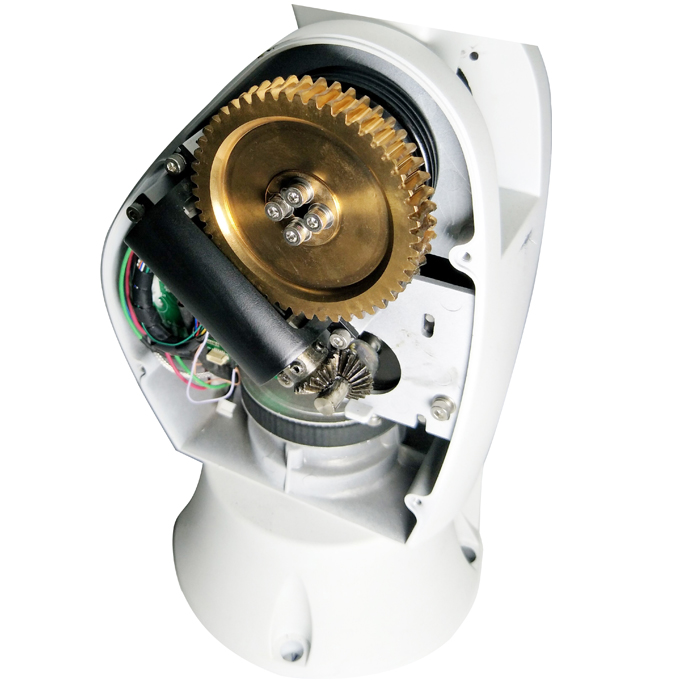

Rotation accuracy less than 0.1°, no jitter at any speed
Technical parameters
Download PDF
Technical parameters
| Model | SVN-33ATX900 |
| Camera | |
| Sensor | 1/3" Progressive scanning SONY IMX323+NVP2441 |
| Total pixels | 2.0MP 1920(H)*1080(V) |
| Effective pixel | Approx. 2.07M pixels |
| Day&night | Color/B&W/Auto |
| Minimum illumination | Color: 0.1Lux , B&W: 0.01Lux |
| Synchronization | Inter-sync |
| Video output | AHD, 25/30fps |
| S/N | ≥50dB(AGC OFF) |
| Lens | |
| IRCUT | IRCUT |
| Automatic aperture | Support |
| Optical lens | 33X |
| FOV | 68.5°(Far)/ 4.2°(Near) |
| Function | |
| Exposure mode | Auto/Manual |
| Signal format switching | AHD/CVI/TVI/CVBS |
| White balance | Auto/Indoor/Outdoor/Manual |
| Focus mode | Auto/Manual |
| Gain control | Auto/Manual |
| Picture effect | Auto/Color/B&W |
| BLC | ON/OFF |
| Mirroring | Support(LR+UD) |
| Image flip | Support |
| Wide dynamic | D-WDR |
| Digital noise reduction | 2D/3D |
| Electronic shutter | 1/30s~1/10,000s |
| contrast ratio | Adjust |
| saturation | Adjust |
| Fog | Adjust |
| Edge illumination compensation | Support |
| PTZ | |
| Pan Range | 360° Continuous |
| Speed (H) | 0.1～100°/S |
| Tilt Range | -90～45° |
| Speed (V) | 0.1～50°/S |
| Positioning accuracy | 0.1° |
| Information display | Time OSD, custom OSD |
| Baud rate | 2400/4800/9600/19200bps |
| PTZ Interface | |
| Video output | 3GSDI(Female BNC) |
| Controller interface | Coaxial system RS485 |
| External input | 2CH alarm input |
| Output port | 2 CH alarm output / 1 CH relay output |
| General | |
| Power Supply | AC24V/3.0A |
| Power Consumption | ≤60W |
| Working Environment | -40℃～60℃,0～95%(no condensation) |
| Protection level | IP66, built-in 4000V lightning protection, anti-surge and anti-surge protection |
| Installation method | Column, wall, corner |
| Entry cable | Side outlet / lower end outlet optional |

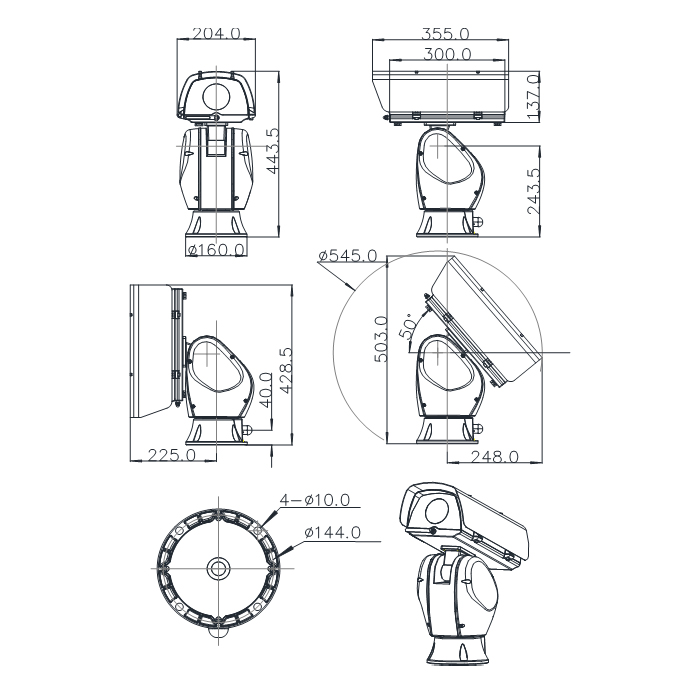

| Dimension | L355.0mm×W204.0mm×H443.5mm |
| Product weight | 8.5kg |
| Bearing weight | ≤8kg (including movement cover) |
| Bearer mode | Top load |
