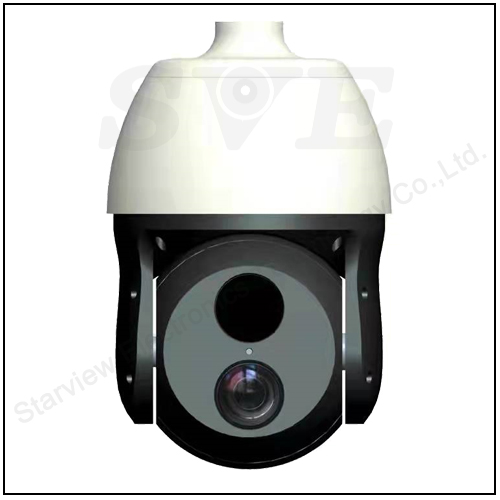

Dual sensor PTZ Camera with Thermal Imaging
Key Features
2.0MP 1/2.8” Progressive Scan CMOS;
33X(F5.5-180mm) optical zoom;
Optional Thermal Lens, up to 40mm;
640*480 resolution, high sensitivity sensor, support contrast adjustment;
Weatherproof IP66, TVS 3000V;
ONVIF 2.4 comply;
Features
Features
High strength alloy aluminum integral die casting shell, internal all metal structure;
Super heat dissipation design reduces the temperature of the inner cavity of the dome camera and prevents the inner cover of the dome camera from fogging;
Anti-impact, anti-corrosion, protection grade:IP66
Support 3D intelligent positioning function
Support power-off state memory function, after power-on, it will automatically return to the monitoring position before power-off or perform monitoring tasks before power-off
Idle action and unmanned operation can enter a variety of operation modes: guard position, automatic scanning, pattern scanning and automatic cruise
Support the power-on action, the dome will execute the scheduled monitoring task after power-on
Support H.264/H.265 video compression algorithm, ultra-low bit stream
Real-time preview, control and parameter setting can be done through WEB browser and client software
Support Micro SD (TF) card storage
Technical parameters
Technical parameters
| Model | |
| Model No. | SVN-30X80TH-W |
| Thermal Imaging | |
| Detector | Uncooled amorphous silicon FPA |
| Array format/Pixel pitch | 384x288/17μm ; 640x480/17μm |
| Lens | 40mm |
| Sensitivity(NETD) | ≤50mk@300K |
| Digital Zoom | 1x, 2x, 4x |
| Pseudo color | 9 Psedudo Color palettes changeable; White Hot/black hot |
| Visible Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color:0.001 Lux @(F1.5,AGC ON); Black:0.0005Lux @(F1.5,AGC ON);IR:0Lux |
| Shutter | 1/2-1/20000, Support Slow Shutter |
| Day/Night Switch | IR cut filter |
| Focal Length | 5.5-180mm;33x optical zoom |
| Digital zoom | 16X |
| Aperture Range | F1.5-F4.0 |
| HOV | 60.5-2.3°(wide-tele) |
| Minimum Working distance | 100mm-1000m |
| Video Compression | H.265 / H.264 |
| Audio Compression | G.711A/G.711U/AAC |
| Main Stream | 1920*1080@30fps; 1280*720@30fps; 720*576@25fps; |
| Third Stream | Support |
| BLC | Support |
| Exposure mode | AE / Aperture Priority / Shutter Priority / Manual Exposure |
| Focus mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus |
| Area exposure / focus | Support |
| Optical fog | Support |
| Image stabilization | Support |
| 3D noise reduction | Support |
| Protocol | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, QoS, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SIP |
| Interface Protocol | ONVIF2.4 |
| Storage | Support Micro SD storage, maximum 128GB |
| Pan/Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | keyboard control:180°/s, Manual: 0.05°/s ~ 120°/s |
| Tilt Range | –15° ~ +93° |
| Tilt Speed | keyboard control:150°/s, Manual: 0.05°/s ~ 100°/s |
| Proportional zoom | Support |
| Number of preset | 256 |
| Cruise scan | 6 lines, 18 preset points can be added to each line, and the dwell time can be set |
| Power-off memory | Support |
| 3D intelligent positioning | Support |
| Intelligent detection | Cross-border detection, Area intrusion detection, Entry/exit area detection, Wandering detection, Personnel gathering detection,Fast motion detection, Parking detection, Item leaving / taking detection, Scene change detection, Audio detection, Virtual focus detection, Face Detection |
| General | |
| Power | AC24V, Power consumption: 50w |
| COM/Protocol | RS 485/ PELCO-D/P |
| Video Output | 1 channel Thermal Imaging video; Network video, via Rj45 |
| 1 channel HD video; Network video, via Rj45 | |
| Working temperature | -40℃~65℃ |
| Ingress Protection | IP66, TVS 3000V |

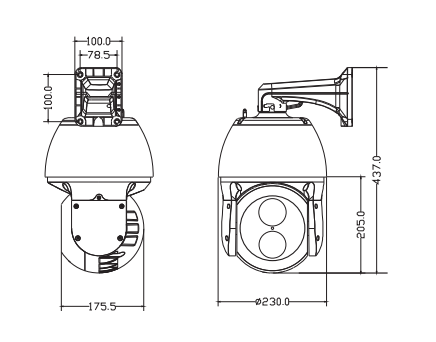

| Dimension | Φ230*437 mm |
