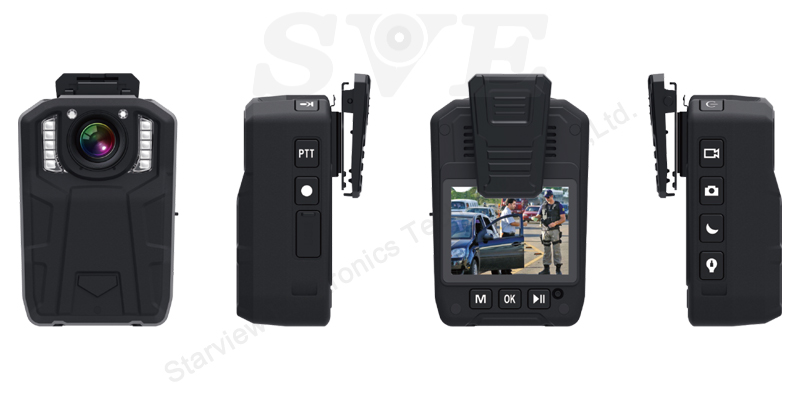

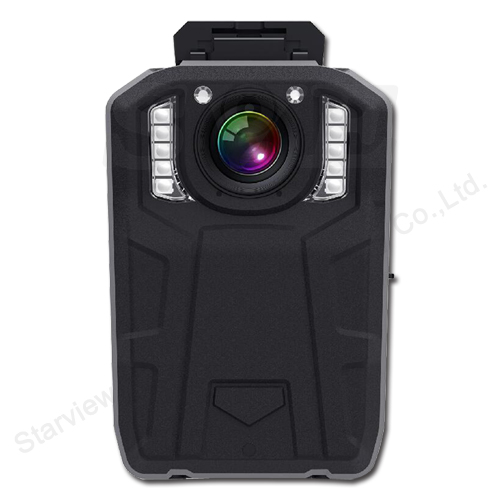

Law Enforcement Recorder, 6000mAh Police Camera
- Professional camera, video and audio simultaneously camcorder, zoom in 16x digital zoom, key shooting camera function, the max resolution of 2304*1296p
- A key camera, you can set a continuous camera and automatic camera function, in the video can also use the capture function to intercept the photos at that time, the camera pixel up to 36 million pixels
- Separate recording, dual mike noise reduction function
- Playback file, 2-inch LCD color display screen
- Super IR infrared light, white light illumination
- The key mark, when shooting, can be marked as a key document
- Alarm function, in case of emergency, a key can be used to open the alarm flash
- Super long watermark technology, including shooting time, police number, product number, has more legal benefits
- Super long file name technology, including shooting time, police number, product number, convenient search and classification management
- Password protection, equipped with special software can set passwords, unauthorized personnel cannot tamper with and delete files
- Ambarella A7 scheme with industrial grade CMOS photo sensor, 140° wide-angle lens, IP67
- 6000mAh rechargeable Lithium battery, once filled with continuous video recording for 16 hours, charging time is less than 8 hours;
- Equipped with 360°freely rotating back clip, optional shoulder light
| Model | SV-DSJD10 |
| System function | |
| Chip Set | Powerful Ambarella A7 core |
| Lens Angle | 140° |
| Storage | Built-in64G/128G |
| Digital Zoom | 16X（Maximum resolution without focusing） |
| OS | Windows(98/2000/ME/XP/7/8/10),Note: Win 8/10 needs to set disable digital signature |
| LCD | 2.0 inch,LCD Full HD screen,diagonal≥51mm |
| Superimposed watermarking | Support |
| Local playback | Support(Live playback of video / photos / audio files) |
| One click replay | Support(One click replay of the latest recording files) |
| Segmented video | Support(Can set a variety of time segmented video) |
| Key markers | Support(One shot key video recording during video shooting) |
| Password protection | Support(Software password protection, anti tampering, anti delete) |
| Log function | Support(Additional time, product number, user number and so on) |
| Motion detection | Spport(Picture object moving, automatic opening video mode) |
| Voice Announcements | Support(Start the user number and the whole point timekeeping) |
| Vehicle mode | Support(It can be used as a vehicle recorder) |
| Alarm function | Support(Long press menu key to present alarm sound and alarm flash) |
| Floodlight | Support(At night when the lights and lights) |
| Video function | |
| Video format | MOV/MP4/AVI |
| Recording Resolution | 2560x1080 30P 2304x1296 30 P 1920x1080 30P 1280x720 60P/30P 848X480 60P/30P |
| Video function | One click Camcorder(In the state of shutdown, the video key can be pressed directly to enter the video status) |
| Cyclic video recording | Support(When the memory is full, the system automatically deletes the previous paragraph and records it) |
| Video capture | Support |
| Fast forward and rewind | Suppor 2-128X Fast forward and rewind |
| Pre recorded / deferred recording | Support(The default resolution is pre recorded for 26 seconds, and the extension can be set) |
| Camera function | |
| Photo format | JPEG |
| Camera pixel | 33M(7696X4329) 16M(4608x3456) 12M(4000x3000) 8M(3200x2400) 5M(2560x1920) |
| Slide | Support photos automatically play by turns |
| Shake Reduction | Electronic anti shake |
| Shutter Control | Electronic shutter |
| Exposure mode | Automatic |
| Recording function | |
| Audio format | WAV |
| One touch recording | Support single recording, double Mike anti noise |
| Infra-red | |
| Infrared night vision | 10 m to see the face, 20 m to see the outline of the human body |
| Infrared switching | Manual / automatic switching |
| Battery | |
| Battery capacity | Built in 6000mAh rechargeable lithium battery |
| Charging time | ≦8H |
| Video time | Once filled, not infrared, recordable for 16 hours, infrared open for 8 hours |
| Appearance structure | |
| weight | 182g+15g(Host + back clip) |
| Appearance size | 83x58.5x35mm |
| Protection grade | IP67 |
| Anti drop grade | 2.5M |
| Working environment temperature | -30℃～55℃ |
| Interface | USB 2.0 |
| Parts | |
| Standard accessories | Main engine, back clip, long shoulder clamp, data line,Charger, CD, instruction book, certificate, packing box |
