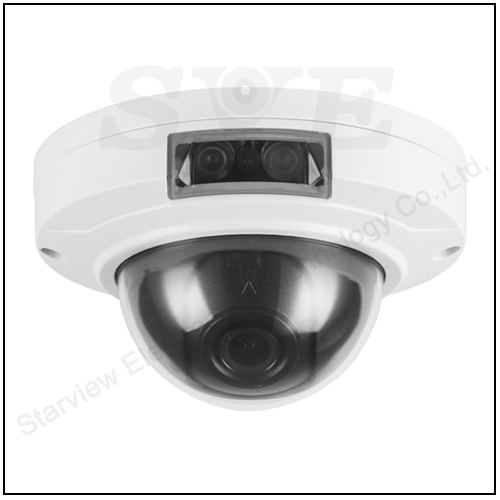

5.0MP IP Fisheye WiFi IP67 Waterproof Mini Security Dome Camera
Key Features
- 5.0 megapixel resolution(2560x1920).
- Minimum illumination color 0.5Lux@F1.2,black 0.01Lux@F1.2
- H.265 High Profile Level&MJPEG dual-stream encoding
- Day/Night(ICR)&3D DNR&AWB&AGC&BLC ,Digital WDR
- Power supply DC12V&POE IEEE802.3af(Optional)
- P2P function support IOS&Android
- Onvif 2.4
- Support 128G SD Card
| Model | SVN-D8HF5 |
| Camera | |
| Media Processor | High-performance Hisilicon DSP |
| Image Sensor | 1/2.8" 3516EV300+IMX335 |
| Video Rate | 32Kbps~6Mbps |
| Array IR Range | 15m-20m |
| Day&Night | IR cut filter with auto switch |
| Compression ( Audio Optional) | |
| Video Compression | H.265/MJPEG |
| H.264 coding standard | H.265 Baseline/MainProfile/HighProfile |
| Audio Compression | G.711a/G.711u/RAW_PCM |
| Audio Bit Rate | G.711a(8kbps)/G.711u(8kbps)/RAW_PCM(16kbps) |
| Image | |
| Max Stream | 2560x1920 @15fps |
| Digital Noise Reduction | 2DNR,3DNR |
| Frame Rate | Main Stream : 2560x1920 |
| Network | |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect, storage exception |
| Protocols | TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET |
| Onvif | V2.4Version |
| Interface | |
| Power | DC12V/POE |
| Network | 1 RJ45 10M/100M adaptive Ethernet port |
| General Specifications | |
| Operating Conditions | 0 ~ 55 ºC,humidty less than 10 ~ 95% |
| Power Supply | DC12V±10% & POE IEEE802.3af(Optional) |
| Power Consumption | 4W |
| Weather proof rating | IP67 |

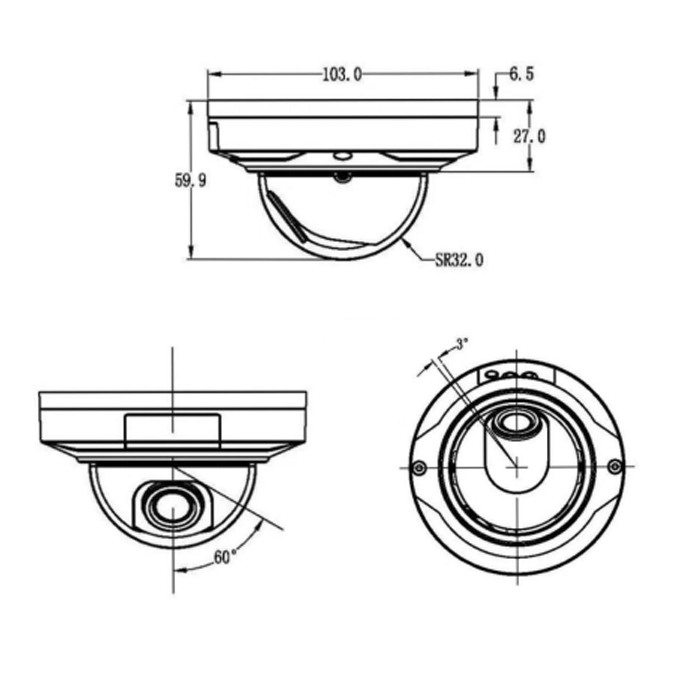

| Dimensions:mm | 103x60mm |
| Weight(kg) | 0.4 |
