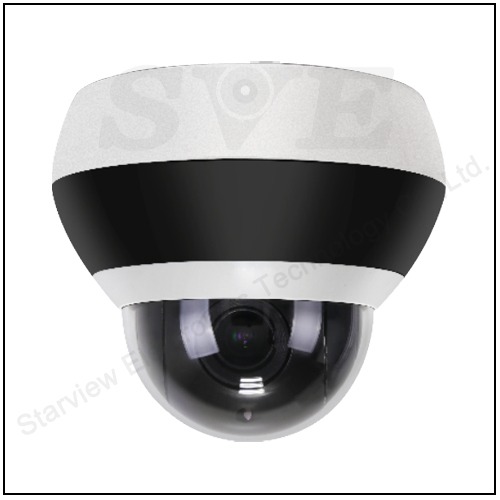

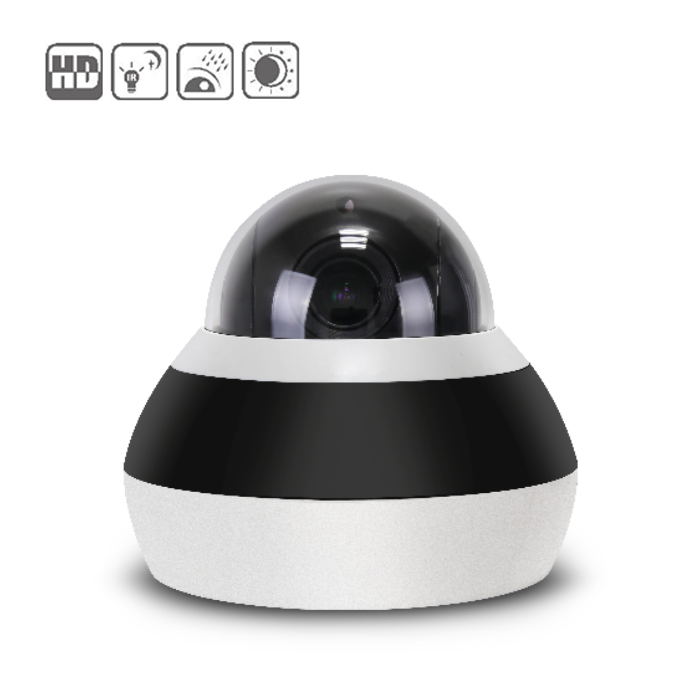

3 Inch 5MP Analog HD IR High Speed Dome Security Camera
Application
Can be widely used in the need for a wide range of high-definition quality monitoring sites, the use of scenarios: warehouse,underground.parking, access,staircase, supermarkets, Internet cafes, etc.
Product Overview
5.0MP 1/2.7" Low illumination 2477+05A10 CMOS, 4X optical zoom;

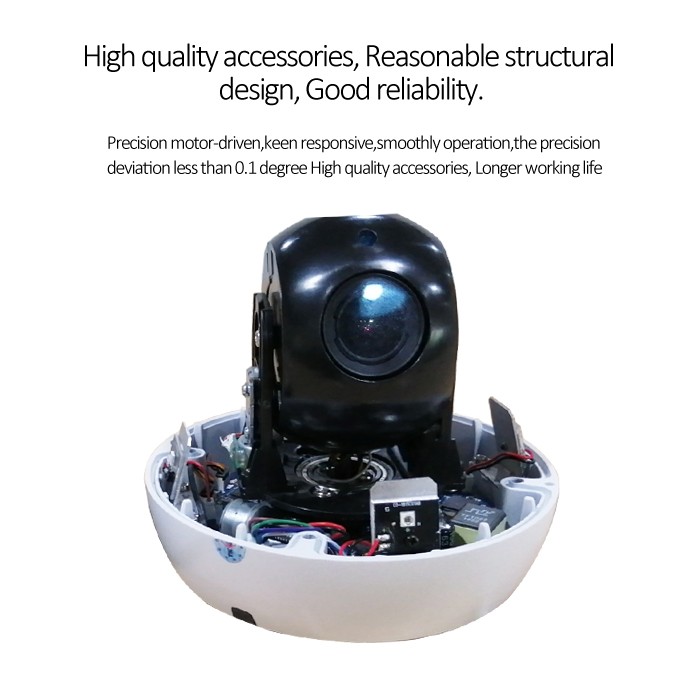

Precision worm gear driven, keen responsive, smoothly operation, the precision deviation less than 0.1 degree;
Support lightning protection, surge protection and voltage transient protection;
Protection Grade: IP66;
Support coaxial control, the distance of video transmission up to 500 meters in theory;
Metal plus plastic case, support AHD /TVI / CVI / CVBS 4 in 1 signal mode switch.
Feature
4PCS Infrared lights, effective IR distance up to 20m.

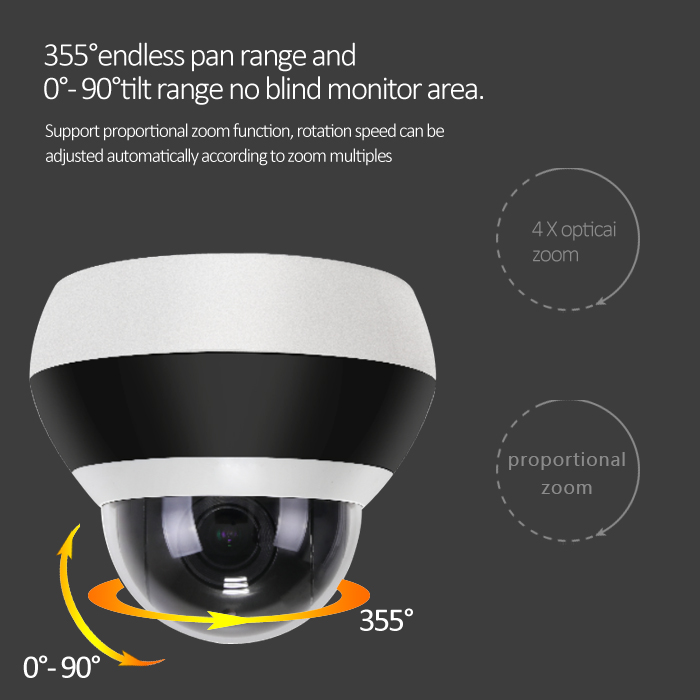

355°endless pan range and 0°- 90°tilt range no blind monitor area.
Max. pan preset speed of 80°/s and max. tilt preset speed of 80°/s
Pan control speed 0°~80°/s, tilt control speed 0°~80°/s
Support 220 presets,
Support Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiple.
Support park action, presets can invoke automatically after a defined time of inactivity
(contain the idling condition after the power supply has been turn on)
Technical Parameters
Can be widely used in the need for a wide range of high-definition quality monitoring sites, the use of scenarios: warehouse,underground.parking, access,staircase, supermarkets, Internet cafes, etc.
Product Overview
5.0MP 1/2.7" Low illumination 2477+05A10 CMOS, 4X optical zoom;
Precision worm gear driven, keen responsive, smoothly operation, the precision deviation less than 0.1 degree;
Support lightning protection, surge protection and voltage transient protection;
Protection Grade: IP66;
Support coaxial control, the distance of video transmission up to 500 meters in theory;
Metal plus plastic case, support AHD /TVI / CVI / CVBS 4 in 1 signal mode switch.
Feature
4PCS Infrared lights, effective IR distance up to 20m.
355°endless pan range and 0°- 90°tilt range no blind monitor area.
Max. pan preset speed of 80°/s and max. tilt preset speed of 80°/s
Pan control speed 0°~80°/s, tilt control speed 0°~80°/s
Support 220 presets,
Support Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiple.
Support park action, presets can invoke automatically after a defined time of inactivity
(contain the idling condition after the power supply has been turn on)
Technical Parameters
| Model | SV-YCD-CG504 | ||
| PTZ | IR distance | 20m | |
| Pan range and speed | Pan 355°endless rotate, speed 0°~80°/S | ||
| Tilt range and speed | 0°~90°, speed 0°~80°/S | ||
| Preset | 220x | ||
| line scan |
support 1x AB line scan |
||
| Park action | Support, can select preset | ||
| Zoom camera | Video parameter | Resolution |
5.0 MP |
| Sensor | 1/2.5'' 5.0M IMX 2477+05A10 | ||
| Illumination | Color:0.1Lux@F2 Black:0.01Lux@F2 | ||
| S/N | ≥41dB | ||
| Lens Parameter | Optical zoom | 4X, 2.8 mm~12mm; F1.7-F3.0 | |
| Angle view | 134.9°(Near) ~34.1°(Far) | ||
| function | White balance | auto/manual | |
| Exposure mode | auto/manual | ||
| BLC | Support | ||
| Gain control | Auto/manual | ||
| Electronic shutter | AUTO/ 1/50(1/60) -1/50000sec | ||
| DNR | 2D/3D digital | ||
| Focus mode | auto/manual | ||
| Day-night mode | Support | ||
| Video output | AHD,TVI,CVI,CVBS | ||
| Port | Video port | BNC port | |
| Power port | DC 12V/2A | ||
| Others | Consumption | 10W(max) | |
| Working temperature/Humidity | -20ºC~+60ºC, ≤90%RH(frostless) | ||
| Protection grade | IP66 for outside | ||
| Protection Grade |
TVS3000V lightning protection, surge protection and voltage transient protection |
||
