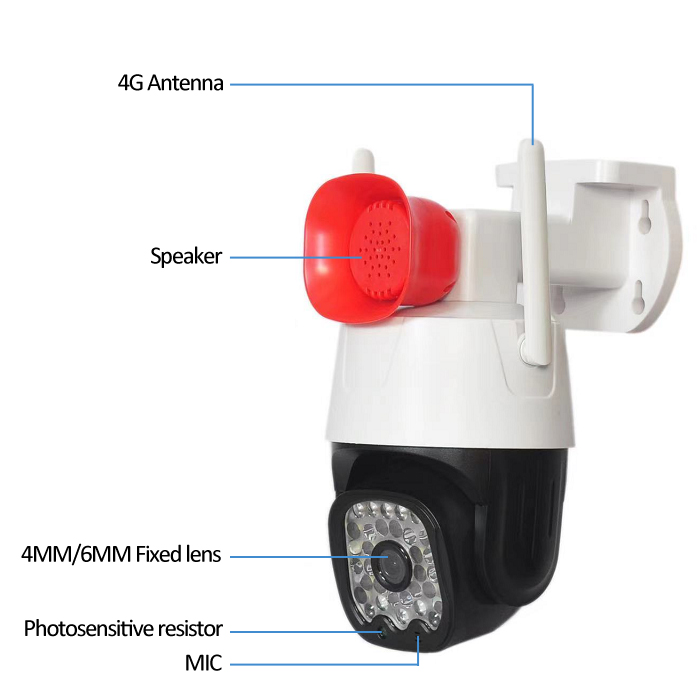

Horizontal: 265°, Vertical: 90°, Support 8 preset points;

4mm Fixed lens, 4G;

Double IR-CUT; IR/White light Distance: 30M

Support ONVIF, Two-way voice, Humanoid detection;

H. 264 / H.265 video coding, supporting dual bit rate, 0.1m-8mbps;

Support multiple devices to watch one device at the same time

Maximum 128G TF card storage

Cable output for Active speaker

Technical parameters

Model
Model No.	SVN-4CWS32-4G
Camera
Resolution	1920*1080
Frame rate	1-30fps
Min. Illumination	Color:0.1 Lux; Black:0.01Lux;
CMOS performance	Support ATW/automatic gain control/automatic BLC, Humanoid detection
Lens	4mm; 6mm(Optical)
Audio
Coding standard	AMR/G.711A
Audio input	1 CH built-in - 38dB microphone
Audio output	Built in speaker (8 Ω 1W)
TF Card
Storage	Maximum support 128G
Recording	Timed recording, Alarm recording
Network
Network interface	10Mbps/100Mbps adaptive/RJ45 interface

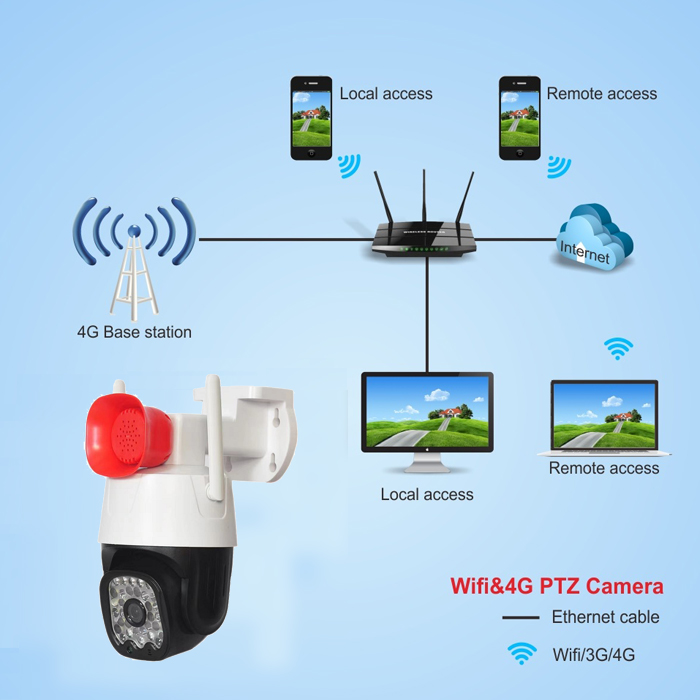

Network protocol	TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,P2P
Alarm
Alarm method	Motion Detection
Alarm Output	APP push
General
Power	DC12V 2A
Power consumption	Daytime: 5W, infrared activation at night: 8W
Working temperature	-10℃~50℃
Working humidity	≤80%RH
Package Dimension	200*200*120 mm
Weight	0.8 kg

DownLoad PDF
