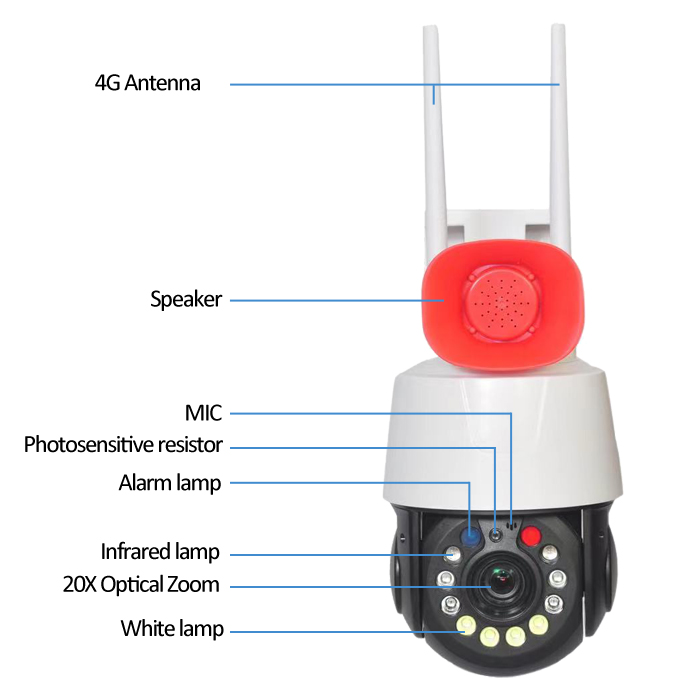

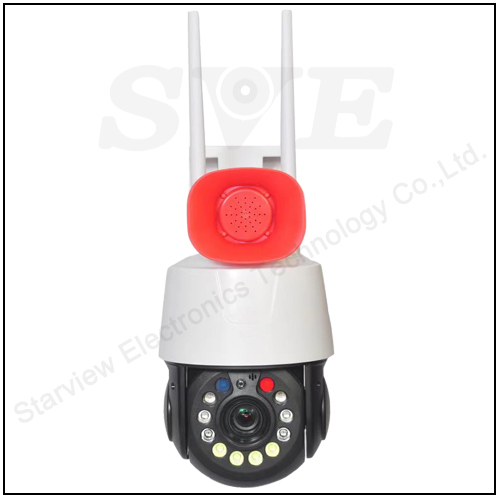

5" 4G 2MP 20X Zoom IP PTZ Camera with Speaker
Key Features
2MP 20X Optical Zoom, Auto focus;
Horizontal: 355°, Vertical: 90°, Continuous scanning;

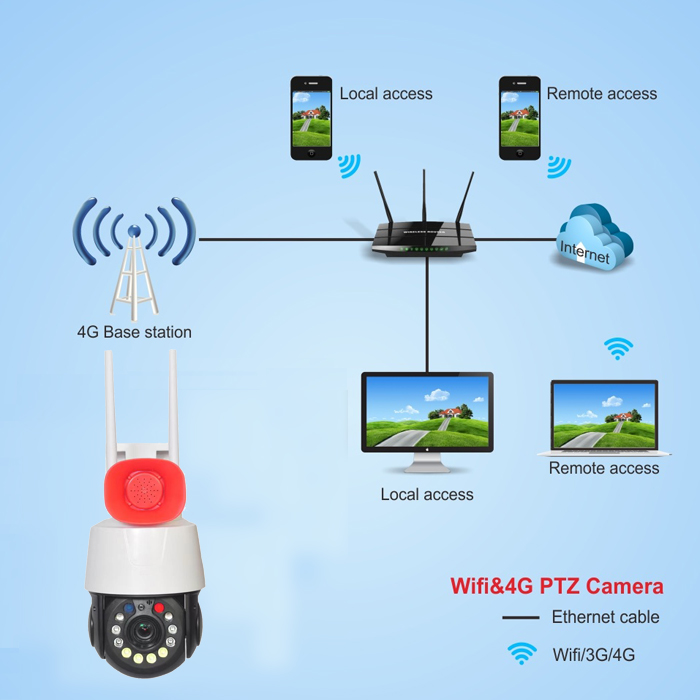

Dual mode connection, 4G/Netwrok Connect;
Automatically correct infrared virtual focus; IR Distance: 100-150M
Red and blue lamp warning,Alarm voice customization, Two-way voice, Humanoid detection
H. 264 / H.265 video coding, supporting dual bit rate, 0.1m-8mbps;
Support multiple devices to watch one device at the same time
Maximum 128G TF card storage
Technical parameters
Technical parameters
| Model | |
| Model No. | SVN-20XCW52-4G |
| Camera | |
| Processor | Guoke |
| Image sensor | 2MP CMOS Sensor |
| Resolution | 1920*1080 |
| Frame rate | 1-25fps |
| Min. Illumination | Color:0.1 Lux; Black:0.01Lux; |
| CMOS performance | Support ATW/automatic gain control/automatic BLC, Humanoid detection |
| Audio | |
| Coding standard | AMR/G.711A |
| Audio input | 1 CH built-in - 38dB microphone |
| Audio output | External intercom horn |
| TF Card | |
| Storage | Maximum support 128G |
| Recording | Timed recording, Alarm recording |
| Network | |
| Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,P2P |
| Alarm | |
| Alarm method | Motion Detection |
| Alarm Output | APP push |
| General | |
| Power | DC12V 3A |
| Power consumption | Daytime: 5W, infrared activation at night: 12W |
| Working temperature | -10℃~50℃ |
| Working humidity | ≤80%RH |
| Package | |
| Dimension | 311*260*170 mm |
| Quantity | 1pcs |
| Weight | 1.9 kg |
| Box Package | |
| Dimension | 620*520*350mm |
| Quantity | 8pcs |
| Weight | 16kg |
