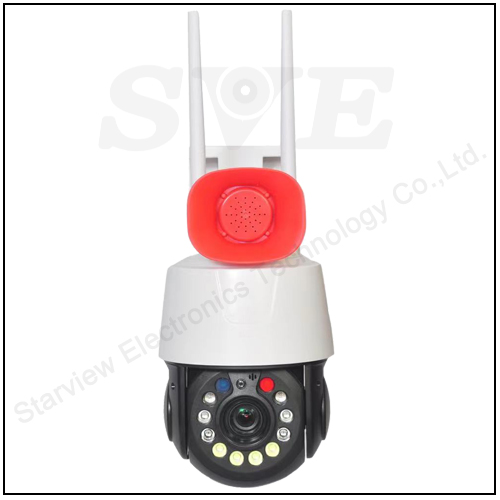

5" 4G 5MP 20X Zoom IP PTZ Camera with Speaker

5MP 20X Optical Zoom, Auto focus;

Horizontal: 355°, Vertical: 90°, Continuous scanning;

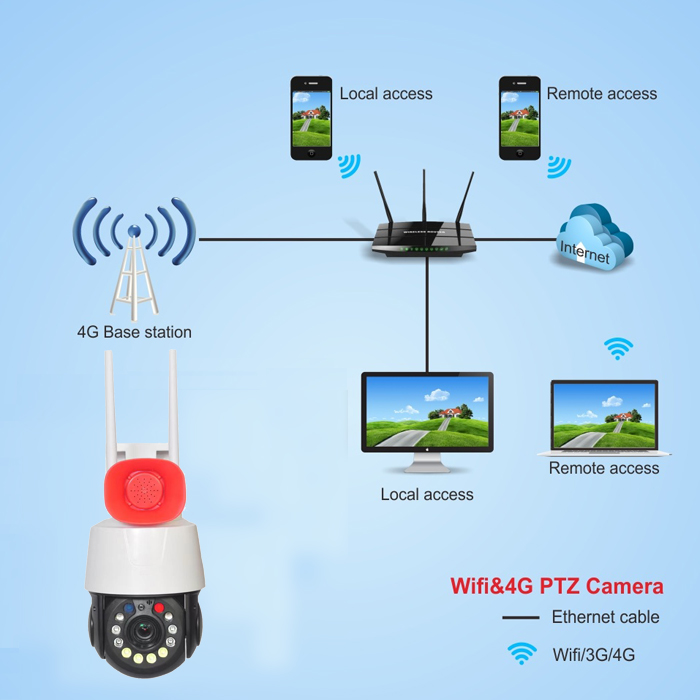

Dual mode connection, 4G/Netwrok Connect;

Automatically correct infrared virtual focus; IR Distance: 100-150M

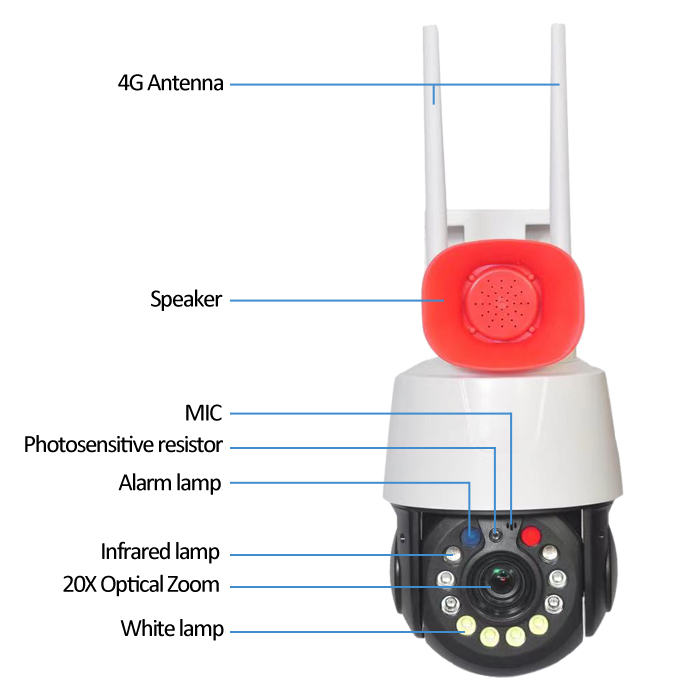

Red and blue lamp warning,Alarm voice customization, Two-way voice, Humanoid detection

H. 264 / H.265 video coding, supporting dual bit rate, 0.1m-8mbps;

Support multiple devices to watch one device at the same time

Maximum 128G TF card storage

Technical parameters

Model
Model No.	SVN-20XCW55-4G
Camera
Processor	Hisilicon
Image sensor	5MP CMOS Sensor
Resolution	2560*1920
Frame rate	1-25fps
Min. Illumination	Color:0.1 Lux; Black:0.01Lux;
CMOS performance	Support ATW/automatic gain control/automatic BLC, Humanoid detection
Audio
Coding standard	AMR/G.711A
Audio input	1 CH built-in - 38dB microphone
Audio output	External intercom horn
TF Card
Storage	Maximum support 128G
Recording	Timed recording, Alarm recording
Network
Network interface	10Mbps/100Mbps adaptive/RJ45 interface
Network protocol	TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,P2P
Alarm
Alarm method	Motion Detection
Alarm Output	APP push
General
Power	DC12V 3A
Power consumption	Daytime: 5W, infrared activation at night: 12W
Working temperature	-10℃~50℃
Working humidity	≤80%RH
Package
Dimension	311*260*170 mm
Quantity	1pcs
Weight	1.9 kg
Box Package
Dimension	540*535*630mm
Quantity	12pcs
Weight	24kg
