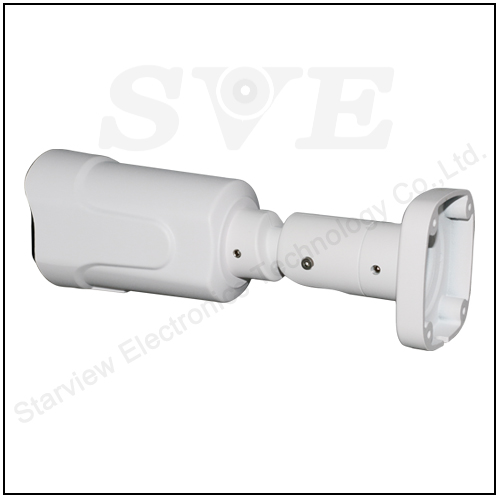

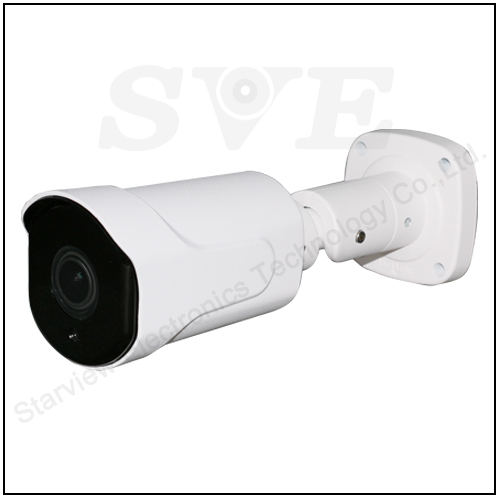

20m IR Range PNP Motion Detection IP Poe CCTV Network Security H. 265 Onvif IP66 Bullet Camera
Features:
Waterproof IR Bullet Camera Water Resistance: IP66
IR LED: 14μX12pcs, IR Range: 20M
Obscured glass, hidden IR Led
Video Output: 1 x RJ45 port
Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10ºC~ +60ºC
Size: 179 x 70mm x 73mm
Weight:650g
Specifications
| Model ID | SVN-WQB20L | SVN-WQB20T | SVN-WQB30C | SVN-WQB40P | SVN-WQB50X |
| Description | Waterproof IR Bullet IP Camera ,Water Resistance: IP66,IR LED: 14μX12PCS, IR Range: 20M | ||||
| TV System | NTSC / PAL | ||||
| Video Output | 1 x RJ45 port | ||||
| Chipset Solution |
1/2.8" 2.0 MP CMOS SC307E + XM530 |
1/2.8" 2.0 MP CMOS SONY IMX307 + HI3516EV200 |
1/2.7" 3.0 MP CMOS SC4239 + Hi3516CV200 |
1/2.7" 4.0 MP CMOS SC5239 + XM530 |
1/3" 5.0 MP CMOS SONY IMX335 + HI3516EV300 |
| Resolution |
1080P@20fps 720P@25fps |
1080P@20fps 720P@25fps |
1080P@20fps 720P@25fps |
1080P@20fps 720P@25fps |
3MP@25fps 1080P@25fps |
| Effective Pixels | 1920(H)×1080(V) | 1920(H)×1080(V) | 2048(H)×1536(V) | 2592(H)×1520(V) | 2592(H)×1944(V) |
| Minimum Illumination | 0.001Lux | ||||
| Lens | 3.6mm(5M Pixels) | 3.6mm(5M Pixels) | 3.6mm(5M Pixels) | 3.6mm(5M Pixels) | 3.6mm(5M Pixels) |
| 2.8mm( Optional ) | 2.8mm( Optional ) | 2.8mm( Optional ) | 2.8mm( Optional ) | 2.8mm( Optional ) | |
| Sync,System | Internal Synchronization | ||||
| Network | 1 RJ45 Ethernet interface, 10/100M adaptation | ||||
| Video Compression | H.265 compression | ||||
| Protocol | Support Gmail/GOOGLE/QQ/EMAIL | ||||
| Onvif | Support Onvif | ||||
| S/N Ratio | ≥ 58dB | ||||
| POE | Built-in PoE (Optional) | ||||
| OSD | YES | ||||
| WIFI | Optional | ||||
| Power Source | DC 12V/2A | ||||
| Consumption | <5W | ||||
| Operating Enviroment | -10ºC~60ºC / 10% ~ 95%RH | ||||
| Working Humidity | ≤90% | ||||
| Size(mm) | 179 x 70mm x 73mm | ||||
| Weight(kg) | 0.65kg | ||||
