4G network, Ultra-low flow, rest assured to use;

1080P HD resolution, 30fps High frame rate image;

Broader Vision, more comprehensive observation 140° large wide angle lens;

8PCS 940nm IR LEDS without exposure infrared light. The night vision range up to 5 meters;

PIR human detection reduces invalid false positives;

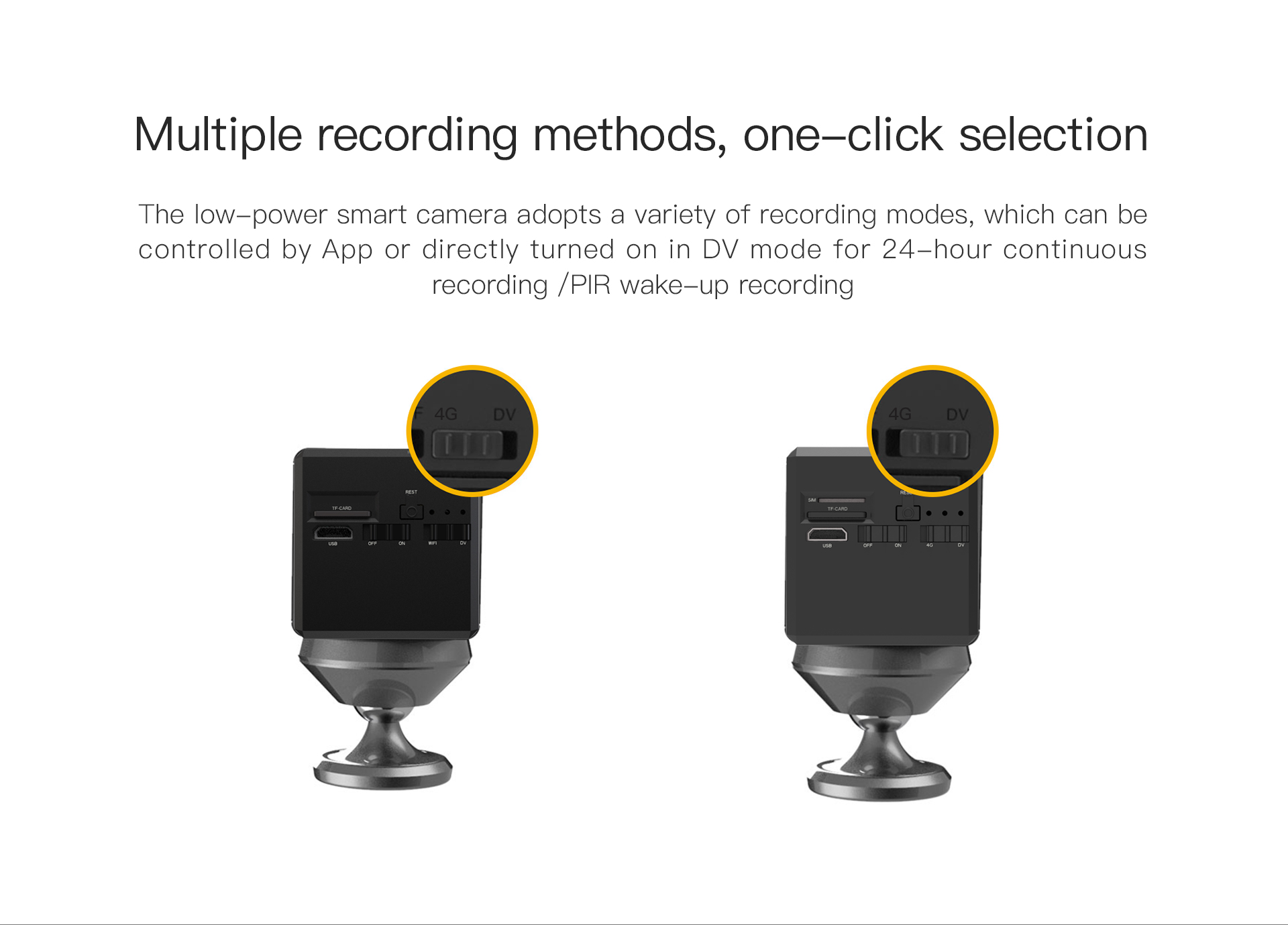

Multiple recording methods, one-click selection;

Built-in 2600mAH battery, standy for up to 2 year

Technical parameters

Model

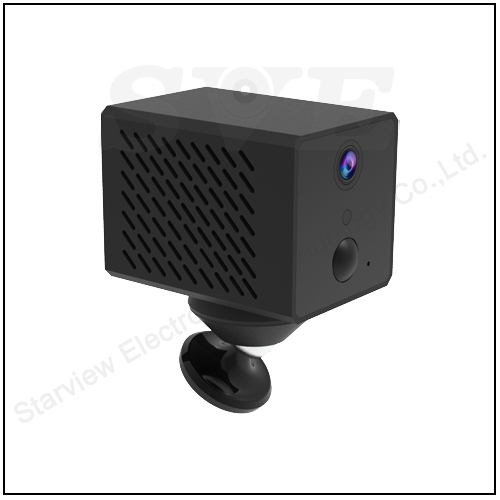

Model No.	SVN-4GM1
System
Operation system	Lite OS
Online visitor	Support 4 visitors at the same time
Image Capture
Image sensor	GC2053,1/2.9 inch 1080p progressive scan CMOS sensor (100W/200W/300W optional)
Minimum Illumination	0.3-0.5Lux(color mode), 0 Lux(B&W mode)
Lens	GC2053 integrated module
View Angle	140˚(Diagonal)
Night vision	Photosensitive filter with auto-switching，8pcs 940nm SMD IR LED, IR irradiation distance:3~5 m
Video
Encode format	H.264+main Profile/H.264 Baseline Profile/MJPEF/JPEG Baseline
Streams	1080P@30fps+VGA@30fps+360P@4fps JPEG snapshot
Bit Rate	128～4096kbps
Maximum frame rate	30fps
Image adjustment	Auto
Audio
Input	Built-in 38db microphone
Output	Built-in 8 Ω 1 w speakers
Sampling frequency /Bit width	8KHz/16bit
Compression standard /code rate	ADPCM/32kbps
Network frequency
Mainland China	FDD: B1/B3/B5/B8 TDD: B34/B38/B39/B40/B41 WCDMA: B1/B5/B8
EU/Southeast Asia	WCDMA: B1/B5/B8 FDD: B1/B3/B5/B7/B8/B20 TDD: B38/B40/B41
Socket	TF Push-push socket,Maximum support 256GB; Cloud Storage
Alarm Trigger	Support PIR detection
Physical Environmental
Rated voltage	DC5V±5%
Power supply	Built-in 2600mAh batteries/USB DC5V
Power consumption	Sleep mode: 5mA   working mode: 500mA
Operating condition	Temperature:-10～50℃,humidity:＜90%
Weight	Net: 90g  Gross：240g (Note: in kind prevail)

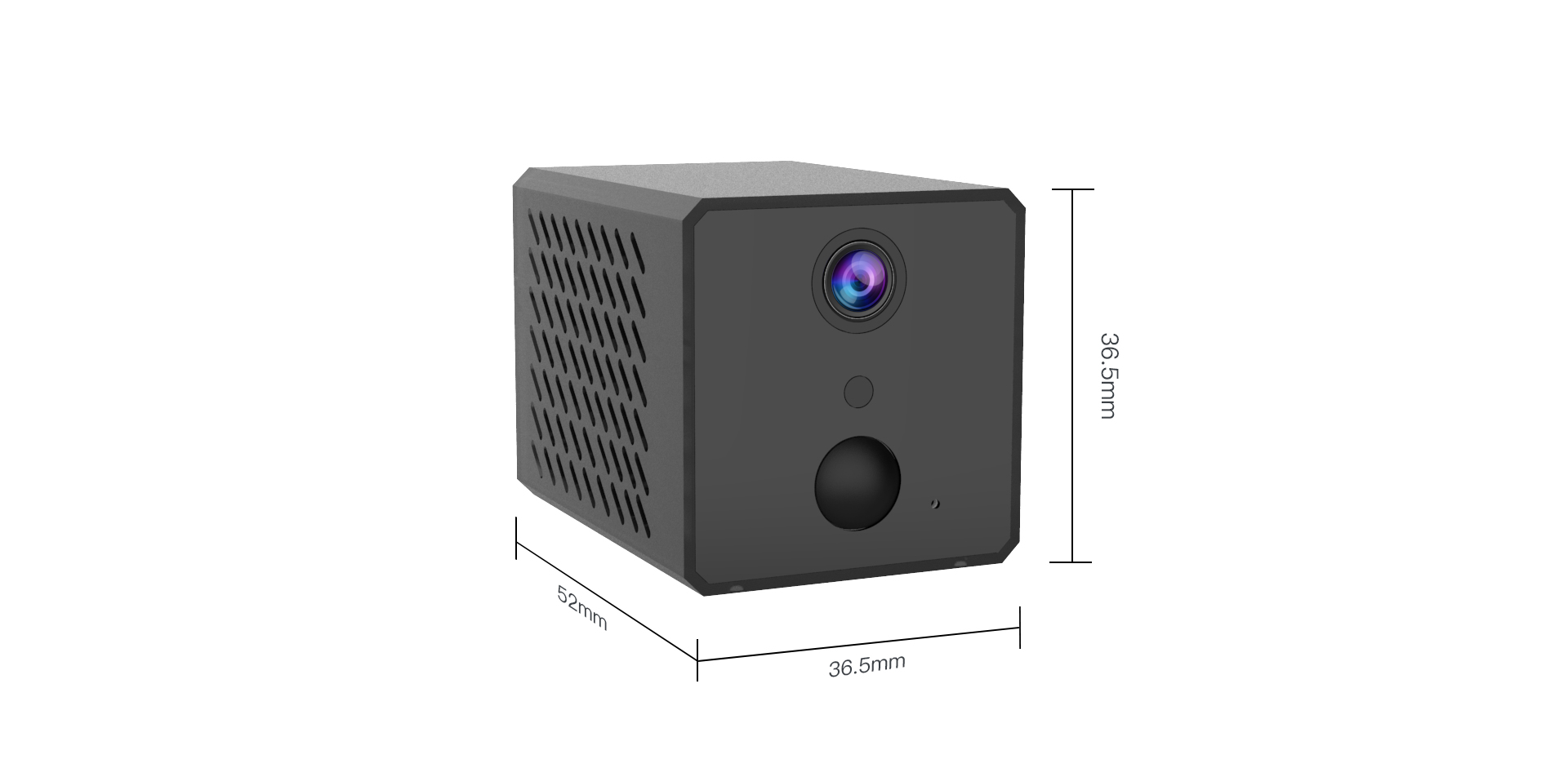

Package size	130x90x45 mm (L×W×H)
