4.5 Inch 4K 18X Optical Zoom IP WDR IR Onvif PTZ Speed Dome Security Camera

、
Key Features
Support P2P function Through Danale App;
Key Features
Support P2P function Through Danale App;
4.5" body construction,20X optional;

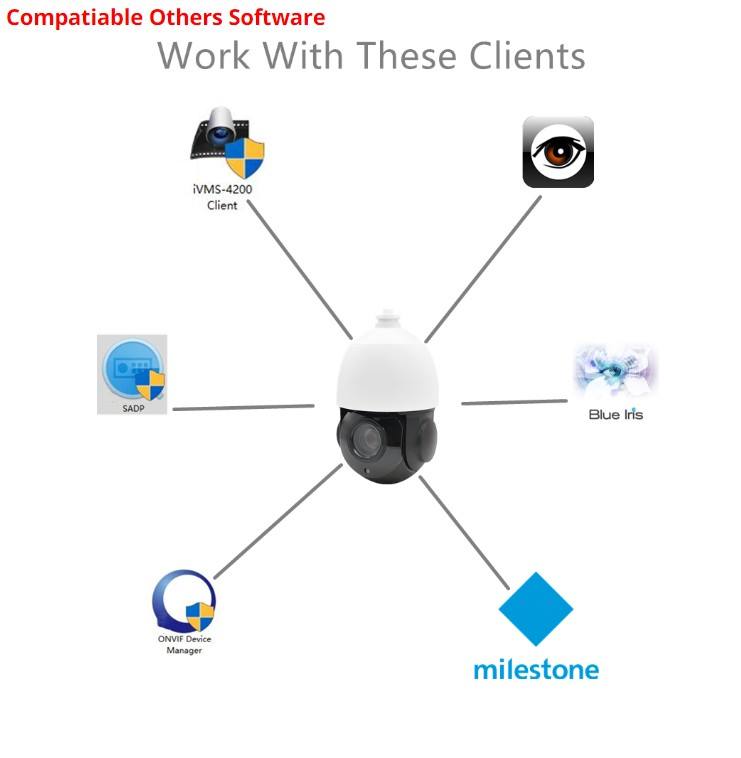

Compatible with CMS, UC2,Milestone and AXXON platform;
ONVIF2.4; Compatible with HIKVISION ,DAHUA, XM,Video park NVR;
Intelligent IR illumination & power consumption is variable, dependant the zoom factor;
Technical parameters





Technical parameters
Model | ||
Model No. | SVN-20BA1P-4K | |
Camera | ||
Sensor | Mstar Chipset 8MP SONY415 | |
Output Pixel | 3840x2160@22fps | |
Lens | 20X f=4.7mm~85mm | |
BLC | Support | |
AGC | Auto/manual | |
WB | Auto/manual/indoor/outdoor | |
DNR | 2DNR,3DNR | |
WDR | DWDR | WDR≥79dB |
S/N Ratio | ≥50dB | |
Dome | ||
Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | |
Software Control | IE, CMS, Management Platform | |
Mobile View(optional) | Support Windows, iPhone platform smartphone | |
Video compression | H.265/M-JPEG | |
Audio compression | G711,PCM | |
Rotation Range | Pan: 0°~360° , Tilt: 0°~93° | |
Rotation Speed | Pan: 0~80°/s , Tilt:0~40°/s | |
Auto Flip | Horizontal 180°, Vertical 93° | |
Preset Points | 220pcs presets(dwell time 01-60s interval available) | |
A-B scan | User programmabel(scan speed 1-64 levels setting available) | |
Guard Tours | 3 groups( Max.16 points, dwell time user selectable) | |
Operating temperature | -40℃~+70℃ | |
Operation menu | English | |
Power | DC 12V 3A | |
Consumption | ≤20W | |
Lightning Protection | Transient voltage 6000V | |
Related validation | IP66,CE,FCC,RoHs | |
IR parameters | ||
Auto Control IR LED | PWM | |
IR distance | Up to 100 meters | |
LEDs | 4PCS Array 42Mil IR LED+2PCS Laser LED |
