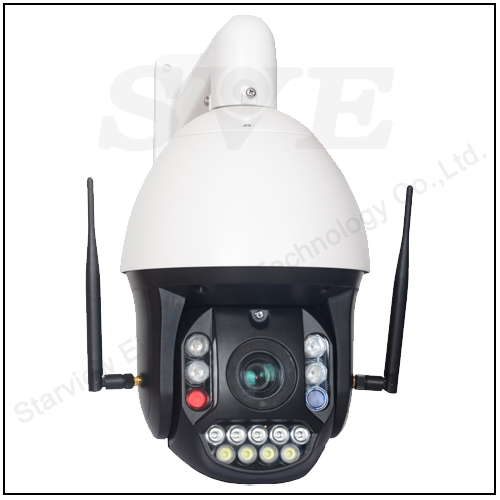

7" 4G 5MP 20X Zoom IP PTZ Speed Dome Camera with External Speaker
Key Features
- 5MP 20X Optical Zoom, Auto focus;
- Horizontal: 360°, Vertical: 90°, Continuous scanning;

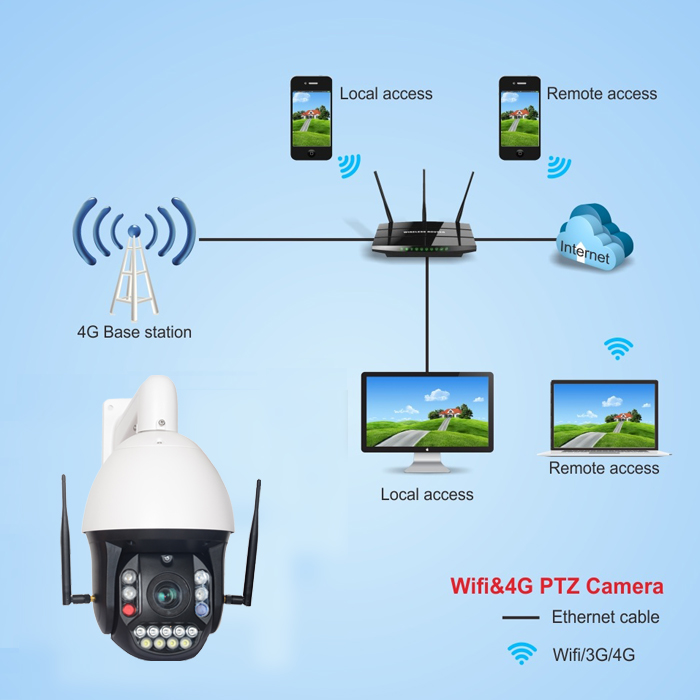

- Dual mode connection, 4G/Netwrok Connect;

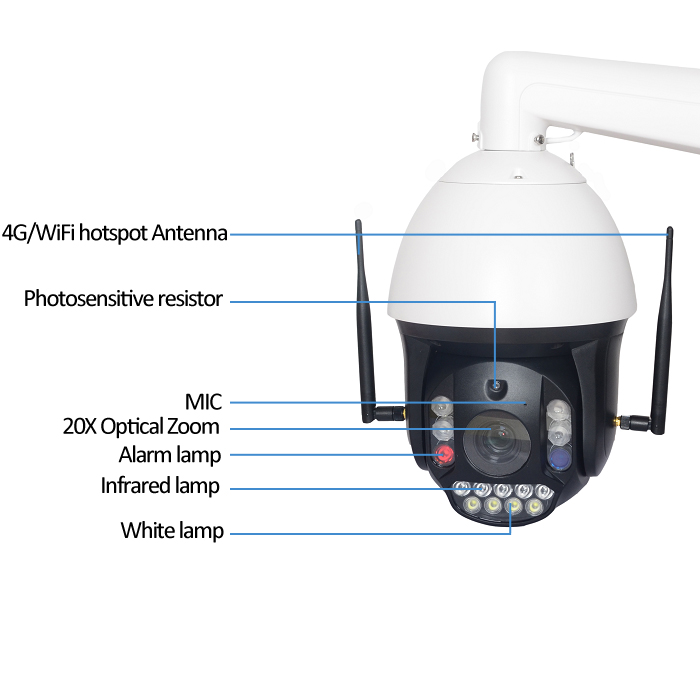

- Automatically correct infrared virtual focus; IR Distance: 200M(4 laser lights, 2 warning lights, 5 infrared lights, 4 white lights;)
- Red and blue lamp warning,Alarm voice customization, Two-way voice, Humanoid detection
- H. 264 / H.265 video coding, supporting dual bit rate, 0.1m-8mbps;
- Support multiple devices to watch one device at the same time
- Maximum 128G TF card storage
Technical parameters
| Model | |
| Model No. | SVN-20XCW75-4G |
| Camera | |
| Processor | Hisilicon |
| Image sensor | 5MP CMOS Sensor |
| Resolution | 2560*1920 |
| Frame rate | 1-25fps |
| Lens | 4.7mm~94mm |
| ZOOM | 20X Optical Zoom |

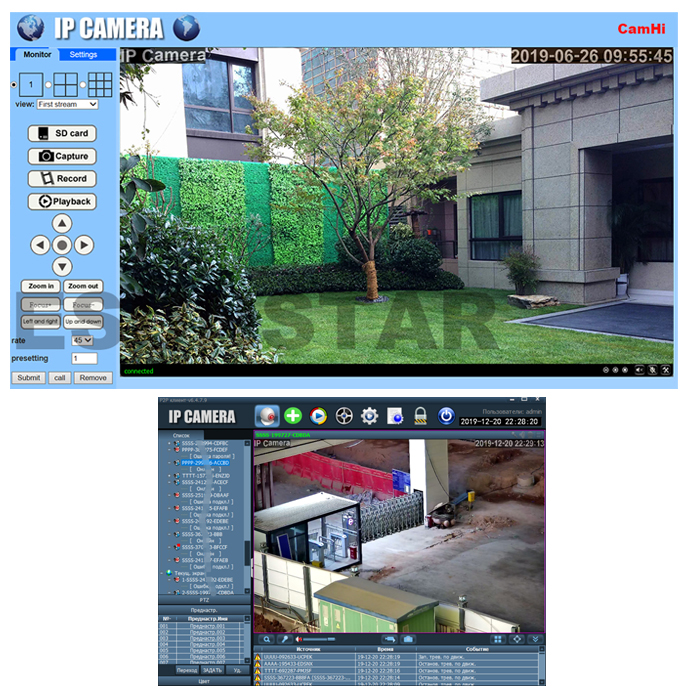

| APP | CamHi |
| IR distance | 200M |
| Min. Illumination | Color:0.1 Lux; Black:0.01Lux; |
| CMOS performance | Support ATW/automatic gain control/automatic BLC, Humanoid detection |
| Audio | |
| Coding standard | AMR/G.711A |
| Audio input | 1 CH built-in - 38dB microphone |
| Audio output | Built-in intercom speaker, Optional external 12W speaker |
| TF Card | |
| Storage | Maximum support 128G |
| Recording | Timed recording, Alarm recording |
| Network | |
| Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,P2P |
| Wireless | IEEE802.11b/g/n |
| Alarm | |
| Alarm method | Motion Detection |
| Alarm Output | APP push |
| General | |
| Power | DC12V 5A |
| Power consumption | Daytime: 5W, infrared activation at night: 12W |
| Working temperature | -10ºC~50ºC |
| Working humidity | ≤80%RH |
| Dimension | 420*250*250 mm |
| Weight | 2.8 kg |
