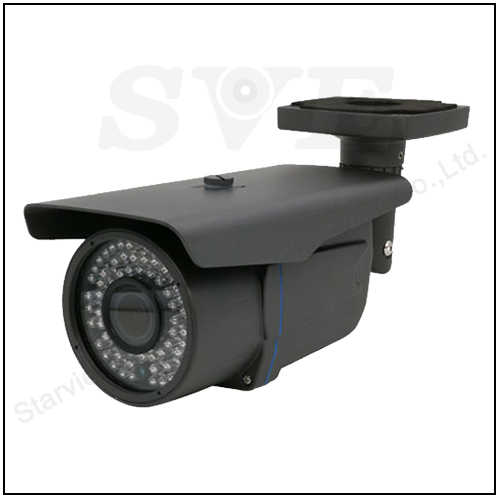

Motion Detection IP Poe CCTV Network Security Onvif IP66 IP Bullet Camera
Features:
Waterproof IR Bullet IP Camera
Water Resistance: IP66
IR LED: ¢5X42pcs, IR Range: 40M
Video Output: 1 x RJ45 port, wifi Optional
Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10ºC~ +60ºC
16PCS Per Carton
Size: 228mm x 97mm x 82mm
Weight: 1400g
Specifications
Waterproof IR Bullet IP Camera
Water Resistance: IP66
IR LED: ¢5X42pcs, IR Range: 40M
Video Output: 1 x RJ45 port, wifi Optional
Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10ºC~ +60ºC
16PCS Per Carton
Size: 228mm x 97mm x 82mm
Weight: 1400g
Specifications
| Model ID | SVN-WFV20C | SVN-WFV20X | SVN-WFV20T | SVN-WFV30C | SVN-WFV30X | SVN-WFV30T | SVN-WFV50P | SVN-WFV20CA | SVN-WFV20A |
| Description | Waterproof IR Bullet IP Camera,Water Resistance: IP66,IR LED: ¢5X42pcs, IR Range: 40M | ||||||||
| TV System | NTSC / PAL | ||||||||
| Video Output | 1 x RJ45 port | ||||||||
| Chipset Solution |
1/3" 2.0 MP CMOS Low illumination SC2235+HI3516EV100 |
1/3" 2.0 MP CMOS Low illumination SONY IMX323+ HI3516EV100 |
1/2.5"2.0MPCMOS Low illumination SONY IMX307+HI3516EV100 |
1/2.5" 3.0 MP CMOS Low illumination SC2235+Hi3516CV300 |
1/2.5" 3.0 MP CMOS Low illumination SONY IMX323+Hi3516CV300 |
1/2.5" 3.0 MP CMOS Low illumination SONY IMX291+Hi3516CV300 |
1/3" 5.0 MP CMOS Low illumination PS5239+Hi3516DV100 |
1/2.5" 2.0 MP CMOS Low illumination SC2235+Hi3516EV100 |
1/2.5"2.0 MPCMOS Low illumination SONY IMX323+Hi3516C |
| Resolution |
1080P@20fps, 720P@25fps |
1080P@20fps, 720P@25fps |
1080P@20fps, 720P@25fps |
3MP@25fps, 1080P@25fps |
3MP@25fps, 1080P@25fps |
3MP@25fps, 1080P@25fps |
5MP@15fps, 4MP@25fps |
1080P@25fps, 720P@25fps |
1080P@25fps, 720P@25fps |
| Effective Pixels | 1920(H)×1080(V) | 1920(H)×1080(V) | 1920(H)×1080(V) | 2048(H)×1536(V) | 2048(H)×1536(V) | 2048(H)×1536(V) | 2592(H)×1944(V) | 1920(H)×1080(V) | 1920(H)×1080(V) |
| Minimum Illumination | 0.001Lux | ||||||||
| Lens |
3MP 2.8-12mm Manual Zoom Lens |
3MP 2.8-12mm Manual Zoom Lens |
3MP 2.8-12mm Manual Zoom Lens |
5MP 2.8-12mm Manual Zoom Lens |
5MP 2.8-12mm Manual Zoom Lens |
5MP 2.8-12mm Manual Zoom Lens |
5MP 2.8-12mm Manual Zoom Lens |
3MP 2.8-12mm 4X motorized zoom lens (Auto focus) |
3MP 2.8-12mm 4X motorized zoom lens (Auto focus) |
| Sync,System | Internal Synchronization | ||||||||
| Network | 1 RJ45 Ethernet interface, 10/100M adaptation | ||||||||
| Video Compression | H.265 | H.264+ | |||||||
| Protocol | Support Gmail/GOOGLE/QQ/EMAIL | ||||||||
| Onvif | Support Onvif | ||||||||
| S/N Ratio | ≥ 58dB | ||||||||
| POE | Built-in PoE (Optional) | ||||||||
| OSD | YES | ||||||||
| WIFI | Optional | ||||||||
| Power Source | DC 12V/2A | ||||||||
| Consumption | <5W | ||||||||
| Operating Enviroment | -10ºC~60ºC / 10% ~ 95%RH | ||||||||
| Working Humidity | ≤90% | ||||||||
| Size(mm) | 228mm x 97mm x 82mm | ||||||||
| Weight(kg) | 1.4 kg | ||||||||
