Fixed Lens Dome

3 Inch Semi-Metal Dwdr OSD Utc BNC White 3D-Nr Noise Reduction Waterproof IR 30m Range NTSC / PAL Ahd/Tvi/Cvi IP65 Security Dome Camera

Features:

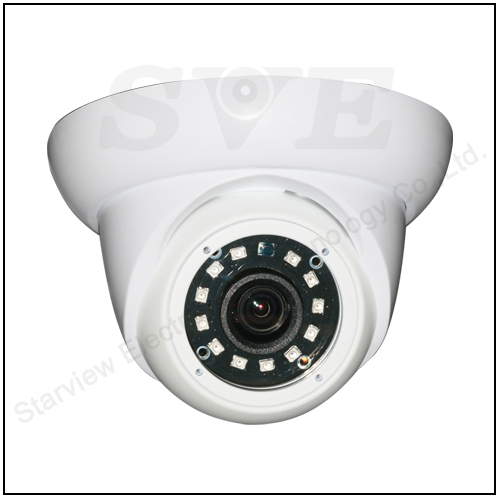

3'' Semi-metal IR Dome Camera
IR LED: 14μX12pcss, IR Range: 20M
24PCS Per Carton
Size: 110mm x 95mm
Weight: 450g

Specifications

Model ID	SV-WIHB20FHD	SV-WIHB20ZHD	SV-WIHB20THD	SV-WIHB40KHD	SV-WIHB40VHD	SV-WIHB50KHD	SV-WIHB50SHD	SV-WIHB80VHD
Description	3'' Semi-metal IR Dome Camera, IR LED: 14μX12pcss, IR Range: 20M
TV System	NTSC / PAL
Video Out	BNC 4 in 1(AHD, TVI, CVI, CVBS Switch by OSD)
Chipset Solution	1/2.7" 1080P 2MP CMOS Sensor F37 + XM330 Low illum	1/2.7" 1080P 2MP CMOS Sensor F33 + FH8536E Low illum	1/2.8" 1080P 2MP STARVIS CMOS Sensor SONY IMX307 + NVP2441H Low illum	1/2.7" 4MP CMOS Sensor Silicon K02 + FH8538M Low illum	1/3" 4MP CMOS Sensor OV4689 + FH8538M Low illum	1/2.7" 5MP CMOS Sensor Silicon K03 + FH8538M Low illum	1/2.9" 5MP CMOS Sensor SONY IMX335 + FH8558M Low illum	1/2.3" 4K(8MP) CMOS Sensor OV12895 + NVP2481 Low illum
Resolution	720P@ 25fps(PAL), 30fps(NTSC)	720P@ 25fps(PAL), 30fps(NTSC)		4MP @ 25fps(PAL), 30fps(NTSC)	4MP @ 25fps(PAL), 30fps(NTSC)	5MP @ 25fps(PAL), 30fps(NTSC)	5MP @ 25fps(PAL), 30fps(NTSC)	4K/8MP @ 15fps(PAL), 15fps(NTSC)
Effective Pixels	1920(H)×1080(V)	1920(H)×1080(V)	1920(H)×1080(V)	2560(H)×1440(V)	2560(H)×1440(V)	2592(H)×1944(V)	2592(H)×1944(V)	3840(H)×2160(V)
Minimum Illumination	0.001Lux
Lens	2.8/6/8mm Optional
Lens	3.6mm Board Lens
Sync,System	Internal Synchronization
Scanning System	2:1 Interface
Shutter Speed	1/60~1/100,000sec (N), 1/50~1/100,000sec (P)
S/N Ratio	≥ 58dB
DWDR	YES
OSD	NO	Optional	YES
UTC	YES
3D-NR	YES
Power Source	DC12V ±10%
Consumption	<5W
Operating Enviroment	-20ºC~60ºC / 10% ~ 95%RH
Working Humidity	≤90%
Size(mm)	110mm x 95mm
Weight(kg)	0.4 Kg
