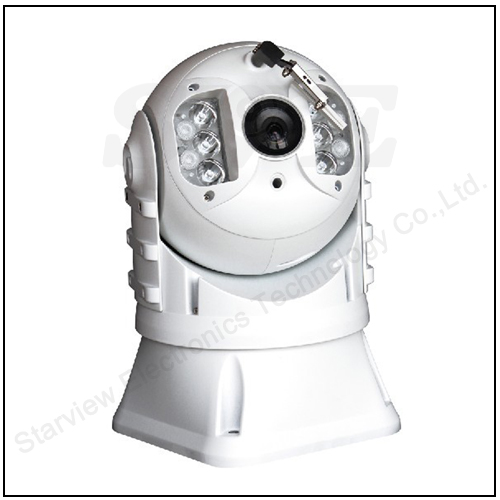

Surveillance 1080P 30X Zoom Security PTZ IP67 Vehicle CCTV Camera
- Aluminum PTZ case with high-strength
- Powerful AUX IR system, range up to 150 meters
- 30X optical zoom
- 360°continuous pan,-20°~90° tilt with"AUTO FLIP"
- All-day protective cover, built-in low-temperature
- 0.05°~100°/s pan speed, 0.05°~100°/s tilt speed
- Fastest Speed-up & Speed-down for tracking
- 255 presets, ±0.1° preset accuracy
- 6 Sequence with up to 18 presets
- Proportional Pan/Tilt Speed
| SVN-30SBP970 | |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| effective pixels | 1920*1080 |
| min illumination | Colour:0.005Lux@F1.6,B/W:0.0005Lux@F1.6 |
| White balance | AUTO/MANUAL/ATW/INDOOR/OUTDOOR |
| Focal length | F=4.5-135mm(F1.6 to 4.4) |
| Optical Zoom | 30X |
| view angle | 67.8°～2.77° |
| AGC | AUTO/MANUAL |
| S/N Ratio | ≥50dB |
| WDR | Support |
| Shutter time | 1/1～1/30000s |
| Pan&Tilt | |
| Pan Range | 360°endless |
| Pan Speed | 0.5°~80° |
| Tilt Range | -20°~90° |
| Tilt Speed | 0.5°~60° |
| Number of Preset | 255 |
| Patrol | 6 patrols, up to 18 presets per patrol |
| Pattern | 4 , with the total recording time not less than 10 minutes |
| Infrared | |
| IR Distance | 150m |
| Angle | Adjustable by zoom |
| RS-485 Protocols | Pelco-P, Pelco-D |
| Baud Rate | 2400bps, 4800bps, 9600bps, 19200bps (self-adaptive) |
| Video Output | BNC,RJ45 |
| Power Supply | DC 12V 2A |
| Power consumption | 30 W |
| Working Environment | -20 °C~65°C |
| Weight | 3.5 kg |
| Ingress Protection |
IP 67 |
