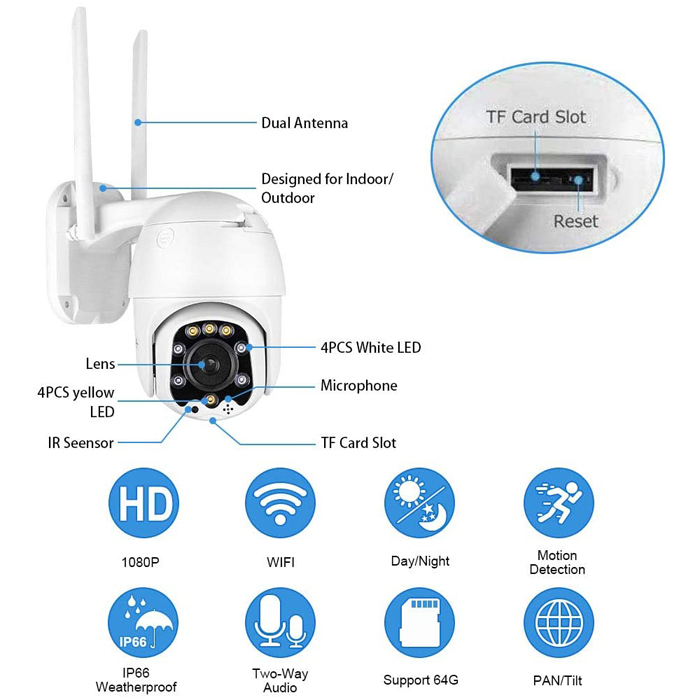

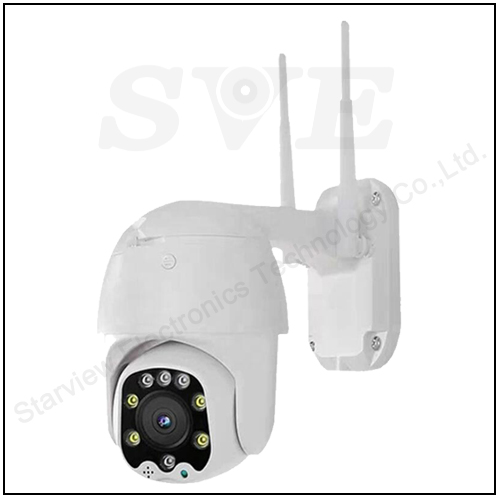

2.8 Inch 1080 IR/White Light IP Two-Way Audio PTZ Camera
Key Features
- Horizontal: 265°, Vertical: 90°, Support 8 preset points;
- 3.6mm Fixed lens,
- Double IR-CUT; 8 PCS IR/White light Distance: 30M
- Support ONVIF, Two-way Audio, Humanoid detection;
- H.265 video coding, supporting dual bit rate, 32Kbps~6Mbps
- Support multiple devices to watch one device at the same time
- Maximum 128G TF card storage
Technical parameters
| Model | |
| Model No. | SVN-SVN-Q6H20T31 |
| Camera | |
| Image sensor | SC2335+T31N |
| Resolution | 1080P,720P,VGA,QVGA |
| Frame rate | 20fps(PAL), 20fps(NTSC) |
| Min. Illumination | Color:0.1 Lux; Black:0.01Lux; |
| CMOS performance | Support ATW/automatic gain control/automatic BLC, Humanoid detection |
| Lens | 3.6mm |
| Audio | |
| Coding standard | AMR/G.711A |
| Audio input | built-in - 38dB microphone |
| Audio output | Built in speaker (8 Ω 1W) |
| Pan&Tilt | |
| Pan Range | 265° |
| Tilt Range | 90° |
| Preset | Support 8 preset points |
| TF Card | |
| Storage | Maximum support 128G |
| Recording | Timed recording, Alarm recording |
| Network | |
| Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET |
| Alarm | |
| Alarm method | Motion Detection |
| Alarm Output | APP push |
| General | |
| IR/White light Distance | 8 PCS IR/White light Distance: 30M |
| Power | DC12V 2A |
| Power consumption | Daytime: 5W, infrared activation at night: 8W |
| Working temperature | 0ºC~55ºC |
| Working humidity | 10 ~ 95%%RH |
| Waterproof | IP65 |

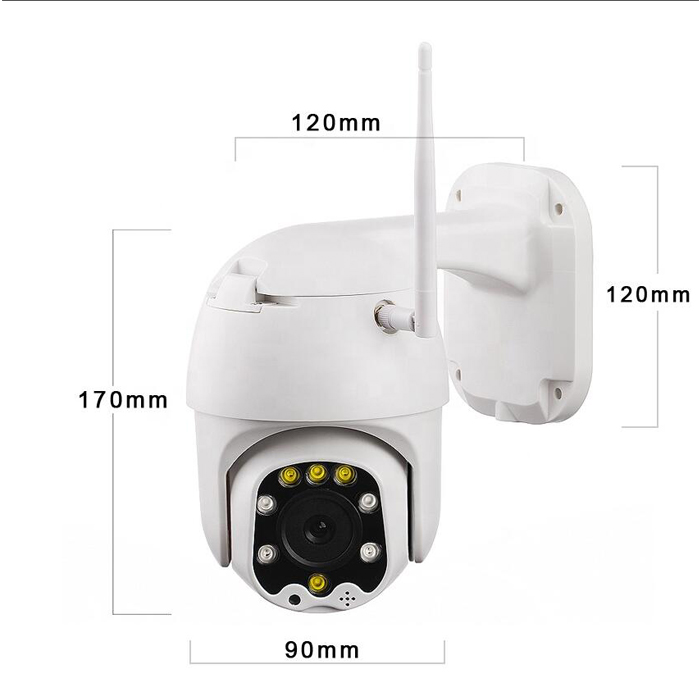

| Package Dimension | 200*198*120 mm |
| Weight | 0.8 kg |
