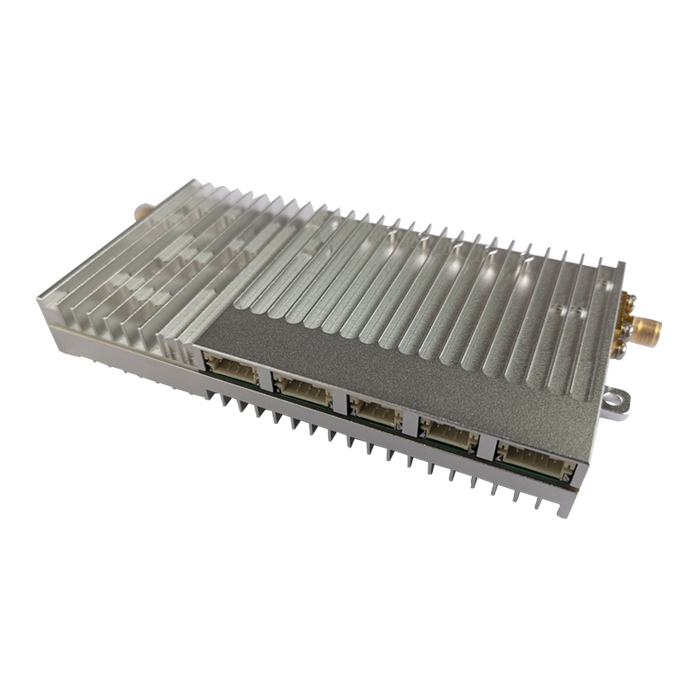

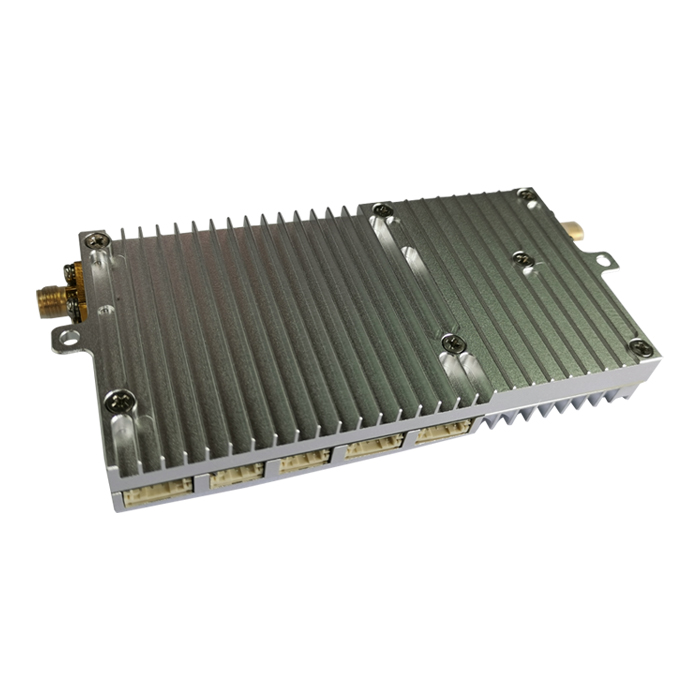

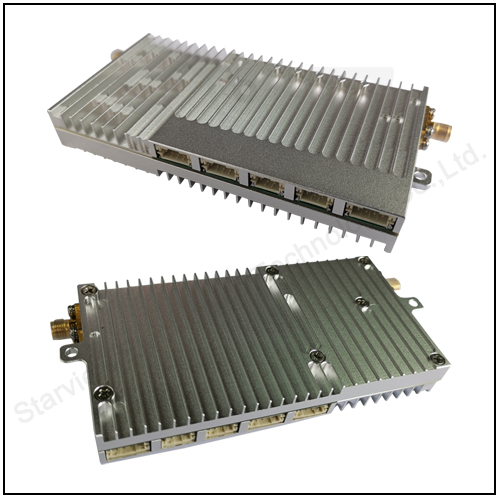

Tdd-Ofdm Wireless Nlos 30km Transmission Distance Date Image Stream Mini transmitter System
Key Features
System list

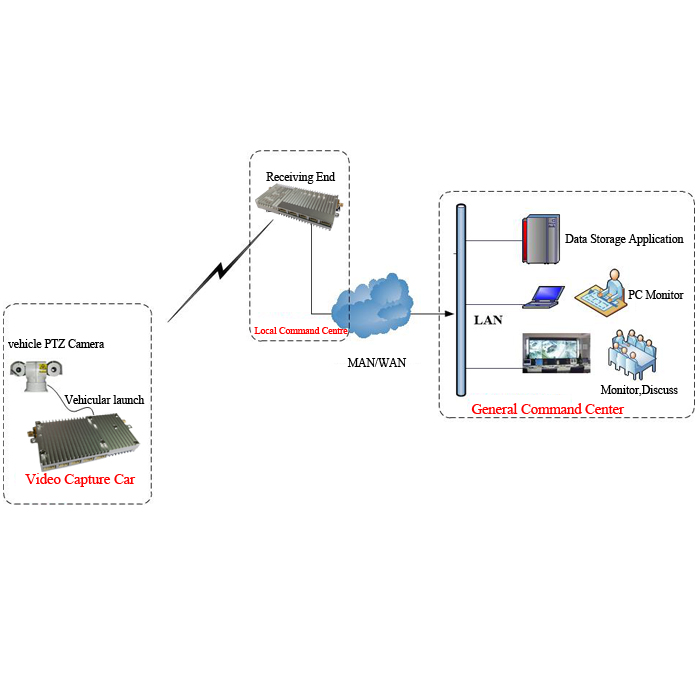

- Point to point and point to multipoint broadband and transparent data transmission equipment.
- OFDM (Orthogonal Frequency Division Multiplexing).
- MIMO (Multi-Input & Multi-Output), SDR (Software Defined Radio) and other technologies.
- Supports multiple bandwidth allocation (1.4/3/5/10/20MHz)

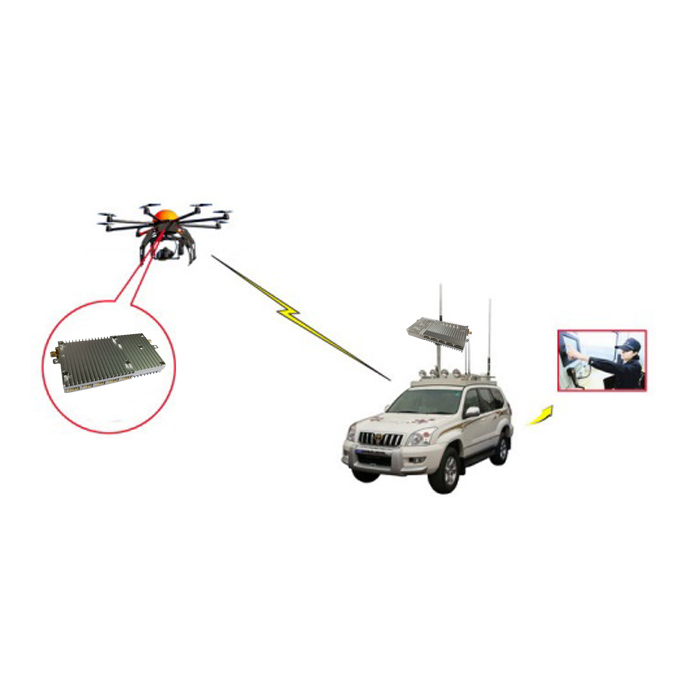

- Application: UAV, robot image data transmission
- Support in-band frequency hopping to reduce interference.
- Provide up to 30mbps data stream and adaptive dynamic code stream allocation technology.
- Support non line of sight (NLOS) high-speed mobile transmission.
Technical parameters
| Model | SV-D933LB |
| Working frequency | 806-826MHz / 1427.9-1447.9MHz |
| Modulation mode | TDD-OFMD |
| RF power | 33dBm |
| Channel bandwidth | 1.4/3/5/10/20MHz |
| Transmission mode | Full duplex |
| Receiving sensitivity | -103dBm@10MHz,-99dBm@20MHz |
| Support agreement | Transparent transmission |

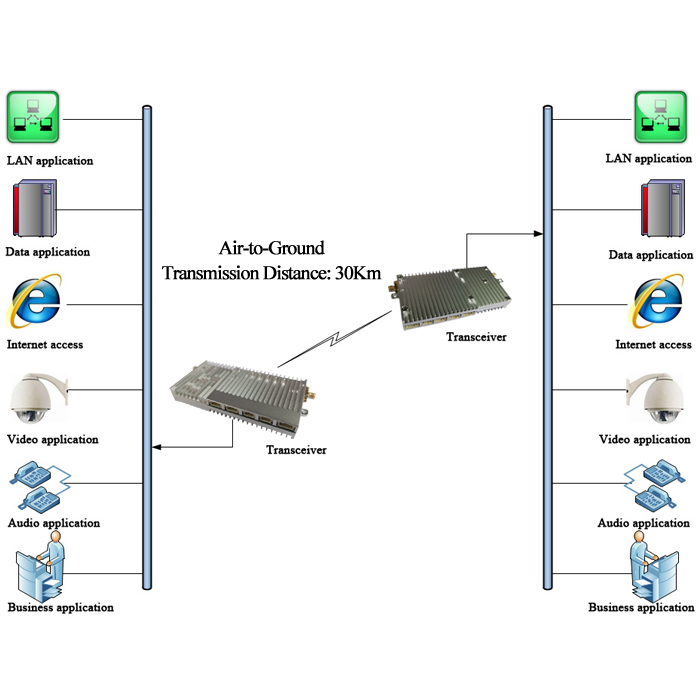

| Transmission distance | Air-to-Ground: 30 km, 15Km(Optional) |
| RF interface | SMA*2 |
| Interface | RS232*3, network (T+, T-, R+, R-)*2, Power interface *1 |
| Power supply | DC12V |
| Power consumption | 11W |
| Size | 127.9*59*15.6 mm |
| Weight | 115g |
System list
| Transceivers | *2 |
| Airborne Antennas (length 320mm) | *2 |
| Ground end Antenna(length 1200mm) | *2 |
| Power Cord | *2 |
| On-board Feeders (according to the actual length) | *2 |
| Ground Feeders (according to the actual length) | *2 |
